GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAME FIG.77 BODY MOUNTING FIG.78 FRONT HOOD PANEL FIG.79 FRONT FENDER FIG.80 FRONT BODY PANEL FIG.81 FLOOR PANEL FIG.82 SIDE BODY PANEL FIG.83 ROOF PANEL FIG.84 FRONT BUMPER FIG.85 REAR BUMPER FIG.86 INSTRUMENT PANEL FIG.87 VENTILATOR FIG.88 REAR AIR CON LOUVER FIG.89 HEATER FIG.90 HEATER BLOWER FIG.91 CONSOLE BOX FIG.92 FLOOR CARPET FIG.93 INTERIOR TRIM FIG.94 CAP/OVER FIG.95 FUEL LID OPENER FIG.96 ROOF LINING FIG.97 EMBLEM FIG.98 GARNISH FIG.99 SPLASH GUARD FIG.100 TIRE CARRIER FIG.101 WINDOW GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR PANEL FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 2ND SEAT FIG.114 3RD SEAT FIG.115 FUEL TANK FIG.116 JACK/TOOL FIG.117 FRONT AIR CONDITIONER FIG.118 REAR AIR CONDITIONER FIG.119 AIR CONDITIONER HARNESS

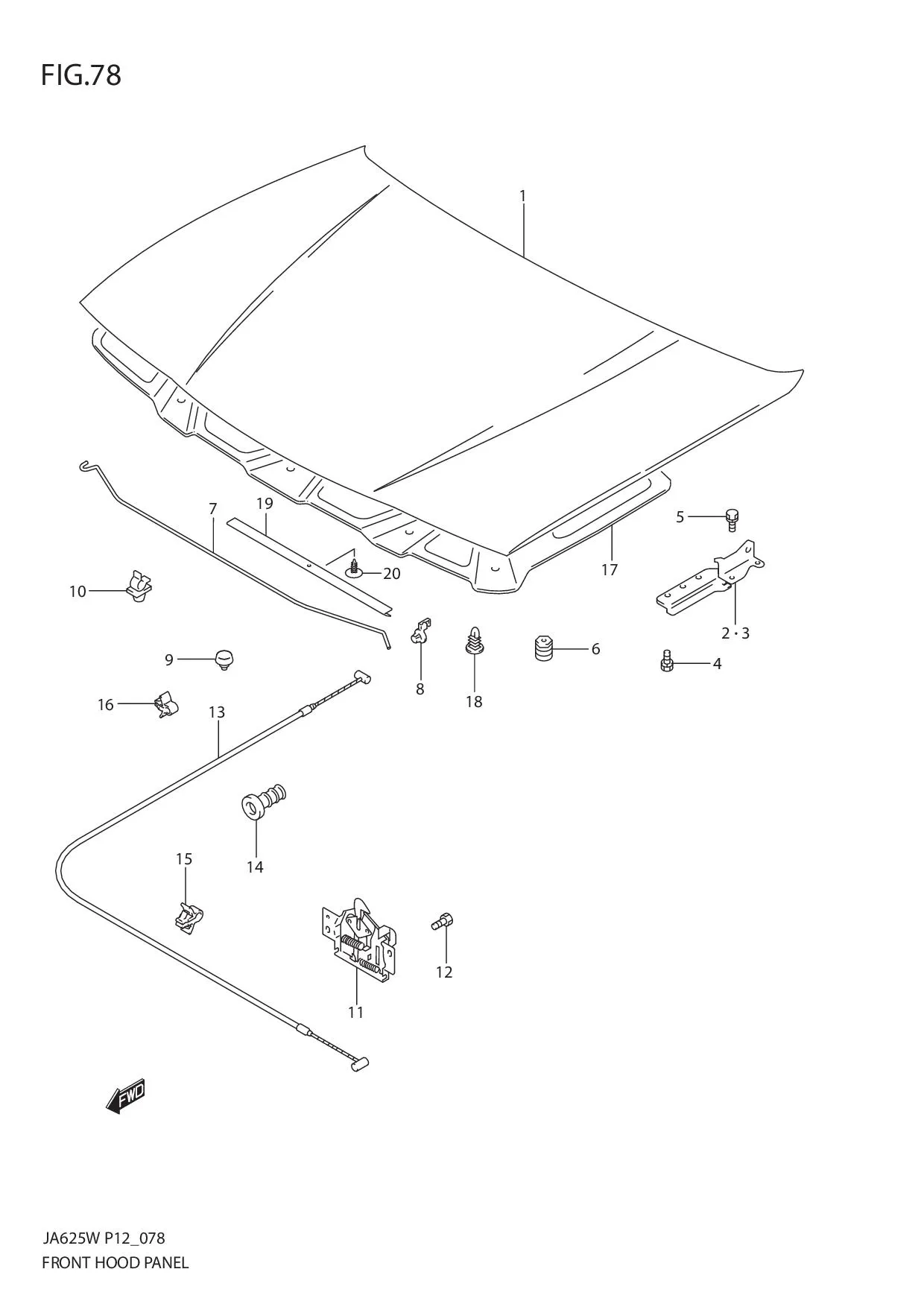

FIG.78 FRONT HOOD PANEL

FIG.78 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 58300-65810-000	PANEL SET, FR HOOD	1	-
2	58410-65D10-000	HINGE, FR HOOD RH	1	Rp641.500
3	58420-65D10-000	HINGE, FR HOOD LH	1	Rp535.500
4	01551-0816C-000 SUB: 01551-08163-000	BOLT	4	Rp13.500
5	02162-0616A-000 SUB: 02162-06163L000	SCREW	4	Rp3.000
6	72372-63J00-000 SUB: 72372B82000N000	CUSHION	2	Rp8.000
7	DISCONTINUE SUB: 72442-65D10-000	STAY, FRONT HOOD	1	-
8	09209-14001-000	LINKAGE	1	Rp21.000
9	72372-50E00-000	CUSHION	1	Rp54.500
10	09403M07311-000	CLAMP	1	Rp4.500
11	DISCONTINUE SUB: 82110-65D02-000	LATCH, HOOD	1	-
12	02162-0616A-000 SUB: 02162-06163L000	SCREW	2	Rp3.000
13	82160-65D00-000 SUB: 82160-65D00L000	CABLE, HOOD LATCH RELEASE	1	Rp48.000
14	82191-50E00-000	GROMMET, CABLE	1	Rp41.500
15	09403-08406-000	CLAMP	3	Rp22.500
16	09403-06412-000 SUB: 09403M06411-000	CLAMP	1	Rp16.500
17	75270-65D00-000	SILENCER, FR HOOD	1	Rp1.959.500
18	09409-06309-5ES	CLIP (BLACK)	12	Rp19.000
19	DISCONTINUE SUB: 72351-65D00-000	SEAL, FRONT HOOD	2	-
20	09409-04304-000	CLIP	2	Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
