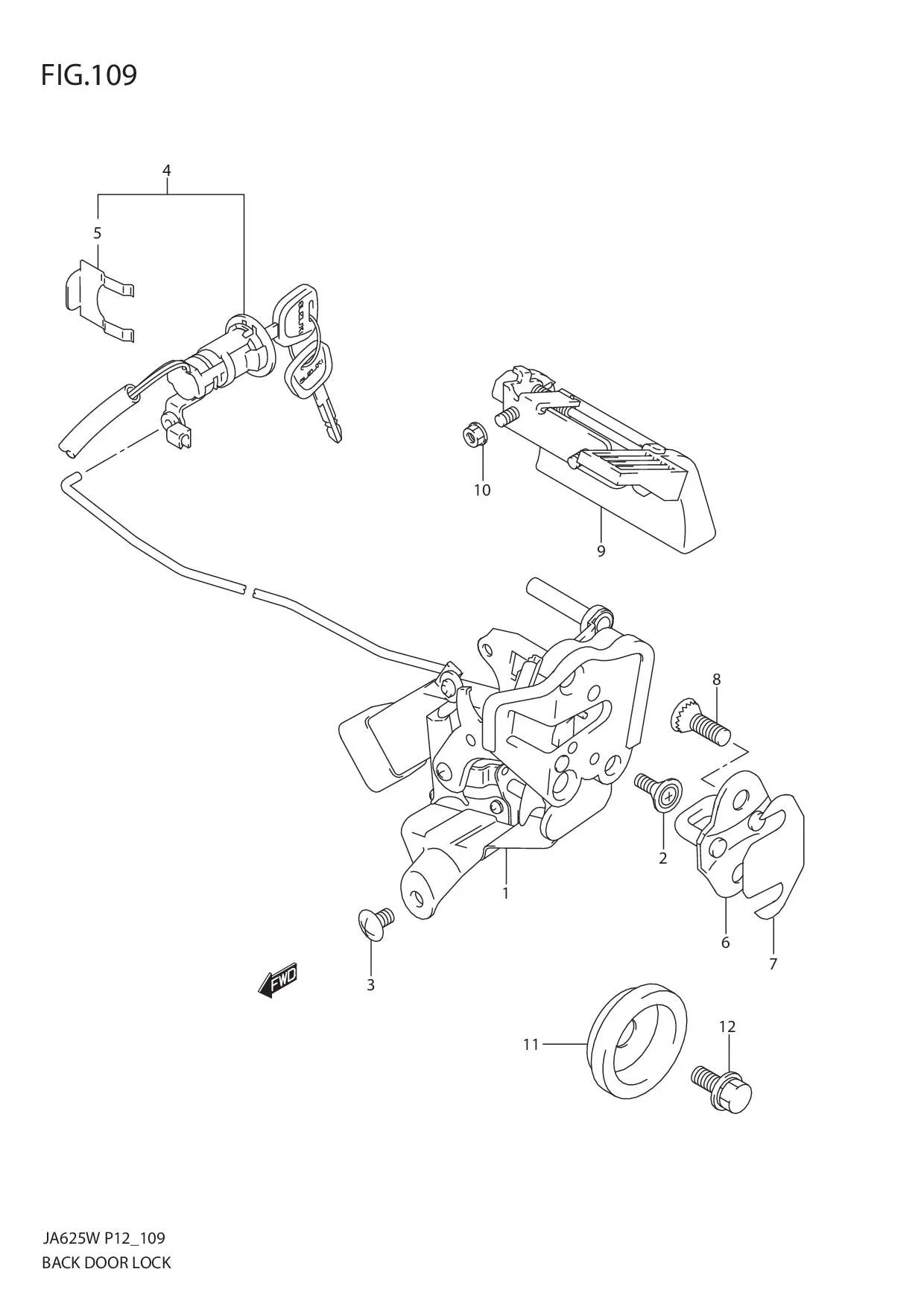

FIG.109 BACK DOOR LOCK

FIG.109 BACK DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82510-65D11-000 SUB: 82510-65D10-000	LATCH ASSY, BACK DOOR	1	Rp3.271.000
2	82581-52D02-000 SUB: 82581-52D00-000	SCREW	3	Rp44.500
3	02142-0610A-000 SUB: 02142-06103-000	SCREW	1	Rp3.500
4	82500-65860-000	CYLINDER, BACK DOOR LOCK	1	Rp906.500
5	DISCONTINUE SUB: 82291-52D00-000	•RETAINER	1	-
6	82610-60A01-000	STRIKER, DOOR LATCH	1	Rp171.000
7	78199M78000-000	SPACER	1	Rp8.000
8	09137-08014-000 SUB: 09137-08011-000	SCREW (8X18)	2	Rp23.000
9	82850-65D00-5PK	HANDLE, DOOR OUTER (BLACK)	1	Rp523.500
10	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000
11	82761-61A11-000 SUB: 82761-61A00-000	MALE, BACK DOOR STOP	1	Rp126.500
12	09118-08128-000	BOLT (8X16)	1	Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
