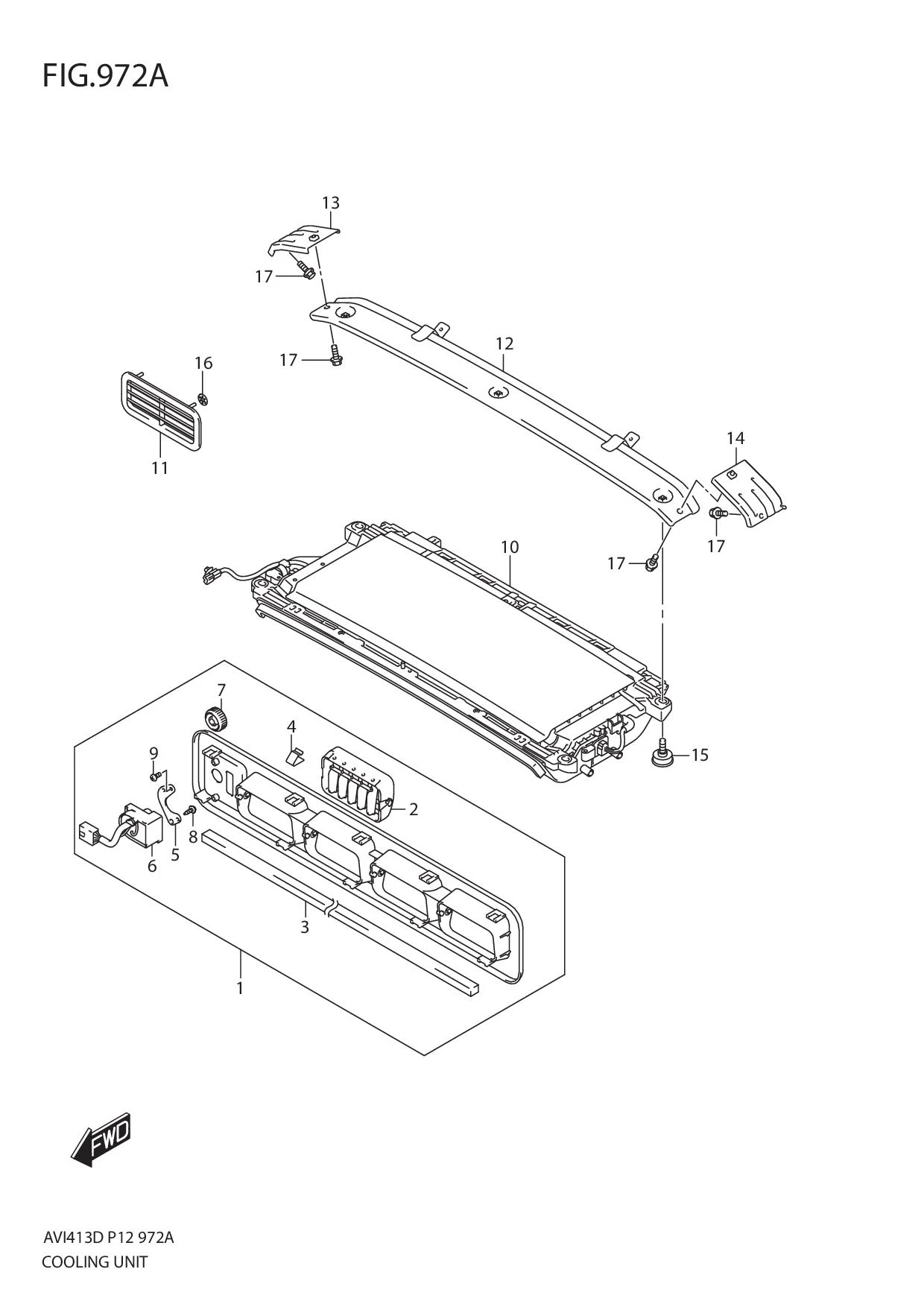

FIG.972A COOLING UNIT

FIG.972A COOLING UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610M60M00-V6N	LOUVER,REAR (BEIGE)	1	Rp291.000
2	73610-61J00-V6N SUB: 73610B61J00NV6N	•LOUVER,VENT (BEIGE)	4	Rp39.500
3	73613-60K00-000 SUB: 73613B60K00N000	•PACKING	2	Rp6.500
4	73614M60M00-000	•HOOK	10	Rp6.500
5	73624M60M00-000	•STAY,FAN SWITCH	1	Rp9.000
6	74430M70FB0-000	•SWITCH,BLOWER FAN	1	Rp148.500
7	74463M60M00-V6N	•KNOB,FAN SWITCH (BEIGE)	1	Rp33.500
8	02112-0308A-000 SUB: 02112B0308AN000	•SCREW	2	Rp4.500
9	03511-0406A-000 SUB: 03511B0406AN000	•SCREW	2	Rp5.500
10	95400M60M00-000	COOLING UNIT,REAR	1	Rp9.130.000
11	95426M60M00-V6N	GARNISH,AIR INLET (BEIGE)	4	Rp12.500
12	95491M60M00-000	MEMBER,COOLING UNIT	1	Rp196.000
13	95492M60M00-000	BRACKET,COOLING UNIT RH	1	Rp29.000
14	95492M60M10-000	BRACKET,COOLING UNIT LH	1	Rp29.000
15	95911M60M00-000	BOLT	5	Rp23.500
16	09148-05012-000	NUT	16	Rp14.500
17	01550-0812A-000	BOLT	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
