ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

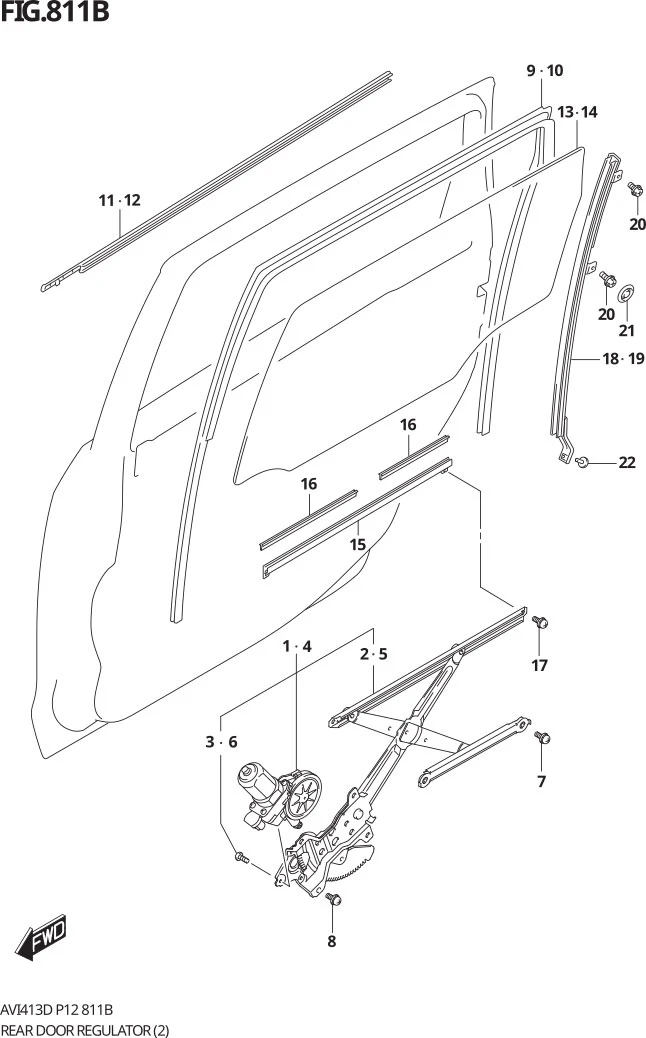

FIG.811B REAR DOOR REGULATOR (GL,GLX)

FIG.811B REAR DOOR REGULATOR (GL,GLX)
No No. Part Description Qty Price Per Pcs Remarks
1 83501-77MA0-000
SUB: 83501B77M01N000		 REGULATOR ASSY,WINDOW RH 1 Rp878.500
2 83510-77MA0-000
SUB: 83510B77M00N000		 •REGULATOR S/ASSY,WINDOW RH 1 Rp373.000
3 09139-05063-000 •SCREW (5X11) 3 Rp16.000
4 83502-77MA0-000
SUB: 83502B77M01N000		 REGULATOR ASSY,WINDOW LH 1 Rp878.500
5 83540-77MA0-000
SUB: 83540B77M00N000		 •REGULATOR S/ASSY,WINDOW LH 1 Rp373.000
6 09139-05063-000 •SCREW (5X11) 3 Rp16.000
7 02112M7610A-000 SCREW 4 Rp5.500
8 02112M7610A-000 SCREW 4 Rp5.500
9 83671-77M00-000
SUB: 83671B77M00N000		 RUN,GLASS RH 1 Rp268.500
10 83675-77M00-000
SUB: 83675B77M00N000		 RUN,GLASS LH 1 Rp268.500
11 83831-77M00-000
SUB: 83831B77M00N000		 WEATHERSTRIP,DOOR OUT RH 1 Rp64.000
12 83841-77M00-000
SUB: 83841B77M00N000		 WEATHERSTRIP,DOOR OUT LH 1 Rp64.000
13 84503-77M00-000
SUB: 84503B77M00N000		 GLASS,DOOR WINDOW RH (GREEN) 1 Rp334.000
14 84504-77M00-000
SUB: 84504B77M00N000		 GLASS,DOOR WINDOW LH (GREEN) 1 Rp334.000
15 83610-77A00-000 CHANNEL,REAR GLASS BOTTOM 2 Rp151.500
16 83691M76G00-000 RUBBER,GLASS BOTTOM 4 Rp8.000
17 02112M7610A-000 SCREW 4 Rp5.500
18 81770-77M00-000 SASH,REAR RH 1 Rp303.000
19 81780-77M00-000 SASH,REAR LH 1 Rp303.000
20 02162-0612A-000 SCREW 4 Rp11.000
21 09250-25007-000 CAP 2 Rp10.500
22 09122-76003-000 SCREW 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
