ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

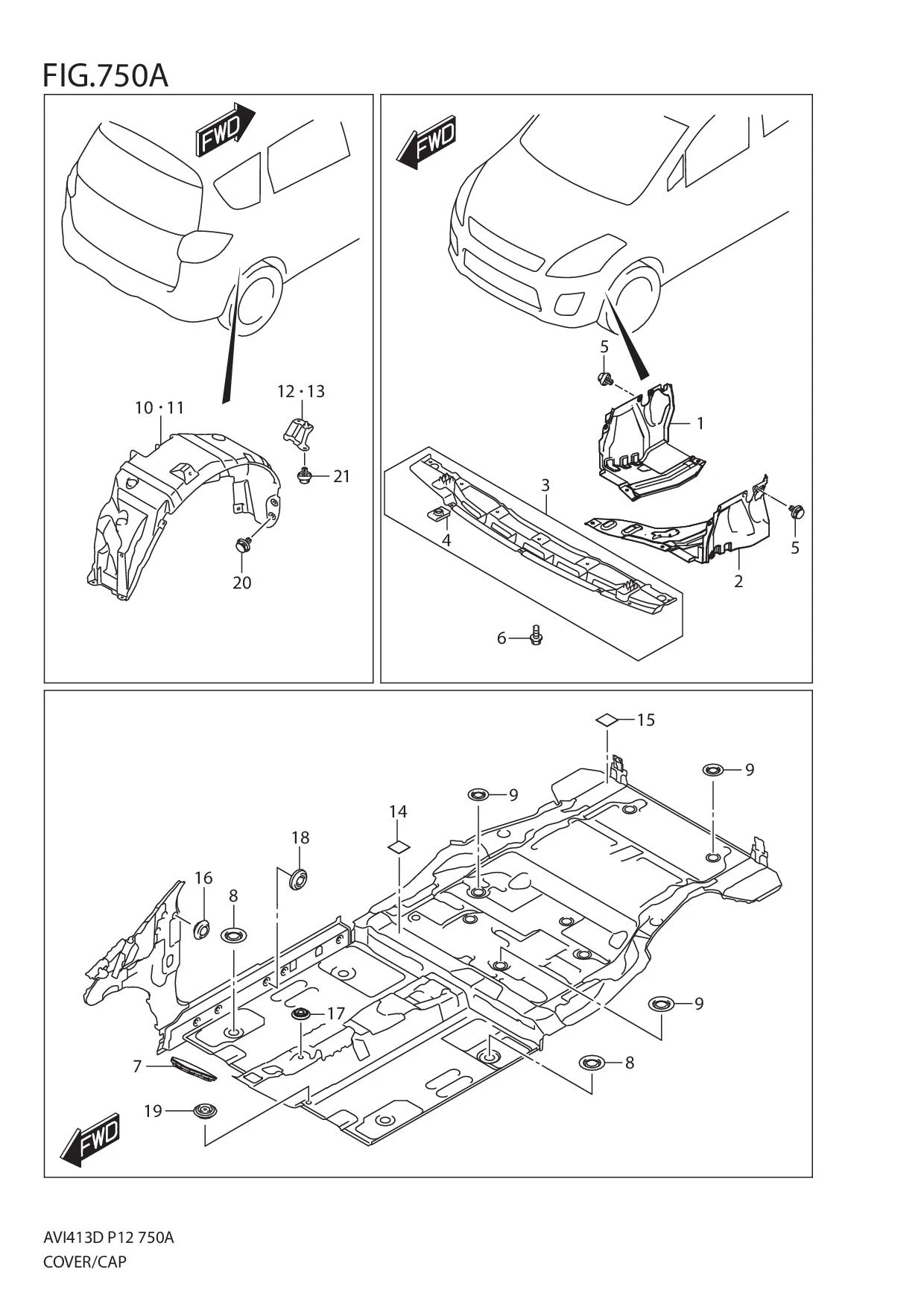

FIG.750A COVER/CAP

FIG.750A COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72411-74L00-000
SUB: 72411B74L00N000		 COVER,ENGINE UNDER RH 1 Rp96.000
2 72421-77M00-000
SUB: 72421B77M00N000		 COVER,ENGINE UNDER LH 1 Rp96.000
3 72460-60M00-000
SUB: 72460B60M00N000		 COVER COMP,FR BUMPER LOWER 1 Rp66.000
4 09148-05047-000
SUB: 09148B05047N000		 •NUT 3 Rp3.500
5 09409-07340-000 CLIP 11 Rp17.500
6 02162-0616A-000 BOLT 3 Rp3.000
7 DISCONTINUE
SUB: 75420B63J00N000		 CAP,DASH LOWER 2 -
8 75431-75J00-000
SUB: 75431B75J00N000		 CAP,MAIN FLOOR DRAIN 4 Rp8.000
9 75431-75J00-000
SUB: 75431B75J00N000		 CAP,REAR FLOOR DRAIN 6 Rp8.000
10 72811-60M00-000
SUB: 72811B60M00N000		 LINING,REAR FENDER RH 1 Rp395.000
11 72821-60M00-000
SUB: 72821B60M00N000		 LINING,REAR FENDER LH 1 Rp395.000
12 72812-60M00-000
SUB: 72812B60M00N000		 COVER,BRAKE PIPE RH 1 Rp9.000
13 72822-60M00-000
SUB: 72822B60M00N000		 COVER,BRAKE PIPE LH 1 Rp9.000
14 77151-82000-000
SUB: 77151B82000N000		 FILM,REAR FLOOR FRONT 2 Rp7.000
15 77151-82000-000
SUB: 77151B82000N000		 FILM,REAR FLOOR SIDE 4 Rp7.000
16 09250-15L02-000
SUB: 09250B15L02N000		 CAP (OD:23.5) 10 Rp5.500
17 09250-15L03-000
SUB: 09250B15015N000		 CAP (OD:23.5) 1 Rp5.500
18 09250M20031-000
SUB: 09250-20015-000		 CAP (OD:23.5) 12 Rp4.500
19 09250-25007-000 CAP (OD:25.0) 2 Rp10.500
20 09409-07340-000 CLIP 18 Rp17.500
21 09409-07340-000 CLIP 4 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
