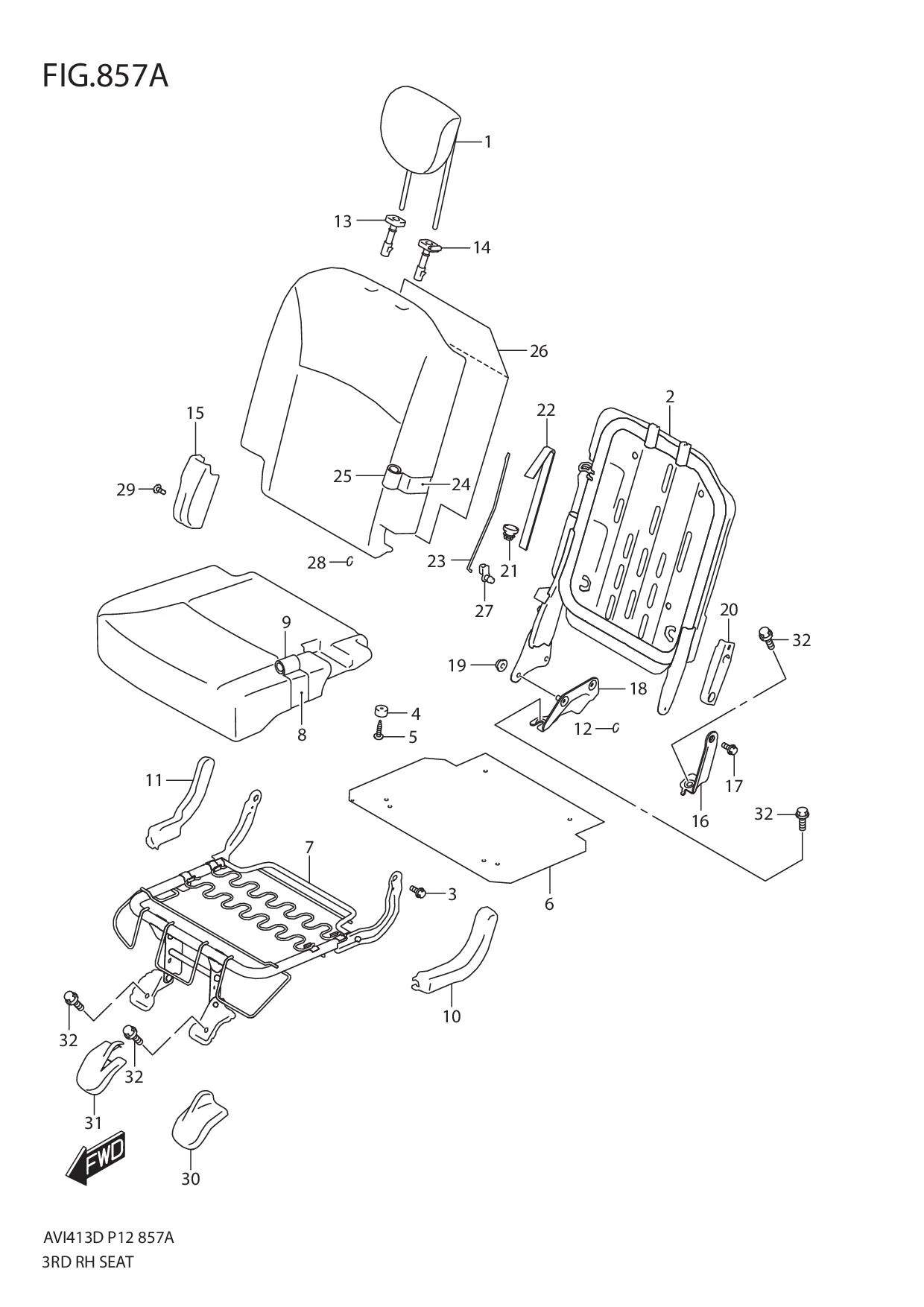

FIG.857A 3RD RH SEAT (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	86401M60M20-BU1	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp332.000
2	88310-58RA0-000	FRAME,3RD BACK RH	1	Rp1.033.000
3	87295-58R00-000	BOLT,CUSH STAY FIX	2	Rp8.000
4	87291-60A10-000	CUSHION,RR SEAT	1	Rp30.500
5	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
6	87163-78F00-000	SUPPORT,RR CUSH	1	Rp7.000
7	88103-58R00-000	FRAME ASSY,3RD CUSH RH	1	Rp2.897.000
8	88160-58RA0-000	PAD,3RD CUSH RH	1	Rp1.213.000
9	88180M58R00-BUZ	TRIM,3RD CUSH RH (BEIGE)	1	Rp495.500
10	88171-58R00-V6N	COVER,3RD STAY INSIDE RH (BEIGE)	1	Rp12.000
11	88172-58R00-V6N	COVER,3RD STAY OUTSIDE RH (BEIGE)	1	Rp66.000
12	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
13	85341-58RA1-V6N SUB: 85341-58RA0-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp10.500
14	DISCONTINUE SUB: 85840-58RA0-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	-
15	88221-58RA0-V6N	COVER,3RD LOCK UPR RH (BEIGE)	1	Rp12.000
16	88231-58R00-000	BRACKET,3RD BACK HINGE RH	1	Rp41.000
17	88296-58R00-000	BOLT,3RD BACK HINGE	1	Rp5.500
18	88232-58R00-000	BRACKET,3RD MTG OUTSIDE RH	1	Rp41.000
19	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
20	88241-58R00-V6N	COVER,3RD HINGE UPPER,RH (BEIGE)	1	Rp9.000
21	87319-67LA0-000 SUB: 87319B67LA0N000	BUSH,RR LOCK RELEASE ROD	1	Rp12.500
22	88211M58R00-V6N	BAND,3RD LOCK RELEASE (BEIGE)	1	Rp23.000
23	88215-58RA0-000	ROD,3RD LOCK RELEASE RH	1	Rp9.000
24	88360-58R00-000	PAD,3RD BACK RH	1	Rp1.224.500
25	88380M58R00-BUZ	TRIM,3RD BACK RH (BEIGE)	1	Rp624.000
26	88334-58R00-000	SILENCER,3RD BACK	1	Rp12.000
27	09403-04306-000	CLAMP	1	Rp24.000
28	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
29	03241-0510A-000	SCREW	1	Rp8.000
30	88491-58R00-R8R	COVER,3RD MTG INR RH (BEIGE)	1	Rp122.000
31	88493-58R00-R8R	COVER,3RD MTG OTR RH (BEIGE)	1	Rp122.000
32	01551-1020A-000	BOLT	5	Rp18.000
