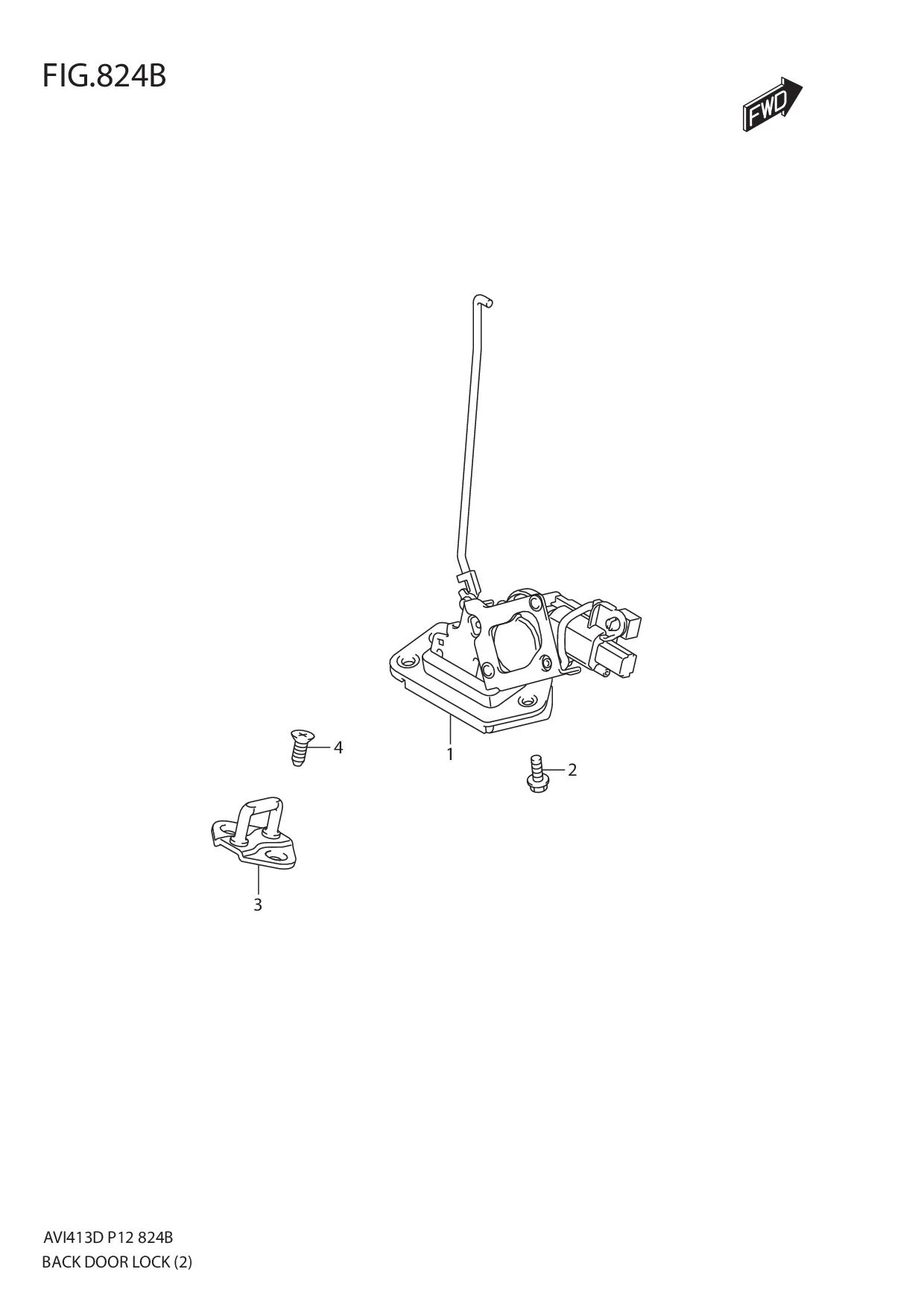

FIG.824B BACK DOOR LOCK (GL,GLX)

FIG.824B BACK DOOR LOCK (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82510M60M51-000 SUB: 82510M60M50-000	LATCH,BACK DOOR	1	Rp600.000
2	02162-0616A-000	SCREW	3	Rp3.000
3	82650M83E00-000 SUB: 82650M79J00-000	STRIKER,BACK DOOR LATCH	1	Rp54.000
4	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	2	Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
