ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

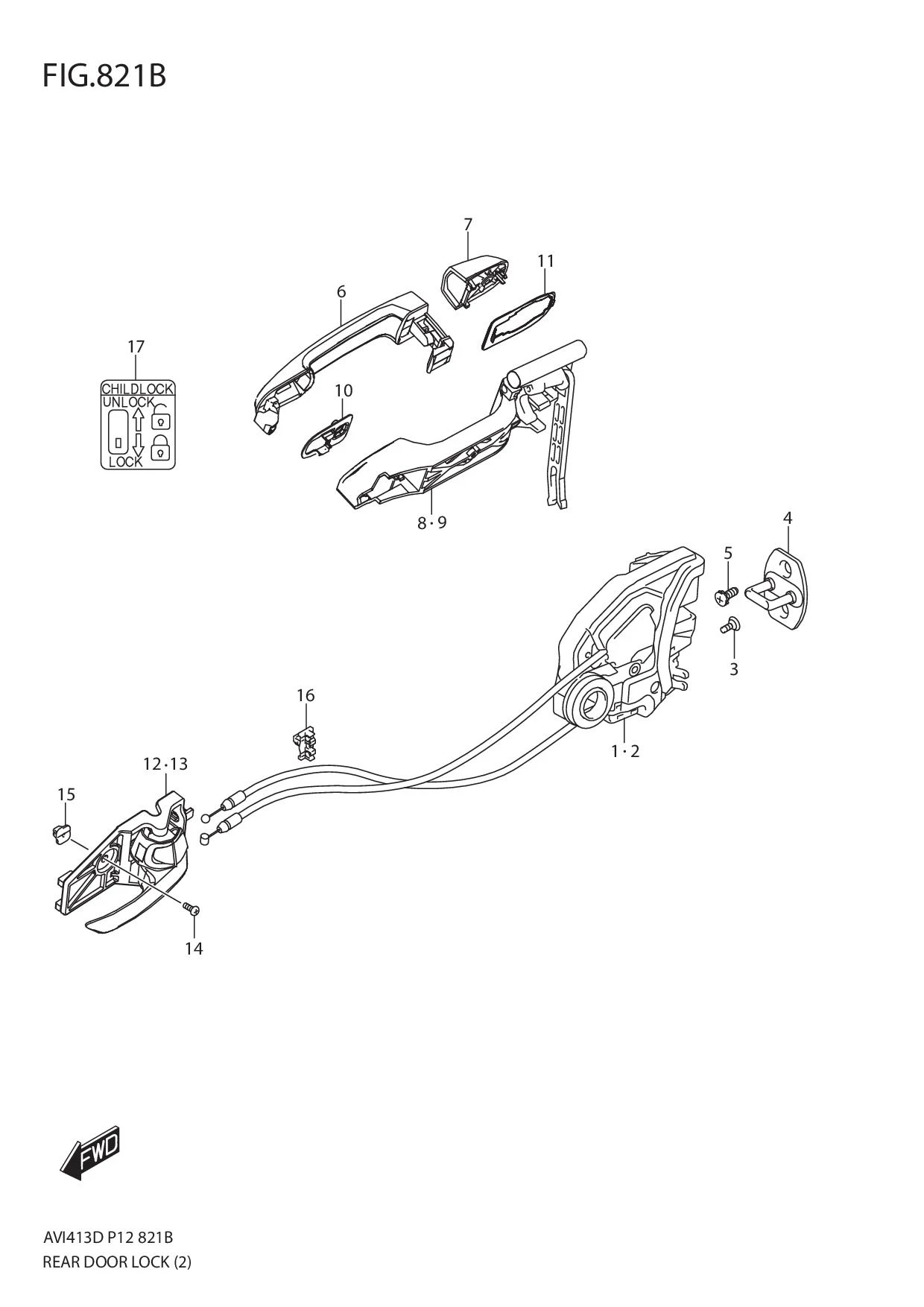

FIG.821B REAR DOOR LOCK (GL,GLX)

FIG.821B REAR DOOR LOCK (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301-77M53-000	LATCH ASSY,REAR DOOR RH	1	Rp253.500
2	82302-77M53-000	LATCH ASSY,REAR DOOR LH	1	Rp253.500
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	82610-61J00-000	STRIKER,DOOR LATCH	2	Rp19.500
5	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
6	82812-77M20-000	HANDLE,DOOR OUT	2	Rp96.000	PAINT TO MATCH
7	82833-77M20-000	CAP,DOOR OUT	2	Rp24.500	PAINT TO MATCH
8	82831-77M30-000	FRAME,DOOR OUT RH	1	Rp83.500
9	82841-77M30-000	FRAME,DOOR OUT LH	1	Rp86.500
10	82834-77M00-000 SUB: 82834B77M00N000	PAD,DOOR OUT	2	Rp13.000
11	82815-77M00-000 SUB: 82815B77M00N000	CUSHION,SIDE DOOR OUT	2	Rp5.500
12	83110M74L10-GMN	HANDLE ASSY,DOOR INSIDE RH (CHROME/BEIGE)	1	Rp103.000
13	83130M74L10-GMN	HANDLE ASSY,DOOR INSIDE LH (CHROME/BEIGE)	1	Rp103.000
14	09132-05058-000	SCREW (5X12)	2	Rp14.000
15	09148-05031-000	NUT	2	Rp18.000
16	83271M50E00-000	CLIP	2	Rp6.500
17	86951-54G00-000 SUB: 86951B54G00N000	PLATE,CHILD LOCK CAUTION DOOR	2	Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
