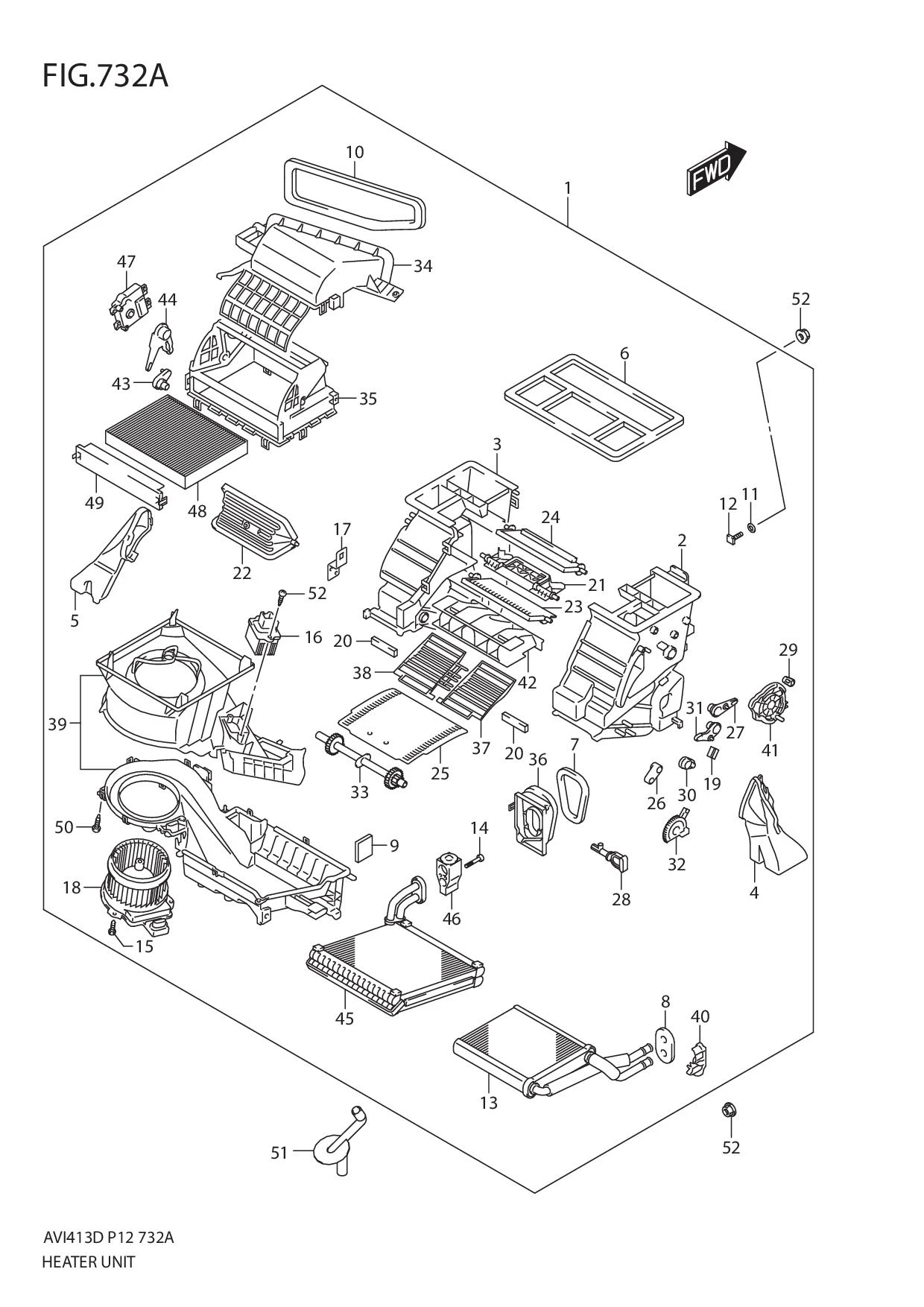

FIG.732A HEATER UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74100M58R31-000	HVAC UNIT	1	Rp8.500.000	GL,GLX
2	74111M83P00-000	•CASE,HTR	1	Rp246.500
3	74112M83P00-000	•CASE,HTR	1	Rp246.500
4	74114M79M00-000	•DUCT ASSY AIR	1	Rp35.500
5	74115M79M00-000	•DUCT ASSY AIR,L	1	Rp43.000
6	74116M79M00-000	•PACKING SET,FACE DFR	1	Rp41.000
7	74117M79M00-000	•PACKING	1	Rp41.000
8	74118-63J01-000	•PACKING,HTR PIPE	1	Rp74.000
9	74118M79M00-000	•PACKING	1	Rp5.000
10	74119-63J00-000 SUB: 74119B63J00N000	•PACKING,AIR INTK	1	Rp19.500
11	74119-78F10-000 SUB: 74119B78F10N000	•BUSH	5	Rp8.000
12	74119M79M00-000	•BOLT	5	Rp9.000
13	74120M83P00-000	•CORE ASSY,HTR	1	Rp1.291.000
14	74134-58J00-000 SUB: 74134B58J00N000	•BOLT	2	Rp14.000
15	74135-82000-000 SUB: 74135B82000N000	•SCREW,MOT	3	Rp19.500
16	74140M79M00-000	•RESISTOR BLO	1	Rp213.000
17	74145M60M60-000	•BRACKET	1	Rp9.000
18	74150M79M00-000	•MOTOR ASSY W/FAN	1	Rp1.421.000
19	74151M79M00-000	•LOCK,CLAMP	2	Rp10.500
20	74163M79M00-000	•PACKING HTR CASE	2	Rp8.000
21	74172M83P00-000	•DOOR ASSY	1	Rp45.500
22	74173M79M00-000	•DOOR ASSY,R/F	1	Rp54.000
23	74174M83P00-000	•DOOR ASSY,FOOT	1	Rp52.000
24	74176M83P00-000	•DOOR ASSY	1	Rp62.500
25	74178M79M00-000	•DOOR,A/M	1	Rp187.500
26	74191M83P00-000	•LEVER	1	Rp13.000
27	74192M83P00-000	•LEVER	1	Rp14.500
28	74193M66L00-000	•STOPPER	2	Rp37.500
29	74193M83P00-000	•LEVER	1	Rp13.000
30	74194M83P00-000	•LEVER	1	Rp12.000
31	74195M83P00-000	•LEVER	1	Rp15.000
32	74196M83P00-000	•LEVER	1	Rp52.000
33	74197M83P00-000	•SHAFT	1	Rp97.000
34	74213M83P00-000	•CASE,BLO,AIR INTK	1	Rp143.000	GL,GLX
35	74214M58R00-000	•CASE,BLO	1	Rp151.500
36	74215M79M00-000	•COVER TXV	1	Rp39.000
37	74218M79M00-000	•DUCT A/M	1	Rp19.000
38	74219M79M00-000	•DUCT A/M	1	Rp19.000
39	74220M79M00-000	•CASE,BLOWER UPR&LWR	1	Rp217.500
40	74221M79M20-000	•BRACKET HTR PIPE	1	Rp18.500
41	74222M83P00-000	•LEVER-PLATE	1	Rp18.000
42	74223M79M00-000	•DUCT,AIR	1	Rp33.000
43	74281M79M00-000	•LEVER	1	Rp11.000
44	74282M79M00-000	•LEVER,R/F MID	1	Rp11.000
45	95411M83P00-000	•EVAPORATOR ASSY	1	Rp842.000
46	95431M79M00-000	•VALVE EXPANSION	1	Rp994.000
47	95655M79M00-000	•SERVO ACC ASSY,F/R	1	Rp473.000
48	95850M79M00-000	•FILTER ASSY	1	Rp185.000
49	95861M79M00-000	•HOLDER ASSY FLTR	1	Rp104.000
50	03112-0416A-000	•SCREW	17	Rp23.500
51	95481M74L00-000	HOSE,DRAIN	1	Rp60.000
52	08361M2506A-000 SUB: 08361-2506A-000	NUT	6	Rp7.000
