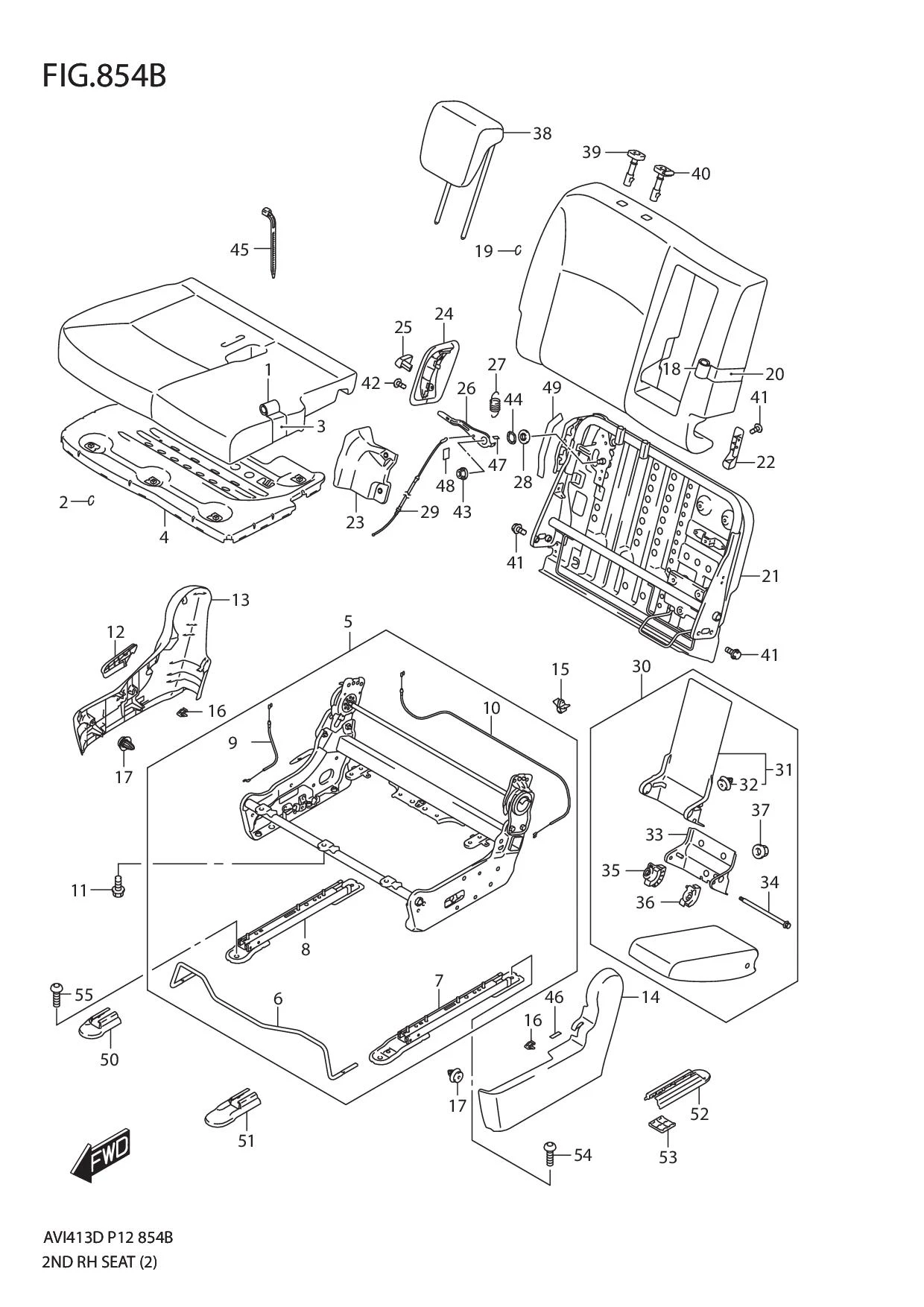

FIG.854B 2ND RH SEAT (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	87180M60M00-BUZ	TRIM,RR CUSHION RH (BEIGE)	1	Rp733.500
2	09387-19001-000	RING	3	Rp9.000
3	87160-60MA0-000 SUB: 87160B60MA0N000	PAD,RR CUSHION RH	1	Rp471.500
4	87110-60M00-000 SUB: 87110B60M00N000	PANEL,RR CUSHION RH	1	Rp559.000
5	86805-60M00-000	ADJUSTER ASSY,RR RH	1	Rp4.772.500
6	86781-60M20-000	•HANDLE,RR SEAT ADJUSTER RH	1	Rp175.000
7	86810-60M00-000	•ADJUSTER ASSY,RR INSIDE RH	1	Rp454.000
8	86830-60M00-000	•ADJUSTER ASSY,RR OUTSIDE RH	1	Rp422.000
9	87131-60M00-000	•CABLE,SLIDE RELEASE OUTSIDE	1	Rp53.500
10	87132-60M00-000	•CABLE,SLIDE RELEASE INSIDE RH	1	Rp71.000
11	01550-0812A-000	BOLT	5	Rp3.500
12	85211-58RA0-V6N SUB: 85211B68K00NV6N	KNOB,RECLINING RH (BEIGE)	1	Rp10.000
13	87221-60M00-V6N SUB: 87221-60MA0-V6N	COVER,RCLNG OUTSIDE RH (BEIGE)	1	Rp62.500
14	87241-60MA0-V6N SUB: 87241B60MA0NV6N	COVER,RCLNG INSIDE RH (BEIGE)	1	Rp64.000
15	76238M70F00-000	CLAMP,RELEASE CABLE FR	1	Rp5.000
16	09409-10308-000 SUB: 09409B10308N000	CLIP	2	Rp6.500
17	09409-10314-000	CLIP	4	Rp17.000
18	87380M60M10-BUZ	TRIM,RR BACK RH (BEIGE)	1	Rp689.000
19	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
20	87360-60M10-000 SUB: 87360B60M10N000	PAD,RR BACK RH	1	Rp1.659.500
21	87310-60MB0-000 SUB: 87310B60MB0N000	FRAME,RR BACK RH	1	Rp4.473.000
22	87333-60M00-V6N SUB: 87333B60M00NV6N	COVER,RR BACK RH (BEIGE)	1	Rp8.000
23	87319-60M00-000 SUB: 87319B60M00N000	COVER,WALKIN LEVER RH	1	Rp17.500
24	87331-60MA0-V6N SUB: 87331B60MA0NV6N	BEZEL,WALKIN RH (BEIGE)	1	Rp15.000
25	87332-60M00-V6N SUB: 87332B60M00NV6N	KNOB,WALKIN RH (BEIGE)	1	Rp5.500
26	87322-60M00-000 SUB: 87322B60M00N000	LEVER,WALKIN RH	1	Rp14.000
27	87323-60M00-000 SUB: 87323B60M00N000	SPRING,WALKIN LEVER	1	Rp5.500
28	87326-60M00-000 SUB: 87326B60M00N000	BUSH,WALKIN LEVER	1	Rp6.500
29	87133-60M00-000	CABLE,WALKIN	1	Rp82.000
30	87501M60M00-BU2	ARMREST ASSY,RR (BEIGE)	1	-
31	87542-60M00-V6N SUB: 87542B60M00NV6N	•COVER,RR ARMREST (BEIGE)	1	Rp45.000
32	09409-08331-000	••CLIP	3	Rp17.000
33	87520-60M00-000 SUB: 87520B60M10N000	•HINGE,RR ARMREST	1	Rp123.500
34	DISCONTINUE SUB: 87541B60M00N000	•BOLT,RR ARMREST	1	-
35	87543-60M00-000 SUB: 87543B60M00N000	•BUSH,RR ARMREST RH	1	Rp9.500
36	87544-60M00-000 SUB: 87544B60M00N000	•BUSH,RR ARMREST LH	1	Rp9.500
37	08316-1008A-000 SUB: 08316B1008AN000	NUT	3	Rp3.500
38	86401M60M10-BU1	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp273.000
39	DISCONTINUE SUB: 85341-63J10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	-
40	85840-63J10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp87.000
41	01550-1020A-000	BOLT	4	Rp21.000
42	03241-0508A-000	SCREW	2	Rp10.500
43	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
44	09164-22012-000	WASHER	1	Rp28.500
45	36990-25G00-000 SUB: 09407-14403L000	CLAMP	1	Rp13.000
46	87329-60M10-000 SUB: 87329B60M10N000	SILENCER,RR CUSHION	1	Rp11.000
47	87329-60M00-000 SUB: 87329B60M00N000	SILENCER,RR BACK	1	Rp11.000
48	87337M60M00-000	SILENCER,RR BACK NO.2	1	Rp10.500
49	88327-60M10-000 SUB: 88327B60M10N000	PAD,2ND BACK SILENCER	1	Rp6.500
50	87491-60M00-V6N SUB: 87491B60M00NV6N	COVER,RR MTG OUTSIDE (BEIGE)	1	Rp117.500
51	87492-60M00-V6N SUB: 87492B60M00NV6N	COVER,RR MTG INSIDE (BEIGE)	1	Rp118.500
52	87494-60M00-V6N SUB: 87494B60M00NV6N	COVER,RR MTG (BEIGE)	2	Rp108.500
53	87495-60M00-V6N SUB: 87495B60M00NV6N	COVER,RR MTG LOWER (BEIGE)	2	Rp87.000
54	87493-60M00-000	BOLT,RR MTG	2	Rp23.000
55	87493-60M00-000	BOLT,RR MTG	2	Rp23.000
