ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

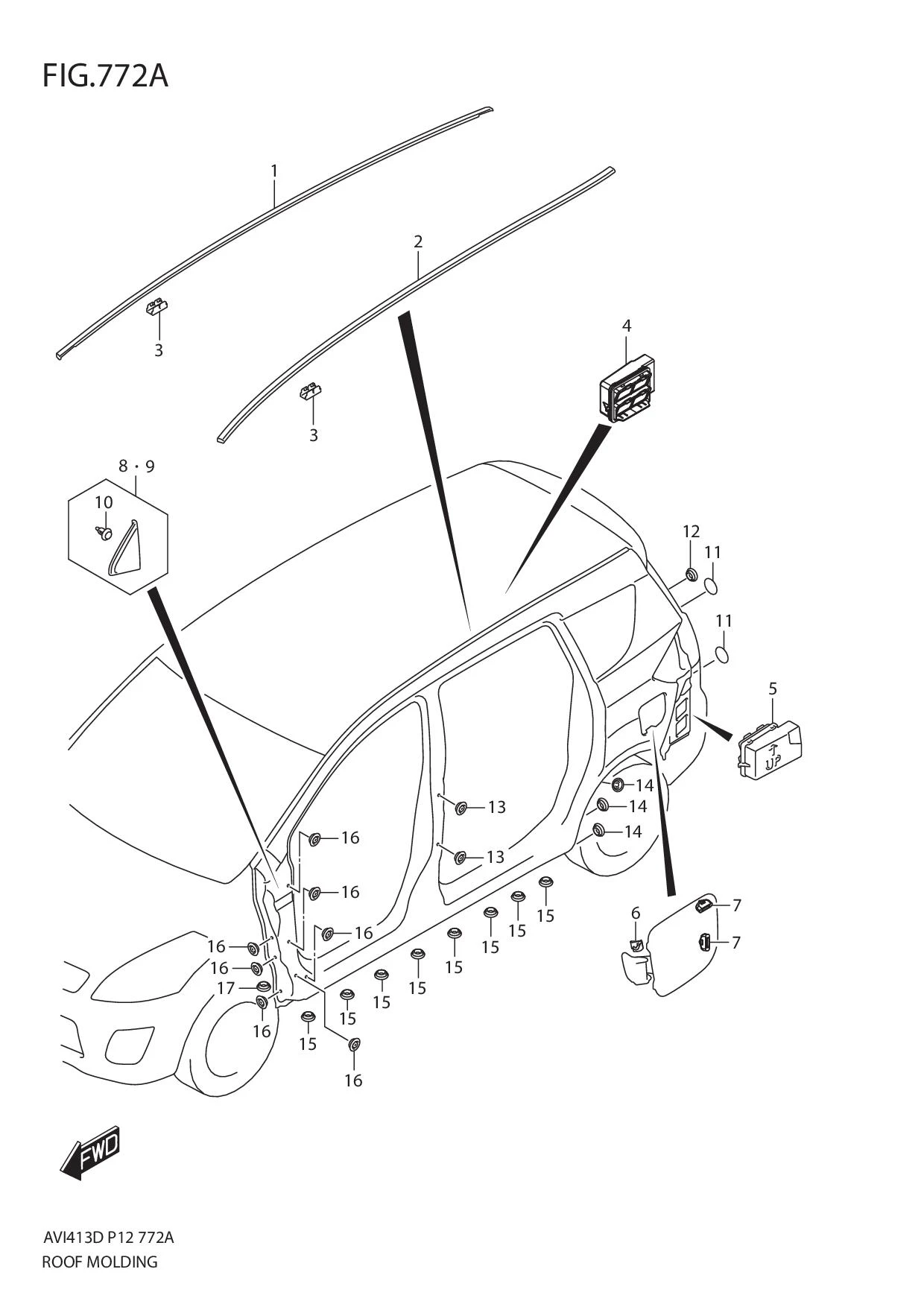

FIG.772A ROOF MOLDING

FIG.772A ROOF MOLDING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	78131-77M00-000 SUB: 78131B77M00N000	MOLDING,ROOF RH	1	Rp92.000
2	78141-77M00-000 SUB: 78141B77M00N000	MOLDING,ROOF LH	1	Rp92.000
3	78155-58J10-000	CLIP,ROOF MOLDING	4	Rp46.500
4	77330-77M21-000	OUTLET,VENTILATOR	1	Rp35.000	RH
5	77330-77M11-000	OUTLET,VENTILATOR	2	Rp35.000	LH
6	77121-63J00-000	SPRING,FUEL LID	1	Rp49.500
7	77116M60B00-000	CUSHION,FUEL LID	2	Rp11.500
8	77180-77M00-5PK SUB: 77180B77M00N5PK	GARNISH,FR PILLAR OUTER RH (BLACK)	1	Rp170.000
9	77190-77M00-5PK SUB: 77190B77M00N5PK	GARNISH,FR PILLAR OUTER LH (BLACK)	1	Rp170.000
10	09409-11L01-000 SUB: 09409B11L01N000	•CLIP	4	Rp10.000
11	77191-64L00-000	FILM,BACK DOOR CUSHION	4	Rp30.500
12	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
13	09250-10L02-000	CAP (OD:16.2)	4	Rp5.500
14	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	6	Rp5.500
15	09250-15L03-000 SUB: 09250B15015N000	CAP (OD:23.5)	16	Rp5.500
16	09250-17L01-000 SUB: 09250B17L01N000	CAP (OD:25.5)	14	Rp6.500
17	72397-58J00-000	CAP,DASH LOWER	2	Rp39.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
