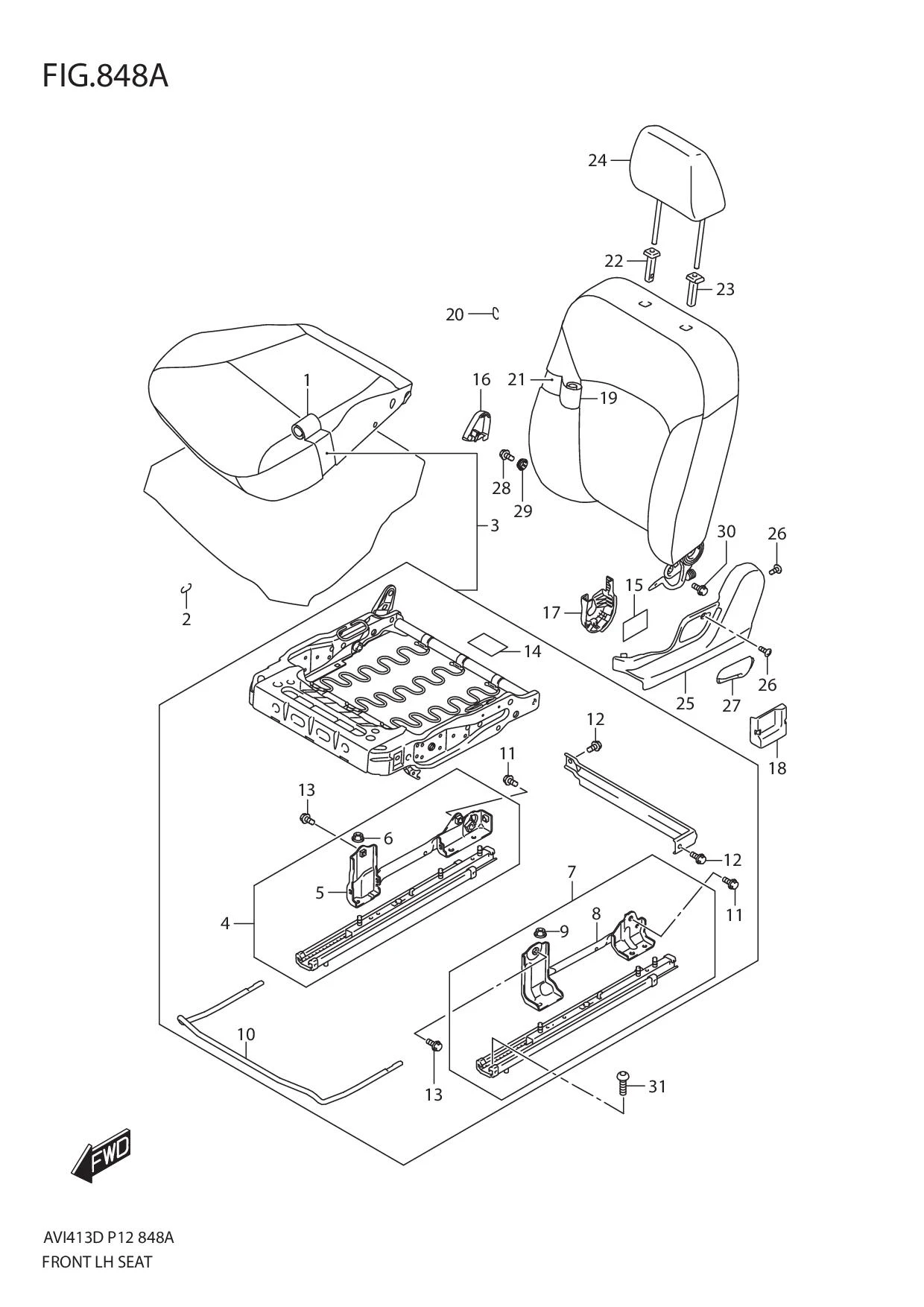

FIG.848A FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85680M60M00-BUZ	TRIM,FR CUSHION LH (BEIGE)	1	Rp687.500	GL,GLX
2	09387-19001-000	RING	11	Rp9.000
3	85106M60M00-000	CUSHION SUB ASSY,FR LH	1	Rp3.442.000
4	86602M60M00-000	•ADJUSTER SUB ASSY,INSIDE LH	1	Rp789.000
5	86720M60M00-000	••RISER,INSIDE LH	1	Rp200.000
6	08316-1008A-000	••NUT	3	Rp3.500
7	86604M60M00-000	•ADJUSTER SUB ASSY,OUTSIDE LH	1	Rp660.000
8	86740M60M00-000	••RISER,OUTSIDE LH	1	Rp176.500
9	08316-1008A-000	••NUT	3	Rp3.500
10	86691M60M20-000 SUB: 86691M60M00-000	•HANDLE,FR SEAT ADJUSTER	1	Rp173.000
11	01550-0816A-000 SUB: 01550B0816AN000	•BOLT	2	Rp6.000
12	01550-0816A-000 SUB: 01550B0816AN000	•BOLT	2	Rp6.000
13	01550-1035A-000 SUB: 01550B1035AN000	•BOLT	2	Rp5.500
14	85169M60M00-000	•SILENCER,FR CUSHION	2	Rp38.000
15	85169M60MA0-000	TAPE,FR CUSHION SIDE	2	Rp12.500
16	85241M75L00-V6N	COVER,FR HINGE OUTSIDE (BEIGE)	1	Rp13.000
17	85242M75L00-V6N	COVER,FR BACK FRAME LH (BEIGE)	1	Rp17.000
18	85724M60M00-V6N	COVER,FR RISER INSIDE LH (BEIGE)	1	Rp14.500
19	85880M60M10-BUZ	TRIM,FR BACK LH (BEIGE)	1	Rp680.000	GL,GLX
20	09387-19001-000	RING	6	Rp9.000
21	85306M60M20-000	BACK SUB ASSY,FR LH	1	Rp1.802.500	GLX
22	85341M75J00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp6.500
23	85840M75J00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp6.500
24	86401M83K00-BU1	HEADRESTRAINT ASSY (BEIGE)	1	Rp277.500	GL,GLX
25	85721M60M00-V6N	COVER,OUTSIDE LH (BEIGE)	1	Rp92.000
26	03241-0510A-000	SCREW	2	Rp8.000
27	85711M68K00-V6N	KNOB,RECLINING LH (BEIGE)	1	Rp11.500
28	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
29	85295-58J01-000	BUSH,CUSHION STAY FIX	1	Rp34.000
30	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
31	09119-08102-000	BOLT	4	Rp33.000
