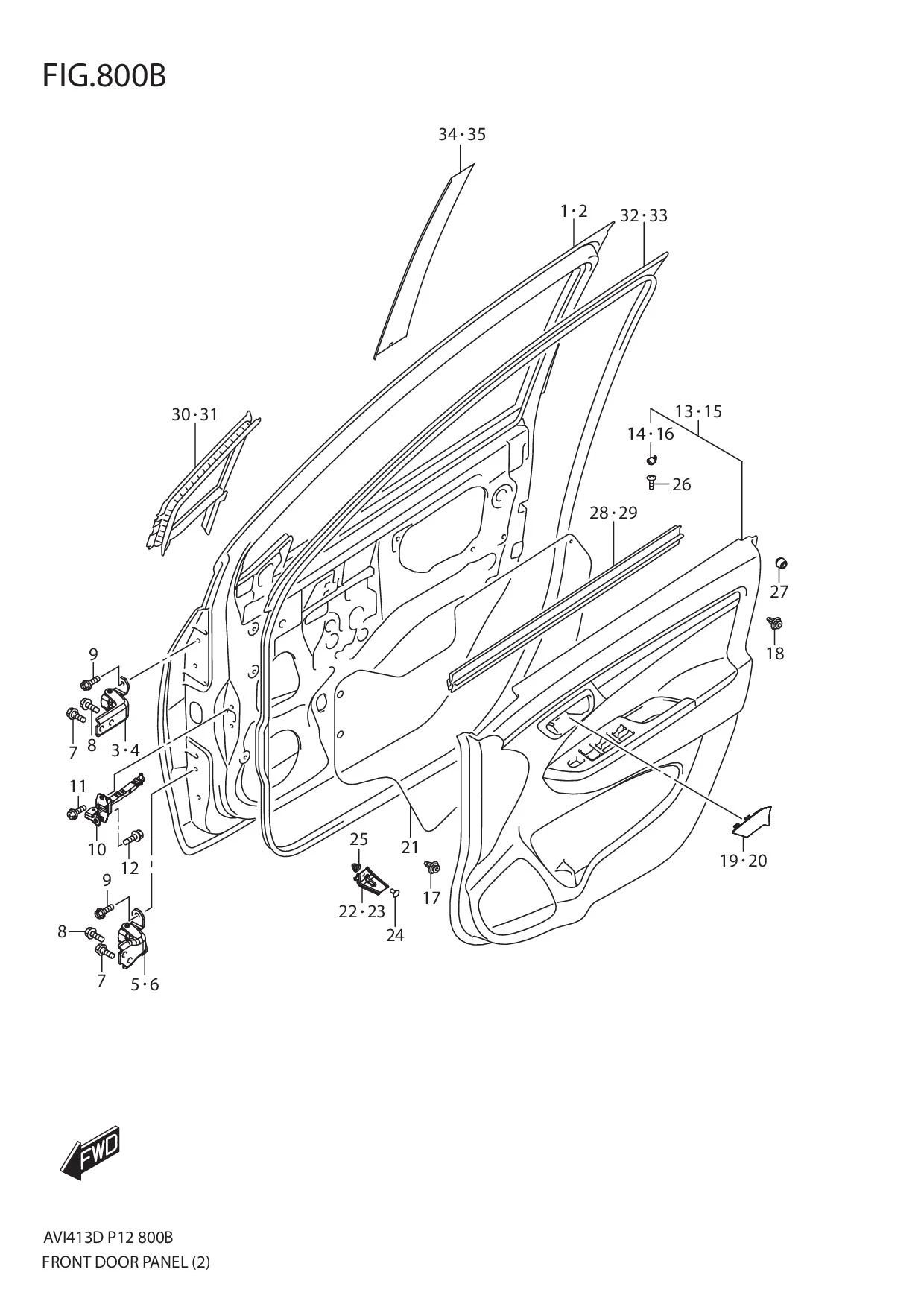

FIG.800B FRONT DOOR PANEL (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	68001-77M00-000 SUB: 68001B77M00N000	PANEL ASSY,FRONT DOOR RH	1	Rp2.806.000
2	68002-77M00-000 SUB: 68002B77M00N000	PANEL ASSY,FRONT DOOR LH	1	Rp2.806.000
3	69310M68L00-000 SUB: 69310-68LB0-000	HINGE,FRONT DOOR UPPER RH	1	Rp82.500
4	69320M68L00-000 SUB: 69320-68LB0-000	HINGE,FRONT DOOR UPPER LH	1	Rp82.500
5	69330M68L00-000 SUB: 69330-68LB0-000	HINGE,FRONT DOOR LOWER RH	1	Rp74.000
6	69340M68L00-000 SUB: 69340-68LB0-000	HINGE,FRONT DOOR LOWER LH	1	Rp74.000
7	09113-08001-000	BOLT (8X20)	4	Rp18.500
8	01550-0820A-000 SUB: 01550B0820AN000	BOLT	4	Rp5.500
9	09103-08546-000	BOLT (8X24)	8	Rp26.500
10	81810M75J03-000 SUB: 81810M75J02-000	STOP,FRONT DOOR OPEN	2	Rp72.000
11	09122-86004-000	SCREW (6X20)	4	Rp15.000
12	09112-08015-000	SCREW (8X25)	2	Rp32.000
13	83710M60MA0-BU6	TRIM,FRONT DOOR RH (BEIGE/SILVER)	1	Rp1.337.500
14	83752-80J00-V6N	•CAP,INSIDE PULL CASE (BEIGE)	1	Rp58.000
15	83720M60MA0-BU6	TRIM,FRONT DOOR LH (BEIGE/SILVER)	1	Rp1.337.500
16	83720-77MA0-BQ5	•CAP,INSIDE PULL CASE (BEIGE)	1	Rp756.500
17	09409-10327-000 SUB: 09409B10312N000	CLIP	14	Rp5.000
18	09409-06314-V6N	CLIP (BEIGE)	2	Rp19.500
19	83755-74L00-V6N SUB: 83755B74L00NV6N	CAP,SIDE DR INSIDE HDL BEZEL RH (BEIGE)	1	Rp86.500
20	83756-74L00-V6N SUB: 83756B74L00NV6N	CAP,SIDE DR INSIDE HDL BEZEL LH (BEIGE)	1	Rp85.500
21	83911-60M00-000 SUB: 83911B60M00N000	COVER,DOOR SEALING	2	Rp12.000
22	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET,DOOR TRIM RH	1	Rp8.000
23	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET,DOOR TRIM LH	1	Rp8.000
24	03241M0612A-000	SCREW	2	Rp6.500
25	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
26	09132-05058-000	SCREW (5X12)	2	Rp14.000
27	82711-65J00-000	STOPPER,DOOR	4	Rp34.000
28	83851-77M00-000 SUB: 83851B77M00N000	WEATHERSTRIP,DOOR INNER RH	1	Rp64.000
29	83861-77M00-000 SUB: 83861B77M00N000	WEATHERSTRIP,DOOR INNER LH	1	Rp64.000
30	84614-77M00-000 SUB: 84614B77M00N000	WEATHERSTRIP,FR DOOR FR RH	1	Rp83.500
31	84615-77M00-000 SUB: 84615B77M00N000	WEATHERSTRIP,FR DOOR FR LH	1	Rp83.500
32	84641-77M00-000	WEATHERSTRIP,DOOR OPNG RH	1	Rp320.500
33	84651-77M00-000	WEATHERSTRIP,DOOR OPNG LH	1	Rp320.500
34	83921-77M00-0CB SUB: 83921B77M00N0CB	TAPE,FRONT DOOR OUTER FR RH (BLACK)	1	Rp70.500
35	83922-77M00-0CB SUB: 83922B77M00N0CB	TAPE,FRONT DOOR OUTER FR LH (BLACK)	1	Rp70.500
