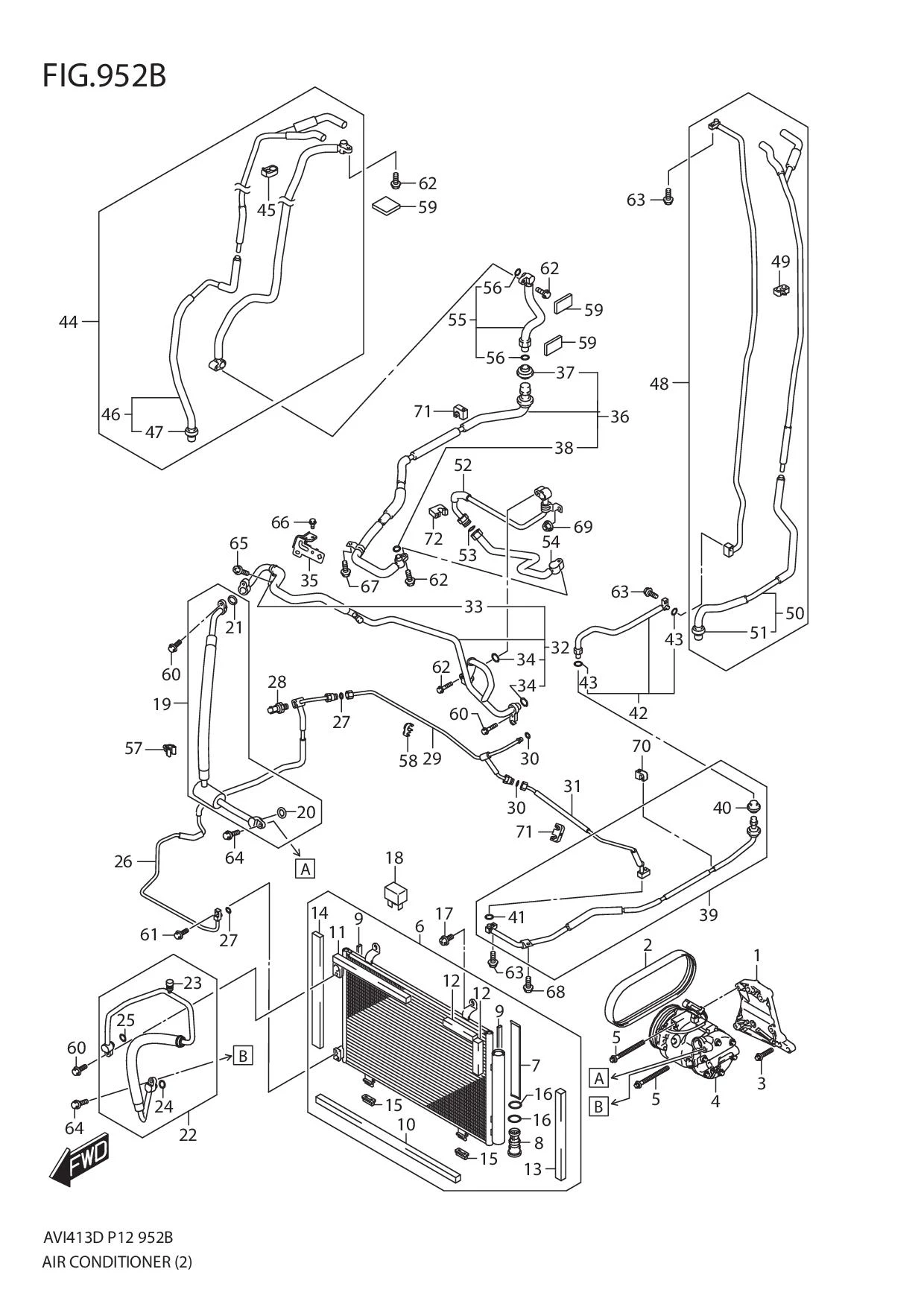

FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)

No	No. Part	Description	Qty	Price Per Pcs
1	95110M79MA0-000	BRACKET,COMPRESSOR	1	Rp264.500
2	95141M86JB0-000 SUB: 95141M86JA0-000	BELT,COMPRESSOR	1	Rp473.000
3	01550-0840A-000 SUB: 01550B0840AN000	BOLT,COMPRESSOR BRKT	4	Rp3.500
4	95200M69KE1-000 SUB: 95200M69KE0-000	COMPRESSOR ASSY	1	Rp7.590.000
5	95913-86JA0-000	BOLT,COMPRESSOR	3	-
6	95310M60M00-000	CONDENSER ASSY	1	Rp2.931.500
7	95339M68K00-000	•DRYER	1	Rp137.500
8	95380M68K00-000	•CAP,FILTER	1	Rp31.000
9	95811M60M00-000	•PACKING	2	Rp15.000
10	95812M60M00-000	•PACKING	1	Rp26.000
11	95813M60M00-000	•PACKING	1	Rp24.500
12	95814M60M00-000	•PACKING	2	Rp11.500
13	95815M60M00-000	•PACKING	1	Rp16.000
14	95816M60M00-000	•PACKING	1	Rp21.000
15	95851M55K00-000	•BUSH	2	Rp7.000
16	95891M68K00-000	•O RING	2	Rp12.500
17	02162-0612A-000	SCREW	2	Rp11.000
18	38860M76M00-000 SUB: 38860M79F01-000	RELAY,A/C	1	Rp58.500
19	95710M58R10-000	HOSE,SUCTION	1	Rp517.000
20	95896M84E00-000	•O RING	1	Rp12.500
21	95896-50G00-000 SUB: 95896M50G00-000	•O RING	1	Rp19.000
22	95720M58R10-000	HOSE,DISCHARGE	1	Rp578.500
23	95729M59K00-000	•CAP,HIGH PRESSURE	1	Rp14.500
24	95895M84E00-000	•O RING	1	Rp11.000
25	95895-50G00-000 SUB: 95895B50G00N000	•O RING	1	Rp12.500
26	95735M58R50-000	PIPE,LIQUID NO.1-1	1	Rp998.500
27	95891-50G00-000 SUB: 95891B50G00N000	O RING	2	Rp12.500
28	95546M83E00-000	SENSOR,PRESSURE	1	Rp786.500
29	95736M58R50-000	PIPE,LIQUID NO.1-2	1	Rp168.000
30	95891-50G00-000 SUB: 95891B50G00N000	O RING	2	Rp12.500
31	95737M58R50-000	PIPE,LIQUID NO.1-3	1	Rp129.000
32	95741M60M70-000	PIPE,SUCTION	1	Rp497.000
33	95771-70G10-000 SUB: 95771B70G10N000	•CLAMP,SUCTION PIPE	1	Rp22.500
34	95896-50G00-000 SUB: 95896B50G00N000	•O RING	2	Rp19.000
35	95781M60M00-000	STAY,SUCT HOSE	1	Rp42.000
36	95711M60M60-000	HOSE,SUCTION NO.2	1	Rp557.000
37	74813-82000-000	•GROMMET,CAR AIR CON NO.1	1	Rp53.500
38	95896-50G00-000 SUB: 95896B50G00N000	•O RING	1	Rp19.000
39	95732M60M60-000	HOSE,LIQUID NO.2	1	Rp297.500
40	DISCONTINUE SUB: 74814-82000L000	•GROMMET,CAR AIR CON NO.2	1	-
41	95896-50G00-000 SUB: 95896B50G00N000	•O RING	1	Rp19.000
42	95733M60M60-000	PIPE,LIQUID NO.3	1	Rp130.000
43	95891-50G00-000 SUB: 95891B50G00N000	•O RING	2	Rp12.500
44	95740M60M60-000	PIPE ASSY,DRAIN & SUCTION	1	Rp291.500
45	09403-18411-000 SUB: 09403B18411N000	•CLAMP	2	Rp10.500
46	95482M60M60-000	•HOSE,DRAIN LOWER RH	1	Rp102.000
47	DISCONTINUE SUB: 74814-82000L000	••GROMMET,CAR AIR CON NO.2	1	-
48	95740M60M70-000	PIPE ASSY,DRAIN & LIQUID	1	Rp343.500
49	09403-10407-000 SUB: 09403B10407N000	•CLAMP	2	Rp10.000
50	95482M60M70-000	•HOSE,DRAIN LOWER LH	1	Rp104.500
51	DISCONTINUE SUB: 74814-82000L000	••GROMMET,CAR AIR CON NO.2	1	-
52	95743M60M80-000	•PIPE,SUCTION NO.2-1	1	Rp166.000
53	95744M60M80-000	•PIPE,SUCTION NO.2-2	1	Rp166.000
54	95895-50G00-000 SUB: 95895B50G00N000	•O RING	1	Rp12.500
55	95744M60M60-000	PIPE,SUCTION NO.4	1	Rp246.500
56	95896-50G00-000 SUB: 95896B50G00N000	•O RING	2	Rp19.000
57	95761M65M00-000	CLAMP	2	Rp8.000
58	95762M68K00-000	CLAMP	2	Rp9.000
59	95811M60M00-000	PACKING	3	Rp15.000
60	01550-0620A-000	BOLT	3	Rp3.500
61	01550-0620C-000	BOLT	1	Rp5.500
62	01550-0620A-000	BOLT	4	Rp3.500
63	01550-0620A-000	BOLT	3	Rp3.500
64	01550-0820A-000 SUB: 01550B0820AN000	BOLT	2	Rp5.500
65	02162-0612A-000	SCREW	1	Rp11.000
66	02162-0612A-000	SCREW	1	Rp11.000
67	02162-0612A-000	SCREW	1	Rp11.000
68	02162-0612A-000	SCREW	1	Rp11.000
69	08316-1006A-000	NUT	1	Rp2.000
70	09403-08337-000	CLAMP	2	Rp26.500
71	09403-08338-000	CLAMP	2	Rp28.500
72	09403-12321-000	CLAMP	3	Rp24.000
