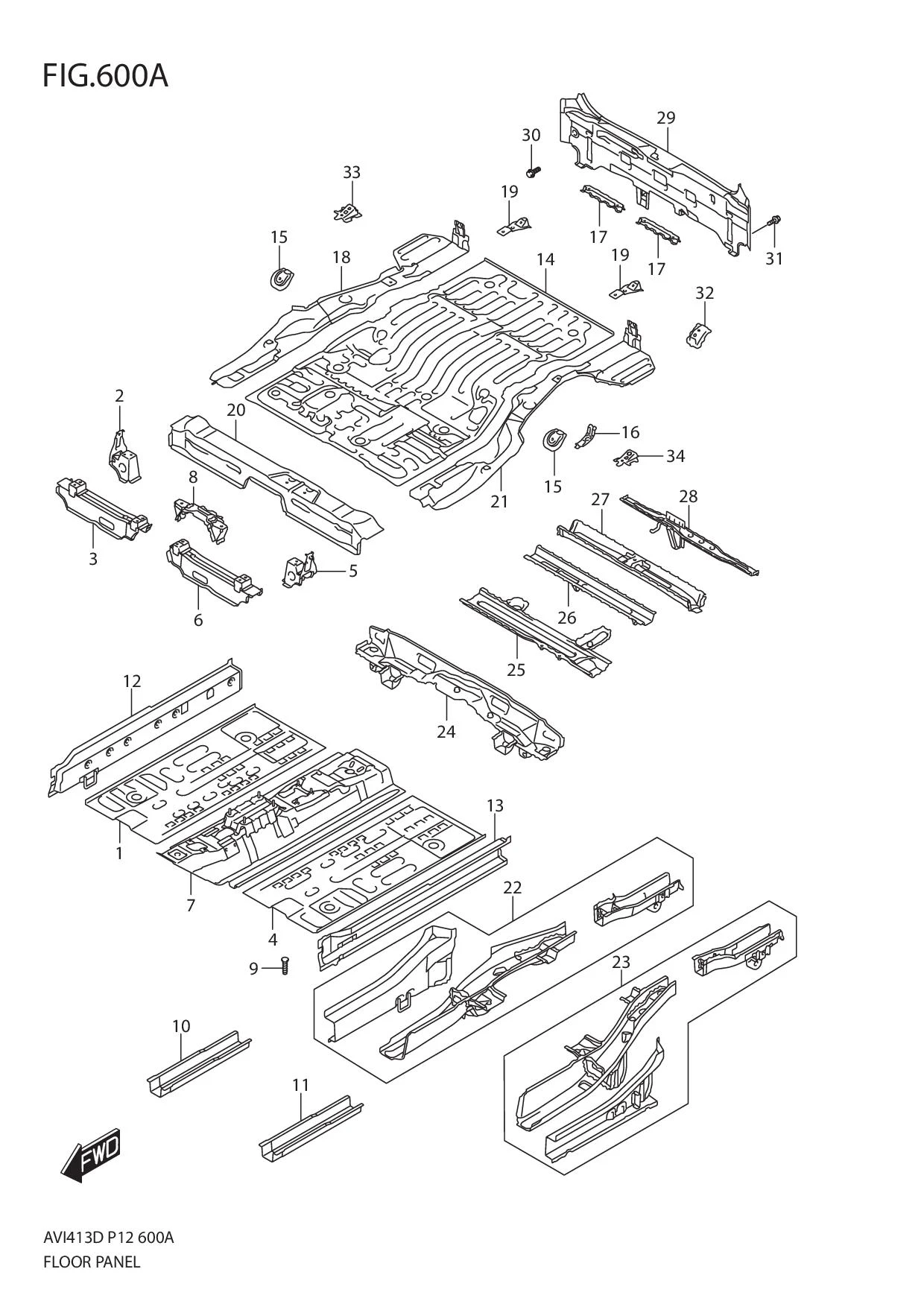

FIG.600A FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61111-77M10-000 SUB: 61111B77M10N000	PAN,MAIN FLOOR RH	1	Rp1.439.000	GL,GLX
2	61120-60M00-000 SUB: 61120B60M00N000	BRACKET,FR SEAT RR OUT RH	1	Rp90.000
3	61130-60M10-000	CROSSMEMBER,FLR PAN UPR RH	1	Rp254.000
4	61161-77M10-000 SUB: 61161B77M10N000	PAN,MAIN FLOOR LH	1	Rp1.416.000	GL,GLX
5	61170-60M00-000 SUB: 61170B60M00N000	BRACKET,FR SEAT RR OUT LH	1	Rp90.000
6	61180-60M00-000 SUB: 61180B60M00N000	CROSSMEMBER,FLR PAN UPR LH	1	Rp681.000
7	61210-60M00-000 SUB: 61210B60M00N000	TUNNEL,MAIN FLOOR	1	Rp2.805.500
8	61230-59R00-000	BRACKET,FR SEAT RR INSIDE	1	Rp119.500
9	09119-05018-000	BOLT	11	Rp13.000	GL,GLX
10	61240-74L00-000	MEMBER,FLOOR SIDE REAR RH	1	Rp201.000
11	61250-74L00-000	MEMBER,FLOOR SIDE REAR LH	1	Rp201.000
12	61310-59R00-000	PANEL,SIDE SILL INNER RH	1	Rp736.500
13	61320-59R00-000	PANEL,SIDE SILL INNER LH	1	Rp736.500
14	61512-77M01-000	PANEL,REAR FLOOR	1	Rp1.387.000
15	61516-60M00-000 SUB: 61516B60M00N000	BRACKET,3RD SEAT FR	2	Rp35.500
16	61517-60M00-000 SUB: 61517B60M00N000	BRACKET,FUEL HOSE CLAMP	1	Rp35.500
17	61518-60M00-000 SUB: 61518B60M00N000	BRACKET,LUGGAGE BOX	2	Rp41.000	GL,GLX
18	61520-77M00-000 SUB: 61520B77M00N000	PANEL,RR FLOOR SIDE RH	1	Rp544.000	GL,GLX
19	61524-60M00-000 SUB: 61524B60M00N000	BRACKET,3RD SEAT RR	2	Rp45.500
20	61530-77M00-000 SUB: 61530B77M00N000	PANEL,RR FLOOR FR	1	Rp490.000
21	61570-77M00-000 SUB: 61570B77M00N000	PANEL,RR FLOOR SIDE LH	1	Rp544.000
22	62100-59R00-000	MEMBER,REAR FLOOR SIDE RH	1	Rp3.052.000
23	62300-59R00-000	MEMBER,REAR FLOOR SIDE LH	1	Rp3.052.000
24	62610-77M00-000 SUB: 62610B77M00N000	CROSSMEMBER,REAR FLOOR FR	1	Rp1.028.000
25	62620-60M00-000 SUB: 62620B60M00N000	CROSSMEMBER,RR FLOOR 2ND	1	Rp623.000
26	62650-60M00-000 SUB: 62650B60M00N000	CROSSMEMBER,RR FLOOR 3RD	1	Rp206.500
27	62660-77M00-000 SUB: 62660B77M00N000	CROSSMEMBER,RR FLOOR 4TH	1	Rp309.500
28	62670-60M00-000 SUB: 62670B60M00N000	CROSSMEMBER,RR FLOOR 5TH	1	Rp318.500
29	65500-59R00-000	PANEL,BACK	1	Rp1.573.000
30	01550-0612B-000	BOLT	4	Rp16.500
31	01550-0612B-000	BOLT	4	Rp16.500
32	61519-58R00-000	BRACKET,3RD SEAT INNER FR	2	Rp18.500	GL,GLX
33	61525-58R00-000	BRACKET,3RD SEAT INNER RR,RH	1	Rp35.000	GL,GLX
34	61575-58R00-000	BRACKET,3RD SEAT INNER RR,LH	1	Rp35.000	GL,GLX
