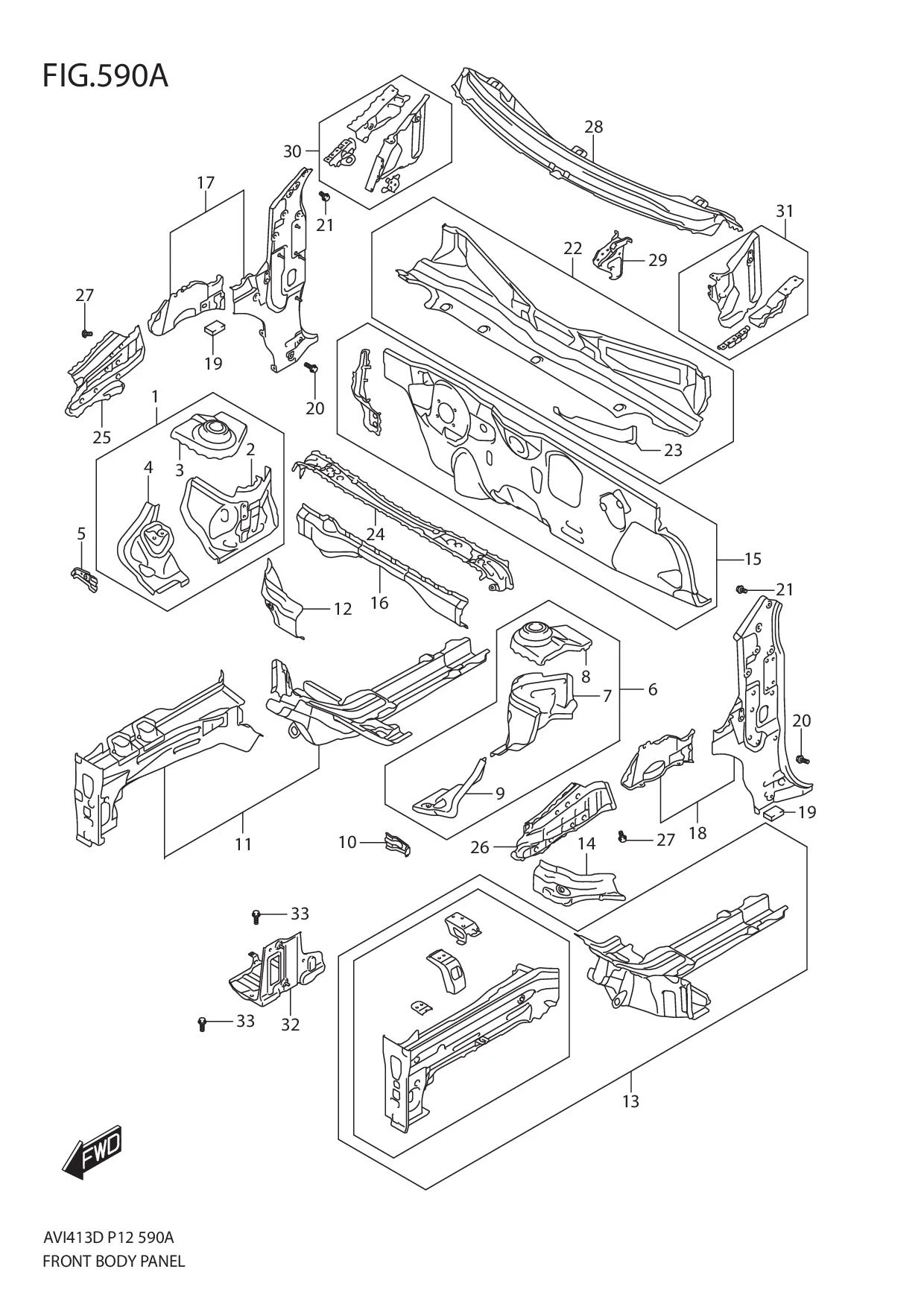

FIG.590A FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	58300-77M01-000 SUB: 58300B77M00N000	PANEL ASSY,FENDER APRON RH	1	Rp690.000
2	58311-58M00-000 SUB: 58311B58M00N000	•PANEL,FENDER APRON RH	1	Rp339.500
3	58321-74L00-000 SUB: 58321B74L00N000	•BRACKET,SUSPENSION UPPER RH	1	Rp324.000
4	58330-74L00-000 SUB: 58330B74L00N000	•EXTENSION,FENDER APRON RH	1	Rp326.500
5	58312-60M00-000	BRACKET,FR FENDER LOWER	1	Rp9.500
6	58400-77M00-000 SUB: 58400B77M00N000	PANEL ASSY,FENDER APRON LH	1	Rp690.000
7	58410-77M00-000 SUB: 58410B77M00N000	•PANEL,FENDER APRON LH	1	Rp491.000
8	58421-74L00-000 SUB: 58421B74L00N000	•BRACKET,SUSPENSION UPPER LH	1	Rp331.500
9	58431-74L00-000 SUB: 58431B74L00N000	•EXTENSION,FENDER APRON LH	1	Rp289.000
10	58312-60M00-000 SUB: 58312B60M00N000	BRACKET,FR FENDER LOWER	1	Rp9.500
11	58600-74L00-000	MEMBER,FRONT SIDE RH	1	Rp3.630.000
12	58641-74L00-000 SUB: 58641B74L00N000	CROSSMEMBER,DASH UPPER RH	1	Rp114.500
13	58700-74L00-000	MEMBER,FRONT SIDE LH	1	Rp3.630.000
14	58741-74L00-000 SUB: 58741B74L00N000	CROSSMEMBER,DASH UPPER LH	1	Rp114.500
15	59100-60M00-000	PANEL,DASH	1	Rp2.223.500
16	59220-74L00-000 SUB: 59220B74L00N000	CROSSMEMBER,DASH UPPER	1	Rp361.000
17	59230-77M00-000 SUB: 59230B77M00N000	PANEL,DASH SIDE RH	1	Rp723.000
18	59280-77M00-000 SUB: 59280B77M00N000	PANEL,DASH SIDE LH	1	Rp723.000
19	83921-82C00-000	PAD	2	Rp51.000
20	01550-0612B-000	BOLT	2	Rp16.500
21	01550-0612B-000	BOLT	2	Rp16.500
22	59300-60M00-000 SUB: 59300B60M00N000	PANEL,COWL UPPER	1	Rp1.035.000
23	DISCONTINUE SUB: 59312B75J00N000	•SEALING,COWL VENTILATOR	1	-
24	59320-77M00-000 SUB: 59320B77M00N000	MEMBER,COWL UPPER FRONT	1	Rp199.000
25	59411-77M00-000	MEMBER,COWL SIDE OUTER RH	1	Rp136.500
26	59461-77M01-000	MEMBER,COWL SIDE OUTER LH	1	Rp136.500
27	01550-0820A-000 SUB: 01550B0820AN000	BOLT	4	Rp5.500
28	59710-60M00-000 SUB: 59710B60M00N000	PANEL,COWL TOP	1	Rp647.000
29	59720-60M00-000 SUB: 59720B60M00N000	BRACKET,WIPER LINK CENTER	1	Rp96.000
30	59730-77M00-000 SUB: 59730B77M00N000	PANEL,COWL TOP SIDE RH	1	Rp403.000
31	59780-77M00-000 SUB: 59780B77M00N000	PANEL,COWL TOP SIDE LH	1	Rp403.000
32	72520-74L00-000 SUB: 72520B74L00N000	TRAY,BATTERY	1	Rp188.000
33	02162-0612A-000	SCREW	4	Rp11.000
