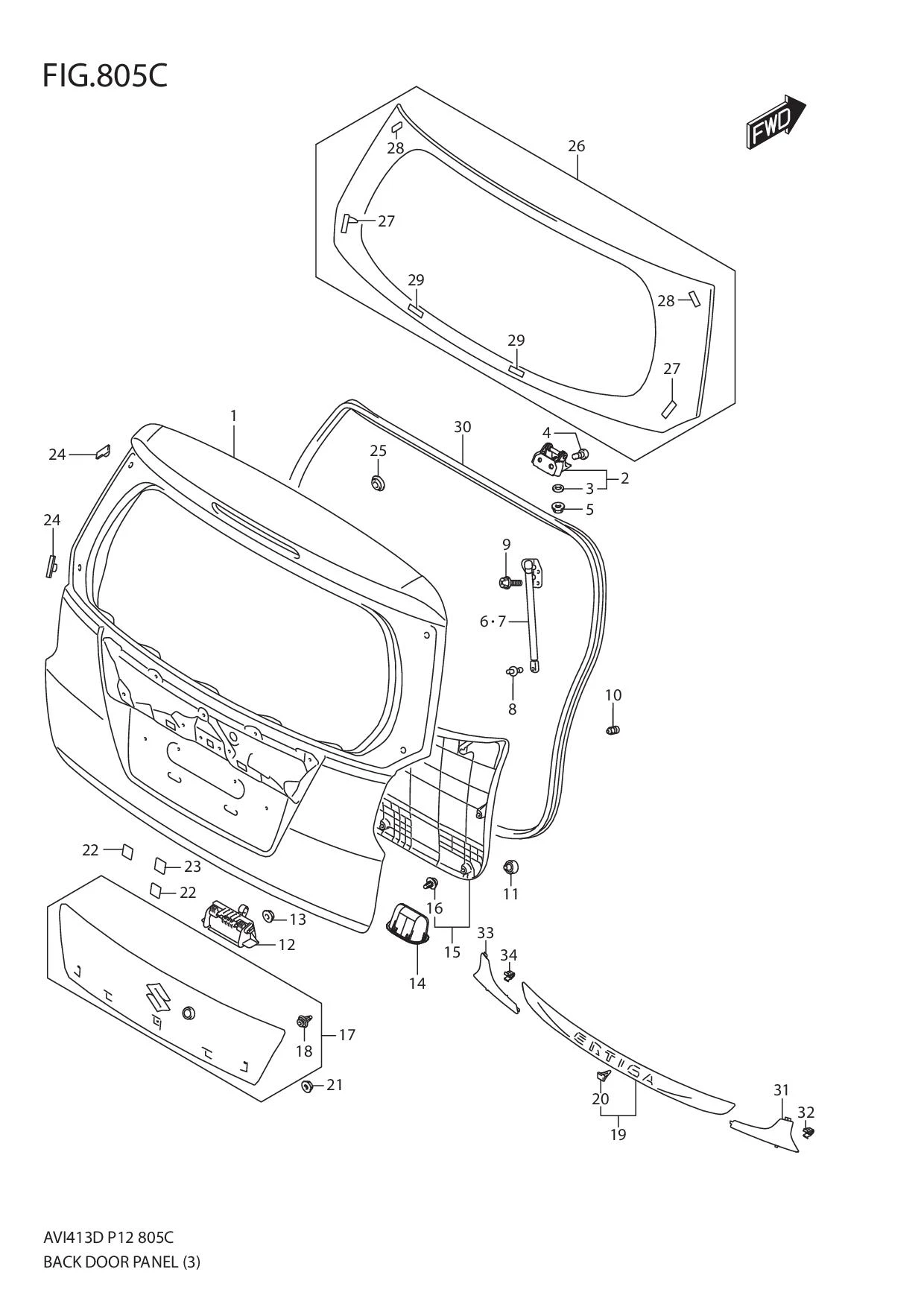

FIG.805C BACK DOOR PANEL (GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	69100M60M51-000 SUB: 69100M60M50-000	PANEL ASSY,BACK DOOR	1	Rp3.733.500
2	69510-64L00-000 SUB: 69510B64L00N000	HINGE,BACK DOOR	2	Rp72.500
3	69571M76G00-000	•PACKING HINGE	2	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M60M00-000	BALANCER,BACK DOOR RH	1	Rp282.000
7	81860M60M00-000	BALANCER,BACK DOOR LH	1	Rp282.000
8	81871M68P01-000 SUB: 81871M83K10-000	BALLSTUD,BACK DOOR BALANCER	2	Rp31.000
9	09113-08002-000	BOLT (8X12)	4	Rp25.500
10	82683M60B00-000	CUSHION,BACK DOOR SIDE	2	Rp8.500
11	09321-10041-000	CUSHION	2	Rp21.000
12	82850M60M00-000	HANDLE ASSY,BACK DOOR LOCK	1	Rp422.000
13	08316-1006A-000	NUT	2	Rp2.000
14	82841-82G02-000 SUB: 82841B82G02N000	HANDLE,BACK DOOR INNER	1	Rp7.000
15	83770-77M00-V6N SUB: 83770B77M00NV6N	TRIM,BACK DOOR (BEIGE)	1	Rp596.000
16	09409-10327-000	•CLIP	13	Rp5.000
17	83940-77M41-000 SUB: 83940-77M40-000	GARNISH,BACK DOOR LICENSE (NOT PAINT)	1	Rp359.500
18	71812-78F00-000 SUB: 71812B78F00N000	•CLIP	6	Rp9.000
19	83944-77M11-0PG SUB: 83944-77M10-0PG	MOLDING,BACK DOOR GARNISH	1	Rp414.000
20	09409-06323-000	•CLIP	2	Rp13.500
21	08316-1006A-000	NUT	3	Rp2.000
22	44281-29C00-000 SUB: 44281B29C00N000	PAD,LOCENSE PLATE	4	Rp6.000
23	77151-82000-000 SUB: 77151B82000N000	SEAL,BACK DOOR LICENSE PLATE	2	Rp7.000
24	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	4	Rp45.500
25	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:25.8)	1	Rp4.500
26	84570-77M10-000	GLASS,BACK DOOR WINDOW	1	Rp643.500
27	84572-74G00-000	•MALE,GLASS FASTENER NO.1	2	Rp42.500
28	84513-76F00-000	•MALE,GLASS FASTENER NO.2	2	Rp38.500
29	84617M60M00-000	•SPACER	2	Rp4.500
30	84681-77M00-000 SUB: 84681B77M00N000	WEATHERSTRIP,DOOR OPENING	1	Rp206.500
31	DISCONTINUE SUB: 990H0-990AZ-061	GARNISH ASSY BACK DOOR RH	1	-
32	09409-06324-000	CLIP	2	Rp13.500
33	DISCONTINUE SUB: 990H0-990AZ-062	GARNISH ASSY BACK DOOR LH	1	-
34	09409-06324-000	CLIP	2	Rp13.500
