ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

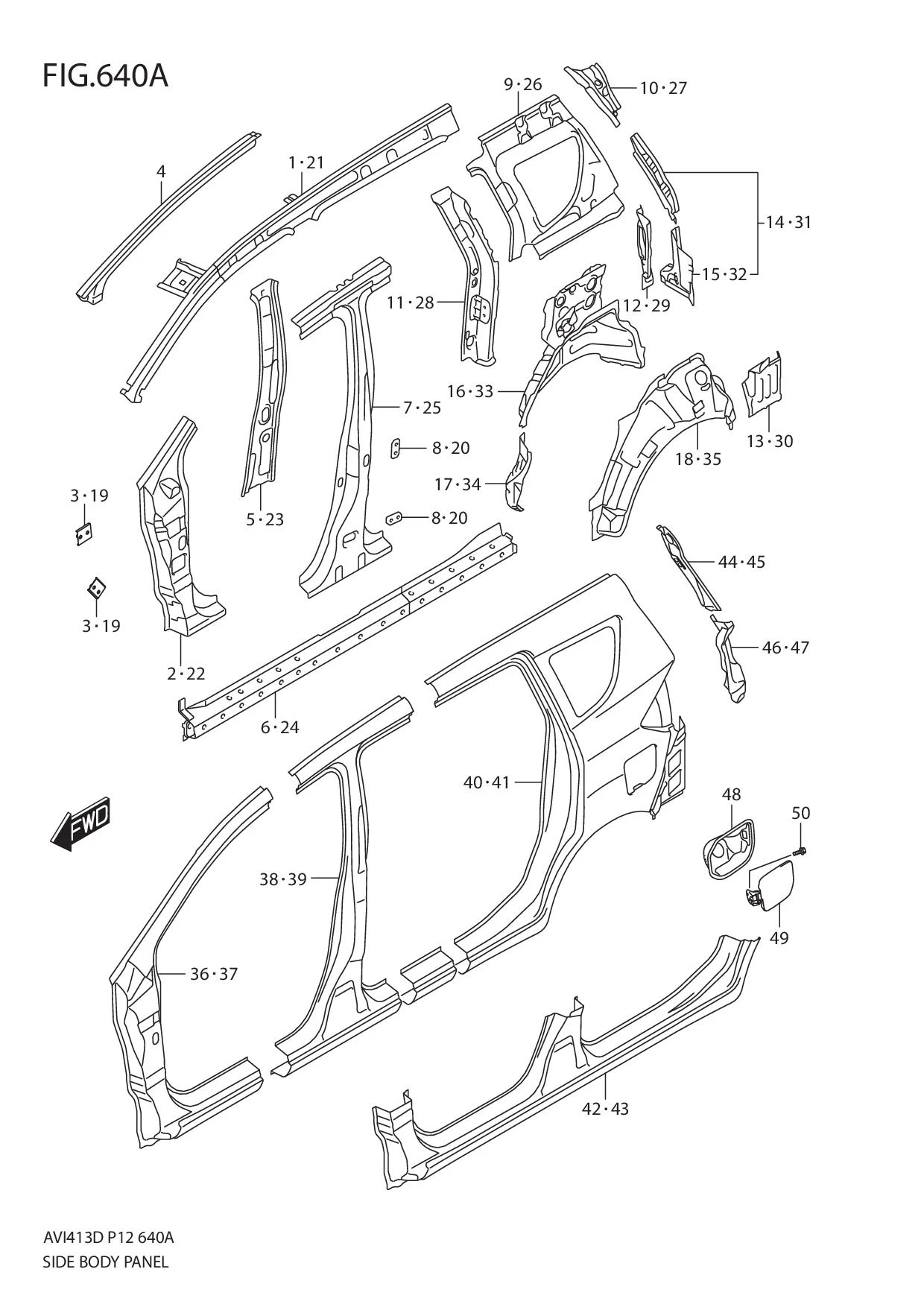

FIG.640A SIDE BODY PANEL

FIG.640A SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63110-59R00-000 PANEL,FR PILLAR INNER RH 1 Rp3.538.500
2 63140-77M00-000
SUB: 63140B77M00N000		 REINF,FR DOOR HINGE RH 1 Rp1.176.500
3 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER,FRONT DOOR HINGE RH 2 Rp18.500
4 63150-59R00-000 REINF,FR PILLAR UPPER RH 1 Rp487.000
5 63211-60M00-000 PANEL,CTR PILLAR INNER RH 1 Rp629.000
6 63220-59R00-000 STRENGTH,SIDE SILL RH 1 Rp460.500
7 63230-59R00-000 REINF,CTR PILLAR RH 1 Rp1.106.500
8 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER,REAR DOOR HINGE RH 2 Rp9.500
9 63311M60M00-000
SUB: 63311B60M00N000		 PANEL,QTR INNER UPPER RH 1 Rp647.000
10 63312-60M00-000
SUB: 63312B60M00N000		 EXTENSION,QTR INNER UPR RH 1 Rp122.500
11 63320-59R00-000 REINF,QTR INNER FRONT RH 1 Rp210.000
12 63340-60M00-000
SUB: 63340B60M00N000		 PANEL,3RD SEAT RETAINER RH 1 Rp289.500
13 63350-77M00-000
SUB: 63350B77M00N000		 PANEL,QTR INNER LOWER RH 1 Rp245.500
14 63370-60M00-000
SUB: 63370B60M00N000		 PANEL,RR LAMP HOUSE INNER RH 1 Rp399.500
15 63372-60M00-000
SUB: 63372B60M00N000		 •PANEL,RR LAMP HOUSE LOWER RH 1 Rp197.000
16 63410-77M01-000 PANEL,WHEEL HOUSE INNER RH 1 Rp516.000
17 63413-77M00-000
SUB: 63413B77M00N000		 REINF,RR WHEEL HOUSE FR RH 1 Rp204.000
18 63480-77M00-000
SUB: 63480B77M00N000		 PANEL,WHEEL HOUSE OUTER RH 1 Rp570.000
19 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER,FRONT DOOR HINGE LH 2 Rp18.500
20 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER,REAR DOOR HINGE LH 2 Rp9.500
21 63510-59R00-000 PANEL,FR PILLAR INNER LH 1 Rp3.538.500
22 63540-77M00-000
SUB: 63540B77M00N000		 REINF,FRONT DOOR HINGE LH 1 Rp1.203.500
23 63611-60M00-000 PANEL,CTR PILLAR INNER LH 1 Rp629.000
24 63620-77M00-000
SUB: 63620B77M00N000		 STRENGTH,SIDE SILL LH 1 Rp709.000
25 63630-59R00-000 REINF,CTR PILLAR LH 1 Rp1.106.500
26 63711-60M00-000
SUB: 63711B60M00N000		 PANEL,QTR INNER UPPER LH 1 Rp647.000
27 63712-60M00-000
SUB: 63712B60M00N000		 EXTENSION,QTR INNER UPR LH 1 Rp122.500
28 63720-59R50-000
SUB: 63720B60M00N000		 REINF,QTR INNER FRONT LH 1 Rp331.000
29 63740-60M00-000
SUB: 63740B60M00N000		 PANEL,3RD SEAT RETAINER LH 1 Rp289.500
30 63751-77M00-000
SUB: 63751B77M00N000		 PANEL,QTR INNER LOWER LH 1 Rp240.500
31 63770-60M00-000
SUB: 63770B60M00N000		 PANEL,RR LAMP HOUSE INNER LH 1 Rp394.500
32 63772-60M00-000
SUB: 63772B60M00N000		 •PANEL,RR LAMP HOUSE LOWER LH 1 Rp197.000
33 63810-77M00-000
SUB: 63810B77M00N000		 PANEL,WHEEL HOUSE INNER LH 1 Rp593.500
34 63813-77M00-000
SUB: 63813B77M00N000		 REINF,RR WHEEL HOUSE FR LH 1 Rp204.000
35 63880-77M00-000
SUB: 63880B77M00N000		 PANEL,WHEEL HOUSE OUTER LH 1 Rp570.000
36 64111-77M00-P11
SUB: 64111B77M00NP11		 PANEL,A-PILLAR RH 1 Rp1.220.000
37 64511-77M00-P11
SUB: 64511B77M00NP11		 PANEL,A-PILLAR LH 1 Rp1.220.000
38 64111-77M00-P21
SUB: 64111B77M00NP21		 PANEL,B-PILLAR RH 1 Rp1.134.500
39 64511-77M00-P21
SUB: 64511B77M00NP21		 PANEL,B-PILLAR LH 1 Rp1.134.500
40 64111-77M00-P31
SUB: 64111B77M00NP31		 PANEL,QUARTER RH 1 Rp1.272.500
41 64511-77M00-P31
SUB: 64511B77M00NP31		 PANEL,QUARTER LH 1 Rp1.272.500
42 64111-77M00-P41
SUB: 64111B77M00NP41		 PANEL,SIDE SILL RH 1 Rp1.692.500
43 64511-77M00-P41
SUB: 64511B77M00NP41		 PANEL,SIDE SILL LH 1 Rp1.692.500
44 64120-60M00-000
SUB: 64120B60M00N000		 EXTENSION,SIDE BODY OTR RH 1 Rp221.500
45 64520M60M00-000
SUB: 64520B60M00N000		 EXTENSION,SIDE BODY OTR LH 1 Rp221.500
46 64130-77M00-000
SUB: 64130B77M00N000		 PANEL,RR LAMP HOUSE OUTER RH 1 Rp299.500
47 64530-77M00-000
SUB: 64530B77M00N000		 PANEL,RR LAMP HOUSE OUTER LH 1 Rp299.500
48 64571-60M00-000
SUB: 64571B60M00N000		 BOX,FUEL FILLER 1 Rp75.000
49 64850M60M10-000
SUB: 64850B60M00N000		 DOOR,FUEL FILLER 1 Rp155.500
50 01550-0612B-000 SCREW 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
