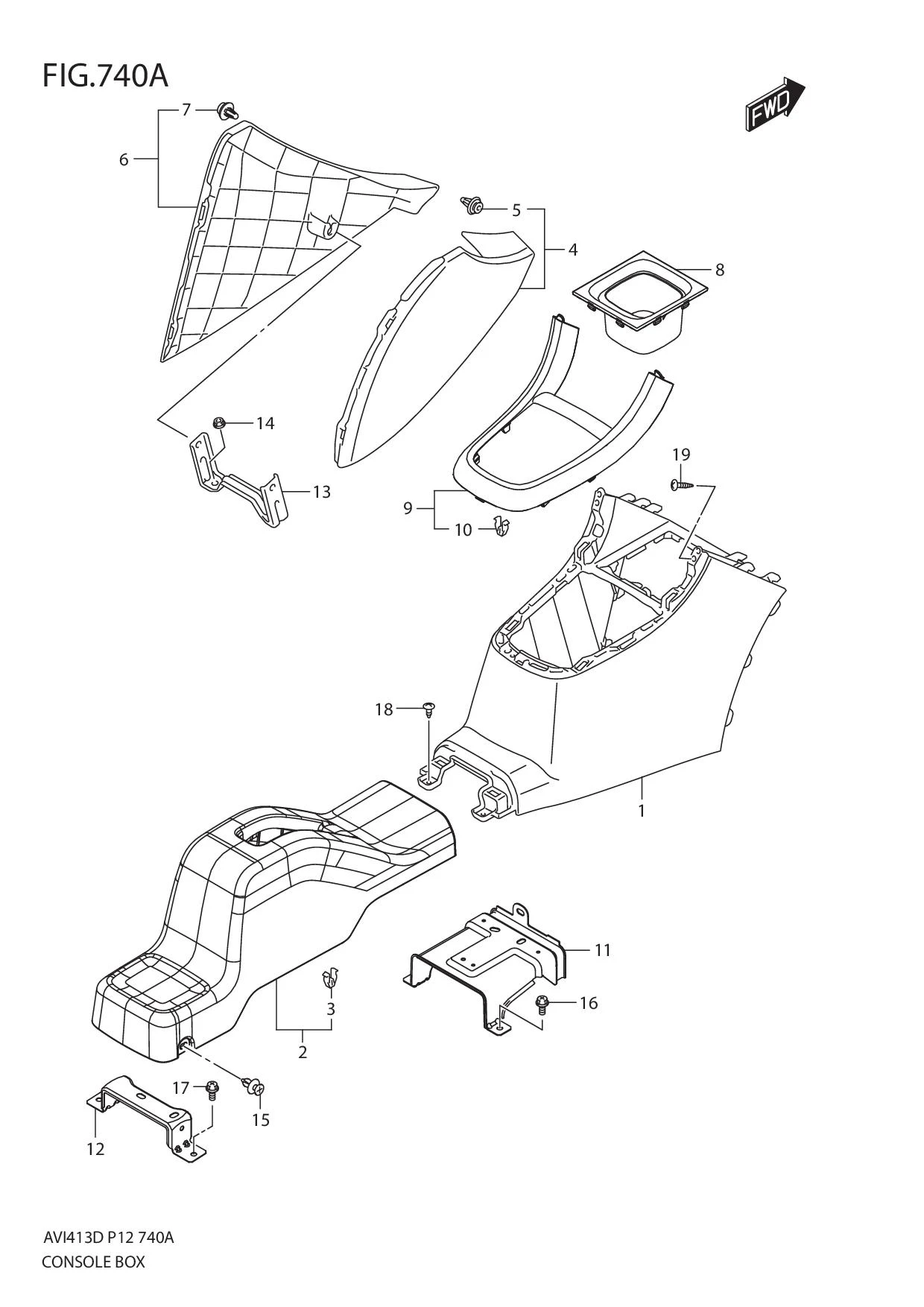

FIG.740A CONSOLE BOX

FIG.740A CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75811-77M00-V6N
SUB: 75811B77M00NV6N		 BOX,FLOOR CONSOLE FRONT (BEIGE) 1 Rp71.000
2 75821-59R00-V6N BOX,FLOOR CONSOLE (BEIGE) 1 Rp103.500
3 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
4 75831-60M00-V6N
SUB: 75831B60M00NV6N		 COVER,FLOOR CONSOLE SIDE RH (BEIGE) 1 Rp37.000
5 09409-10327-000 •CLIP 1 Rp5.000
6 75841-60M00-V6N
SUB: 75841B60M00NV6N		 COVER,FLOOR CONSOLE SIDE LH (BEIGE) 1 Rp37.000
7 09409-10327-000 •CLIP 1 Rp5.000
8 75851-74L00-V6N
SUB: 75851B74L00NV6N		 HOLDER,CUP (BEIGE) 1 Rp13.500
9 75861-68L01-V6N GARNISH,FLOOR CONSOLE BOX FR (BEIGE) 1 Rp74.000
10 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
11 75881-74L00-000
SUB: 75881B74L00N000		 BRACKET,FLOOR CONSOLE 1 Rp27.000
12 75882-68L00-000
SUB: 75882B68L00N000		 BRACKET,FLOOR CONSOLE 1 Rp11.000
13 75883-74L00-000
SUB: 75883B74L00N000		 BRACKET,FLOOR CONSOLE COVER 1 Rp12.000
14 09159-06076-000 NUT 2 Rp19.500
15 09409-06322-V6N
SUB: 09409B06322NV6N		 CLIP (BEIGE) 2 Rp22.500
16 02162-0612A-000 SCREW CONSOLE BOX FR B/K 2 Rp11.000
17 02162-0612A-000 SCREW CONSOLE BOX RR B/K 2 Rp11.000
18 03141-0516B-000 SCREW CONSOLE BOX FR LOWER 2 Rp3.500
19 03541-0516A-000 SCREW CONSOLE BOX FR LOWER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
