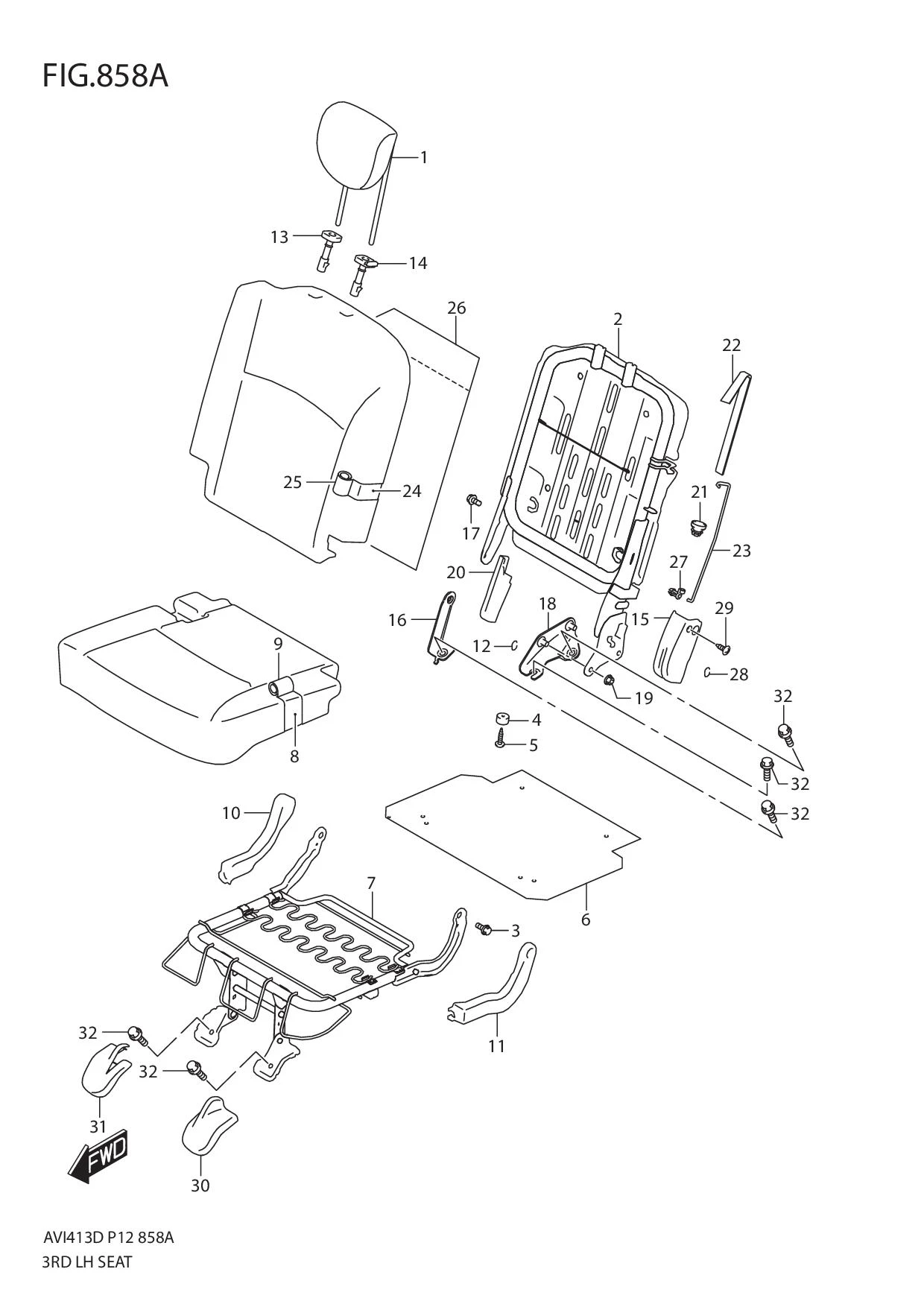

FIG.858A 3RD LH SEAT (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	86401M60M20-BU1	HEADRESTRAINT ASSY,RR (BEIGE)	1	Rp332.000
2	88810-58RA0-000	FRAME COMP,3RD BACK LH	1	Rp587.000
3	87295-58R00-000	BOLT,CUSH STAY FIX	2	Rp8.000
4	87291-60A10-000	CUSHION,RR SEAT	1	Rp30.500
5	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
6	87163-78F00-000	SUPPORT,RR CUSH	1	Rp7.000
7	88104-58R00-000	FRAME ASSY,3RD CUSH LH	1	Rp2.897.000
8	88660-58RA0-000	PAD COMP,3RD CUSH LH	1	Rp471.000
9	88680M58R00-BUZ	TRIM COMP,3RD CUSH,LH (BEIGE	1	-
10	88671-58R00-V6N	COVER,3RD STAY INSIDE LH (BEIGE)	1	Rp12.000
11	88672-58R00-V6N	COVER,3RD STAY OUTSIDE LH (BEIGE)	1	Rp12.000
12	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
13	85341-58RA1-V6N SUB: 85341-58RA0-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp10.500
14	DISCONTINUE SUB: 85840-58RA0-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	-
15	88721-58RA0-V6N	COVER,3RD LOCK UPR LH (BEIGE)	1	Rp12.000
16	88731-58R00-000	BRACKET,3RD BACK HINGE LH	1	Rp41.000
17	88296-58R00-000	BOLT,3RD BACK HINGE	1	Rp5.500
18	88732-58R00-000	•BRACKET,3RD MTG OUTSIDE LH	1	Rp41.000
19	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
20	88741-58R00-V6N	COVER,3RD HINGE UPR LH (BEIGE)	1	Rp9.000
21	87319-67LA0-000 SUB: 87319B67LA0N000	BUSH,RR LOCK RELEASE ROD	1	Rp12.500
22	88211M58R00-V6N	BAND,3RD LOCK RELEASE (BEIGE)	1	Rp23.000
23	88715-58RA0-000	ROD,3RD LOCK RELEASE LH	1	Rp9.000
24	88860-58R00-000	PAD COMP,3RD BACK LH	1	Rp471.000
25	88880M58R00-BUZ	TRIM,3RD BACK LH (BEIGE)	1	Rp491.500
26	88334-58R00-000	SILENCER,3RD BACK	1	Rp12.000
27	09403-04306-000	CLAMP	1	Rp24.000
28	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
29	03241-0510A-000	SCREW	1	Rp8.000
30	88492-58R00-R8R	COVER,3RD MTG INR LH (BEIGE)	1	Rp122.000
31	88494-58R00-R8R	COVER,3RD MTG OTR LH (BEIGE)	1	Rp122.000
32	01551-1020A-000	BOLT	5	Rp18.000
