ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

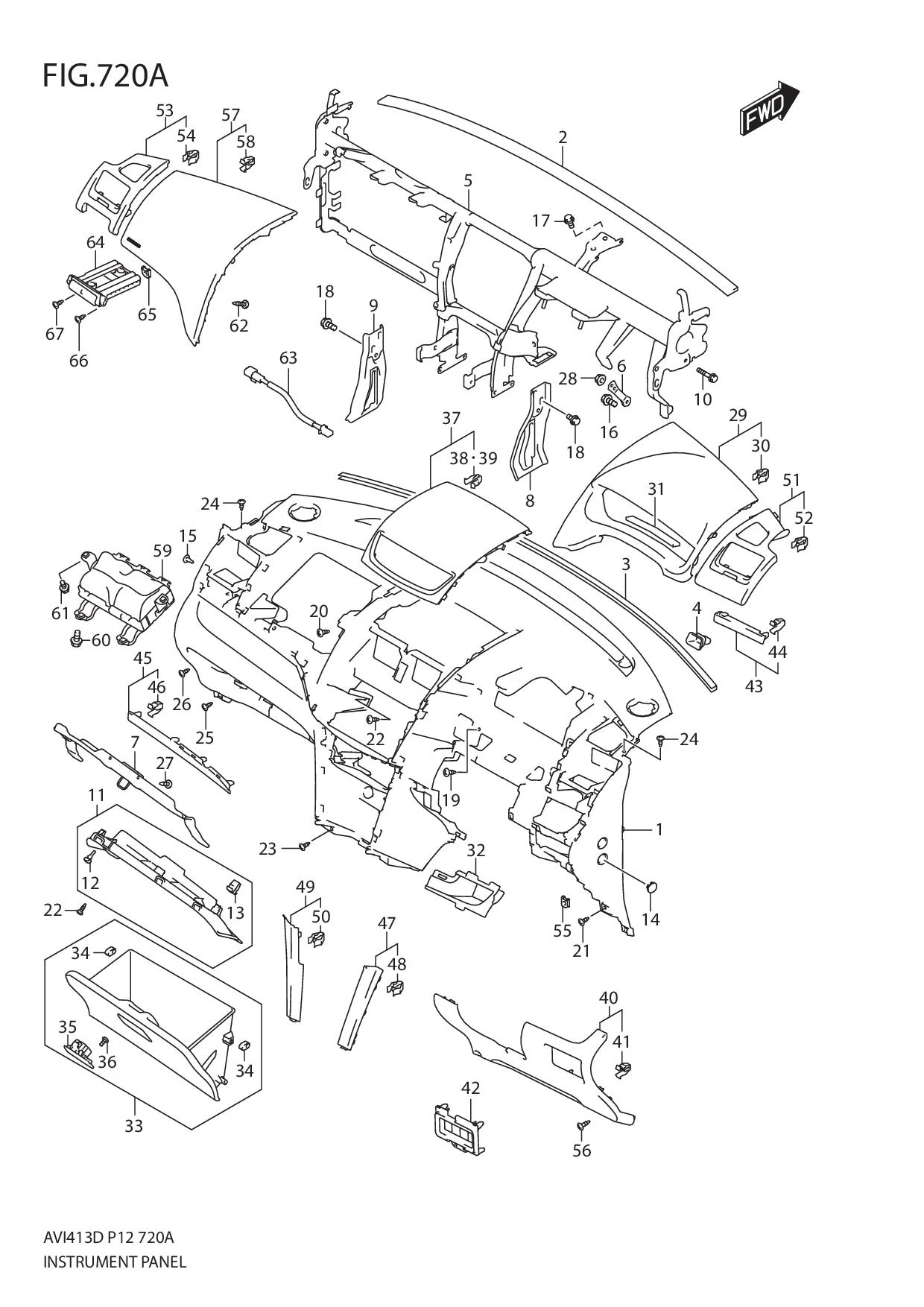

FIG.720A INSTRUMENT PANEL

FIG.720A INSTRUMENT PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 73111-77M00-HPW
SUB: 73111B77M00NHPW		 PANEL,INSTRUMENT MAIN (BEIGE) 1 Rp4.391.500
2 73118-58J00-000
SUB: 73118B58J00N000		 SEAL,INSTRUMENT PANEL 1 Rp10.000
3 73121-59R00-000 SILENCER,INSTRUMENT PANEL TOP 1 Rp31.000
4 73123-51K00-000 SOCKET,I/P PIN 3 Rp43.000
5 73200-77M00-000
SUB: 73200B77M00N000		 MEMBER,STEERING SUPPORT 1 Rp2.158.500
6 73239-77M00-000
SUB: 73239B77M00N000		 REINF,STEERING COLUMN LH 1 Rp10.000
7 73250-74L00-000
SUB: 73250B74L00N000		 REINF,GLOVE BOX UPPER 1 Rp51.000
8 73261-60M00-000
SUB: 73261B60M00N000		 BRACE,STRG SUPPORT MEMBER LOWER RH 1 Rp26.500
9 73262-60M00-000
SUB: 73262B60M00N000		 BRACE,STRG SUPPORT MEMBER LOWER LH 1 Rp26.500
10 73291-50G20-000 BOLT,STRIG SUPPORT MEMBER SIDE 4 Rp42.500
11 73840-77M00-000
SUB: 73840B77M00N000		 COVER,GLOVE BOX UPPER 1 Rp65.500
12 73461-54M00-000 •CUSHION,GLOVE BOX SIDE 2 Rp32.000
13 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
14 73871-73H00-P4Z
SUB: 73871B73H00NP4Z		 CAP,I/P SIDE (GRAY) 4 Rp9.000
15 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000
16 01550-0612B-000 BOLT 1 Rp16.500
17 01551-0816C-000 BOLT 1 Rp17.500
18 01551-0816C-000 BOLT 8 Rp17.500
19 03141-0516B-000 SCREW 2 Rp3.500
20 03141-0516B-000 SCREW 2 Rp3.500
21 03141-0516B-000 SCREW 1 Rp3.500
22 03141-0516B-000 SCREW 2 Rp3.500
23 03141-0516B-000 SCREW 2 Rp3.500
24 03141-0516B-000 SCREW 2 Rp3.500
25 03541-0516A-000 SCREW 2 Rp3.500
26 03141-0516B-000 SCREW 2 Rp3.500
27 03541-0516A-000 SCREW 4 Rp3.500
28 08316-1006A-000 NUT 1 Rp2.000
29 73311M74L20-R8R
SUB: 73311B74L00NR8R		 PANEL,INSTRUMENT CLUST (BROWN) 1 Rp95.500
30 09409-08349-000
SUB: 09409B08342N000		 •CLIP 7 Rp4.500
31 73314-62J00-000 SEAL,I/P CLUSTER 1 Rp34.000
32 73831-74L00-V6N
SUB: 73831B74L00NV6N		 COVER,DRVR OUTSIDE (BEIGE) 1 Rp14.500
33 73410-77M00-V6N
SUB: 73410B77M00NV6N		 BOX,GLOVE (BEIGE) 1 Rp436.500
34 73413M65D00-000 •CUSHION,GLOVE BOX LID 2 Rp6.500
35 73430-63J02-V6N •LOCK,GLOVE BOX (BEIGE) 1 Rp342.000
36 02142-0412A-000 •SCREW 2 Rp10.500
37 73800-77M00-HCK
SUB: 73800B77M00NHCK		 BOX ASSY,I/P CENTER UPPER (BROWN) 1 Rp154.000
38 09409-08349-000
SUB: 09409B08342N000		 •CLIP 5 Rp4.500
39 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
40 73811-59R00-V6N COVER,STEERING COLUMN HOLE (BEIGE) 1 Rp114.000
41 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
42 73835-59R00-V6N BEZEL,I/P SWITCH (BEIGE) 1 Rp10.500
43 73851-68L00-ZML
SUB: 73851B68L00NZML		 ORNAMENT,I/P DRVR OUTSIDE (SILVER) 1 Rp41.500
44 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
45 73852-74L00-ZML
SUB: 73852B74L00NZML		 ORNAMENT,I/P ASST OUTSIDE (SILVER) 1 Rp108.500
46 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
47 73853-59R00-V6N
SUB: 73853B71L00NV6N		 COVER,I/P CTR DRVR SIDE(BEIGE) 1 Rp50.500
48 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
49 73854-59R00-V6N
SUB: 73854B71L00NV6N		 COVER,I/P CTR ASST SIDE (BEIGE) 1 Rp50.500
50 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
51 73871-68L11-R8R GARNISH,I/P SIDE RH (BROWN) 1 Rp55.000
52 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
53 73872-68L00-R8R
SUB: 73872B68L00NR8R		 GARNISH,I/P SIDE LH (BROWN) 1 Rp56.500
54 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
55 09148-05045-000
SUB: 09148B05045N000		 NUT 1 Rp4.000
56 03141-0516B-000 SCREW 2 Rp3.500
57 73910-71L00-R8R DOOR ASSY,PASSENGER AIR BAG (BROWN) 1 Rp3.173.500 W_PAS_AB
58 09409-08349-000
SUB: 09409B08342N000		 •CLIP 9 Rp4.500 W_PAS_AB
59 73920-58M00-000 HOUSING ASSY, PASSENGER AIR BAG 1 Rp3.745.000
60 01551-0816C-000 BOLT 2 Rp17.500 W_PAS_AB
61 02162-0612A-000 SCREW 2 Rp11.000 W_PAS_AB
62 03141-0516B-000 SCREW 2 Rp3.500 W_PAS_AB
63 36691-68L00-000 WIRE, PASSENGER AIR BAG 1 Rp281.000
64 73880-71L03-R8R HOLDER,CUP (BROWN) 1 Rp523.500
65 09148-05045-000
SUB: 09148B05045N000		 NUT 1 Rp4.000
66 03541-0516A-000 SCREW 2 Rp3.500
67 03541-0516A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
