ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

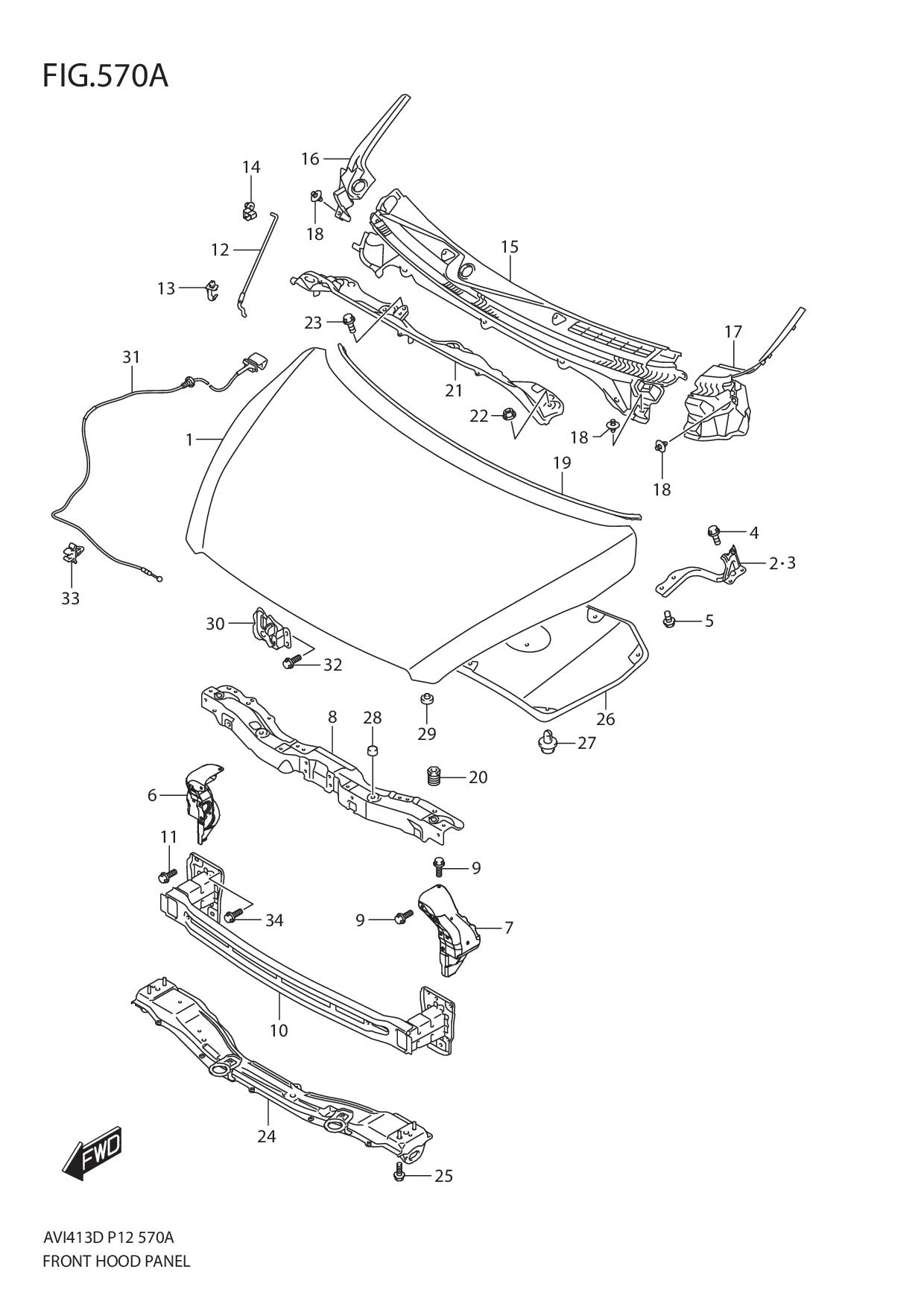

FIG.570A FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-77M00-000 SUB: 57300B77M00N000	PANEL,FRONT HOOD	1	Rp2.351.000
2	57410-83K00-000 SUB: 57410B83K00N000	HINGE,FRONT HOOD RH	1	Rp71.500
3	57420-83K00-000 SUB: 57420B83K00N000	HINGE,FRONT HOOD LH	1	Rp71.500
4	01550-0612B-000	BOLT	4	Rp16.500
5	01550-0616A-000	BOLT	4	Rp3.500
6	58110-74L00-000 SUB: 58110B74L00N000	BRACE,LAMP SUPPORT RH	1	Rp239.500
7	58120-74L00-000 SUB: 58120B74L00N000	BRACE,LAMP SUPPORT LH	1	Rp247.000
8	58230-77M01-000	MEMBER,HOOD LOCK	1	Rp368.000
9	01550-0816A-000 SUB: 01550B0816AN000	BOLT	4	Rp6.000
10	58270-59R00-000	MEMBER,FR BUMPER	1	Rp618.000
11	01550-0816A-000 SUB: 01550B0816AN000	BOLT	5	Rp6.000
12	72310M74L00-000 SUB: 72310B74L00N000	STAY,FRONT HOOD	1	Rp31.000
13	72312-67LG0-000 SUB: 72312B67LG0N000	HOLDER,FRONT HOOD STAY	1	Rp7.500
14	09209M09L02-000	LINKAGE	1	Rp4.500
15	72330-77M00-5PK SUB: 72330B77M00N5PK	GARNISH ASSY,COWL TOP (BLACK)	1	Rp287.500
16	72340-59R50-5PK SUB: 72340B60M00N5PK	GARNISH,COWL TOP SIDE RH (BLACK)	1	Rp73.500
17	72360-59R50-5PK SUB: 72360B60M00N5PK	GARNISH,COWL TOP SIDE LH (BLACK)	1	Rp79.000
18	09409M07L02-5PK	CLIP (BLACK)	9	Rp7.500
19	72362-54L00-000	SEAL,HOOD REAR	1	Rp305.500
20	72372-63J00-000 SUB: 72372B63J00N000	CUSHION,FRONT HOOD FRONT	2	Rp8.000
21	72380-77M00-000 SUB: 72380B77M00N000	PANEL,FR COWL UPPER	1	Rp485.000
22	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
23	01550-0612B-000	BOLT	1	Rp16.500
24	72390-74L00-000 SUB: 72390B74L00N000	CROSSMEMBER,FRONT LOWER	1	Rp817.000
25	09103-08288-000	BOLT (8X25)	4	Rp25.000
26	72440M60M00-000 SUB: 72440B60M00N000	SILENCER,FRONT HOOD	1	Rp229.500
27	09409-07340-000	CLIP	12	Rp17.500
28	09321-10023-000 SUB: 09321B10023N000	CUSHION	2	Rp6.000
29	09321-07003-000 SUB: 09321B07003N000	CUSHION	2	Rp5.500
30	82160-77M00-000 SUB: 82160B77M00N000	LATCH,HOOD	1	Rp70.500
31	82160-77M00-000 SUB: 82160B77M00N000	CABLE,HOOD LATCH RELEASE	1	Rp70.500
32	01550-0616A-000	BOLT	3	Rp3.500
33	76238M70F00-000	CLAMP	5	Rp5.000
34	01550-0820A-000 SUB: 01550B0820AN000	BOLT	2	Rp5.500
