ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

FIG.840A SEAT BELT

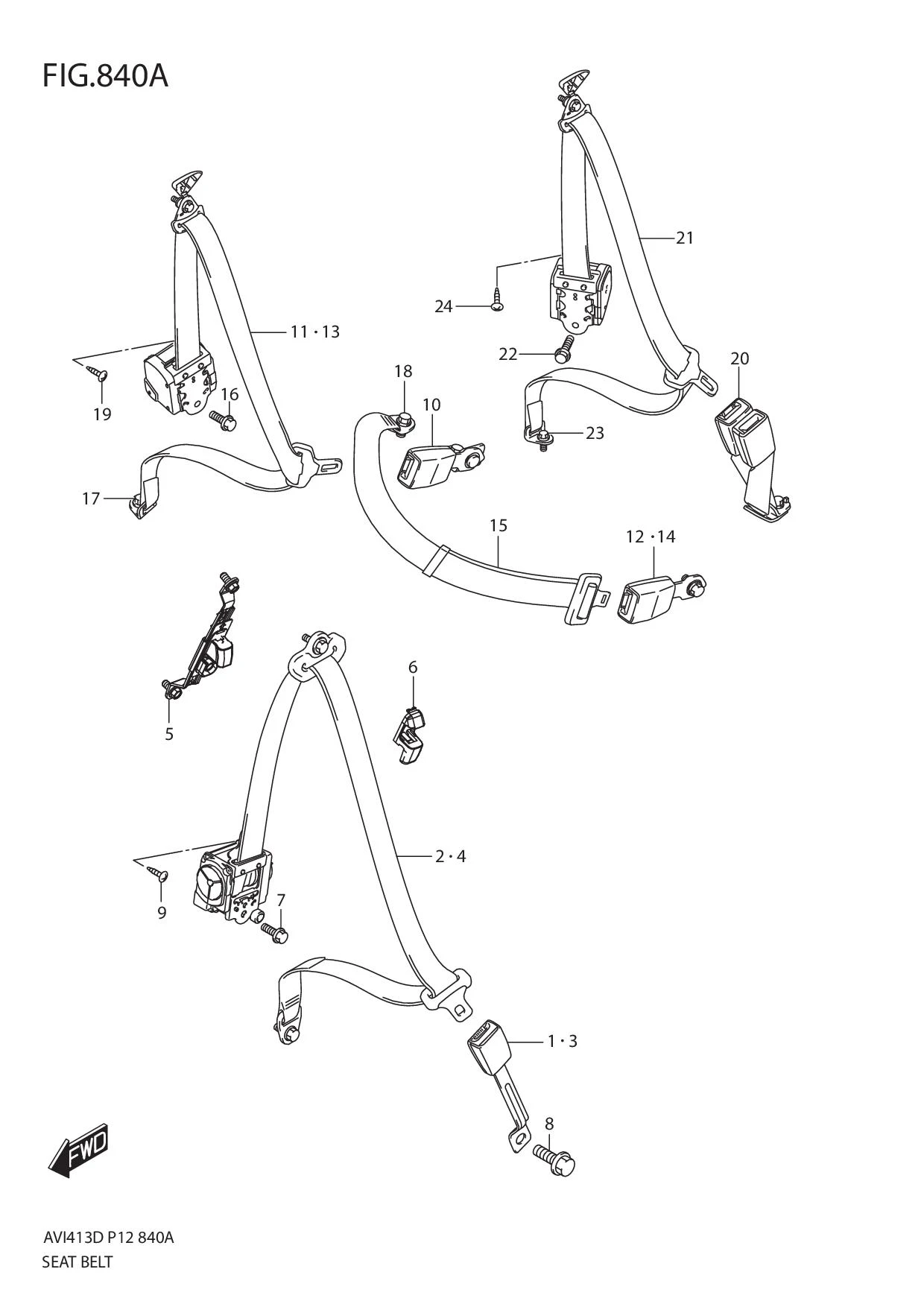

FIG.840A SEAT BELT
No No. Part Description Qty Price Per Pcs Remarks
1 84910M60M70-V6N BUCKLE ASSY,FR BELT RH (BEIGE) 1 Rp296.500
2 84920M60M60-V6N TONGUE ASSY,FR BELT RH (BEIGE) 1 Rp2.182.500 GL,GLX
3 84910M60M60-V6N BUCKLE ASSY,FR BELT LH (BEIGE) 1 Rp173.500
4 84940M60M60-V6N TONGUE ASSY,FR BELT LH (BEIGE) 1 Rp2.182.500 GL,GLX
5 84990M83P00-V6N ADJUSTER,FR SHOULDER (BEIGE) 2 Rp274.500 GL,GLX
6 84991-79K00-V6N COVER,SHOULDER ADJUSTER (BEIGE) 2 Rp130.500 GL,GLX
7 09103M11002-000 BOLT (7/16X22) 2 Rp7.500
8 09117M11002-000 BOLT (11X20) 2 Rp19.000
9 02142-0612A-000 SCREW 2 Rp4.000
10 84950M60M00-V6N BUCKLE ASSY,RR BELT RH (BEIGE) 1 Rp115.000
11 84960M60M00-V6N TONGUE ASSY,RR BELT RH (BEIGE) 1 Rp507.500
12 84970M60M00-V6N BUCKLE ASSY,RR BELT LH (BEIGE) 1 Rp115.000
13 84980M60M00-V6N TONGUE ASSY.RR BELT LH (BEIGE) 1 Rp507.500
14 84975M60M00-V6N BUCKLE ASSY,RR BELT CENTER (BEIGE) 1 Rp115.000
15 84985M60M00-V6N TONGUE ASSY,RR BELT CENTER (BEIGE) 1 Rp154.500
16 09103M11002-000 BOLT (7/16X22) 2 Rp7.500
17 09103M11002-000 BOLT (7/16X22) 2 Rp7.500
18 09103M11002-000 BOLT (7/16X22) 1 Rp7.500
19 02142-0612A-000 SCREW 2 Rp4.000
20 84971M58R00-V6N BUCKLE ASSY,3RD (BEIGE) 1 Rp228.000 GL,GLX
21 84972M60M00-V6N TONGUE ASSY,3RD BELT RH (BEIGE) 2 Rp507.500
22 09103M11002-000 BOLT (7/16X22) 2 Rp7.500
23 09103M11002-000 BOLT (7/16X22) 2 Rp7.500
24 02142-0612A-000 SCREW 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
