ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

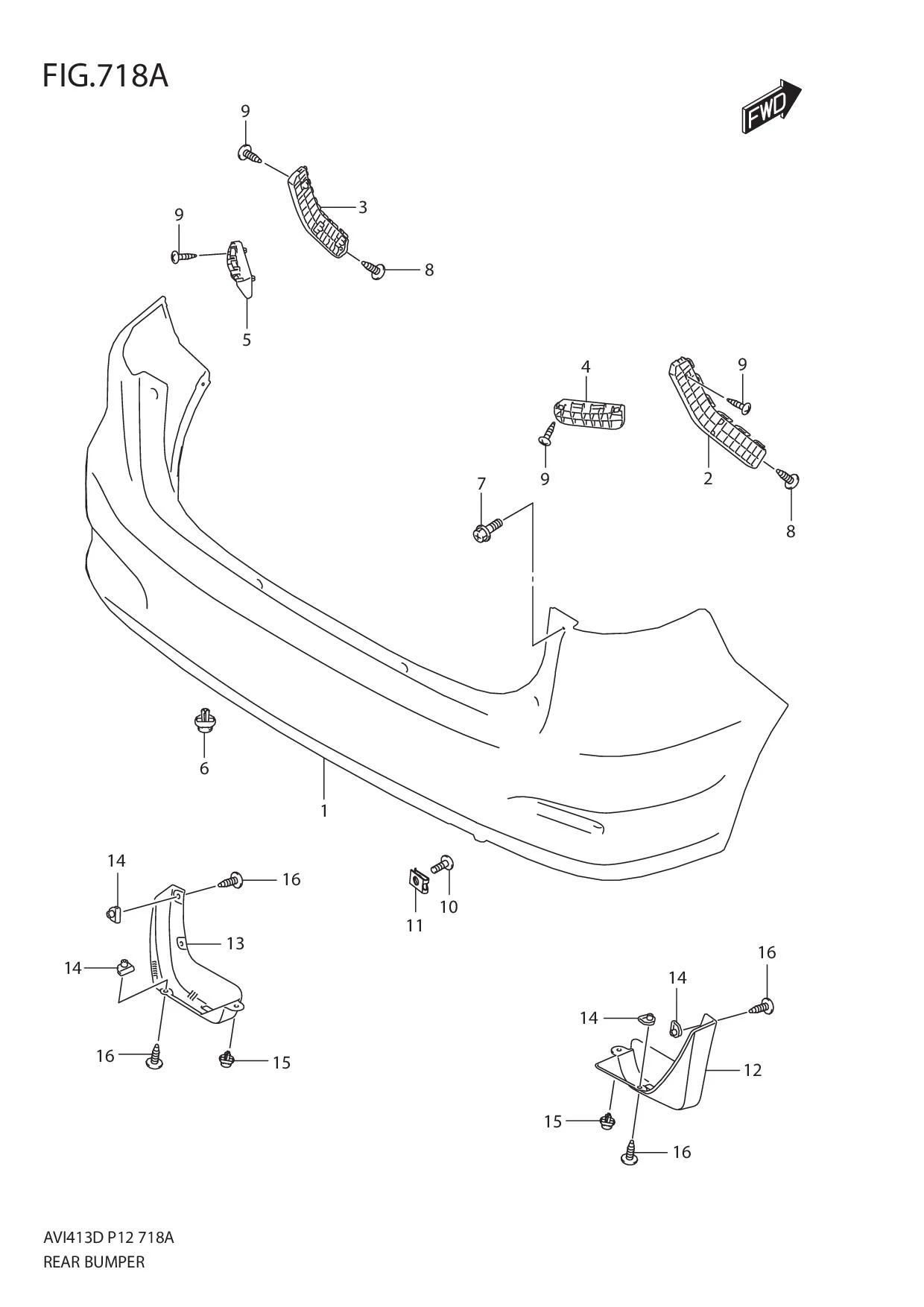

FIG.718A REAR BUMPER

FIG.718A REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	71811-77MK0-799	BUMPER,REAR (LOCAL)	1	Rp1.711.000	2 HOLES FOR PARKING SENSOR
1-1	71811M60MB0-799	BUMPER,REAR (IMPORT)	1	Rp1.802.500	4 HOLES FOR PARKING SENSOR
2	71821-60M00-000 SUB: 71821B60M00N000	HOLDER,RR BUMPER SIDE RH	1	Rp26.500
3	71822-60M00-000 SUB: 71822B60M00N000	HOLDER,RR BUMPER SIDE LH	1	Rp26.500
4	71823-60M00-000 SUB: 71823B60M00N000	HOLDER,RR BUMPER SIDE RR RH	1	Rp16.500
5	71824-60M00-000 SUB: 71824B60M00N000	HOLDER,RR BUMPER SIDE RR LH	1	Rp16.500
6	09409-08327-000	CLIP	4	Rp15.000
7	02162-0616A-000	BOLT	4	Rp3.000
8	03241-0616E-000	SCREW	2	Rp19.500
9	03541-0512B-000 SUB: 03541B0512BN000	SCREW	10	Rp4.000
10	09136-05068-000	SCREW (5X20)	1	Rp15.000
11	09148-05047-000 SUB: 09148B05047N000	NUT	1	Rp3.500
12	72231-59R00-5PK	FLAP,MUD REAR RH (BLACK)	1	Rp382.000	GL,GLX
13	72241-59R00-5PK	FLAP,MUD REAR LH (BLACK)	1	Rp382.000	GL,GLX
14	09148-05028-000	NUT	6	Rp13.000	GL,GLX
15	09409-07340-000	CLIP	2	Rp17.500	GL,GLX
16	09136-05068-000	SCREW (5X20)	6	Rp15.000	GL,GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
