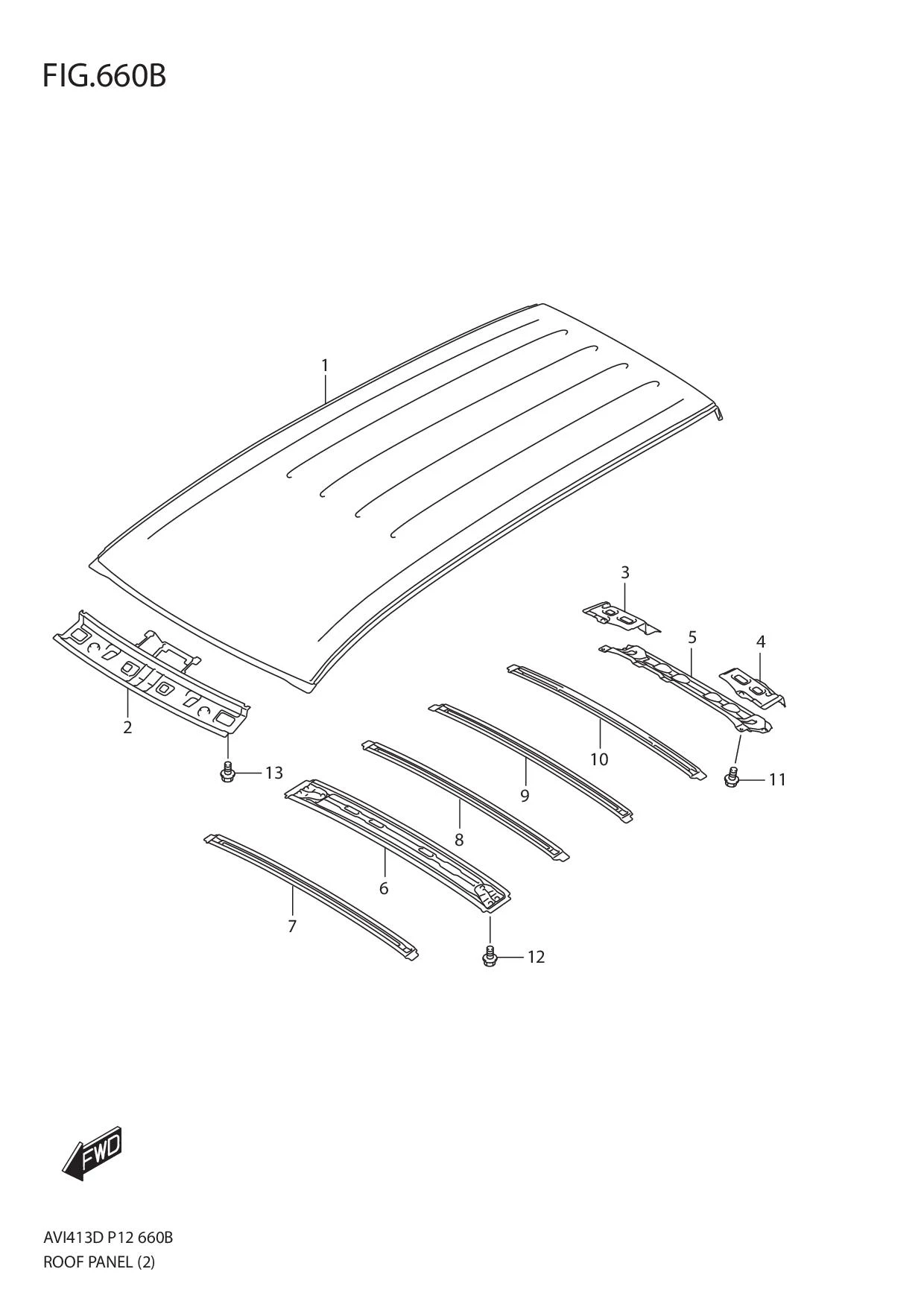

FIG.660B ROOF PANEL (GL,GLX)

FIG.660B ROOF PANEL (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65111-60M00-000 SUB: 65111B60M00N000	PANEL,ROOF	1	Rp3.137.000
2	65120-77M10-000 SUB: 65120B77M10N000	MEMBER,ROOF FRONT INNER	1	Rp798.500
3	65132-60M00-000 SUB: 65132B60M00N000	REINF,ROOF REAR SIDE RH	1	Rp126.500
4	65133-60M00-000 SUB: 65133B60M00N000	REINF,ROOF REAR SIDE LH	1	Rp126.500
5	65170-60M00-000 SUB: 65170B60M00N000	MEMBER,ROOF BACK LOWER	1	Rp381.000
6	65150-77M00-000 SUB: 65150B77M00N000	MEMBER ROOF CTR INNER	1	Rp802.500
7	65162-60M00-000	MEMBER,ROOF PANEL CTR NO.2	1	Rp165.000
8	65163-60M00-000	MEMBER,ROOF PANEL CTR NO.3	1	Rp231.500
9	65164-60M00-000	MEMBER,ROOF PANEL CTR NO.4	1	Rp231.500
10	65165-60M00-000	MEMBER,ROOF PANEL CTR NO.5	1	Rp231.500
11	01550-0612B-000	BOLT	4	Rp16.500
12	01550-0612B-000	BOLT	4	Rp16.500
13	01550-0612B-000	BOLT	2	Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
