ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

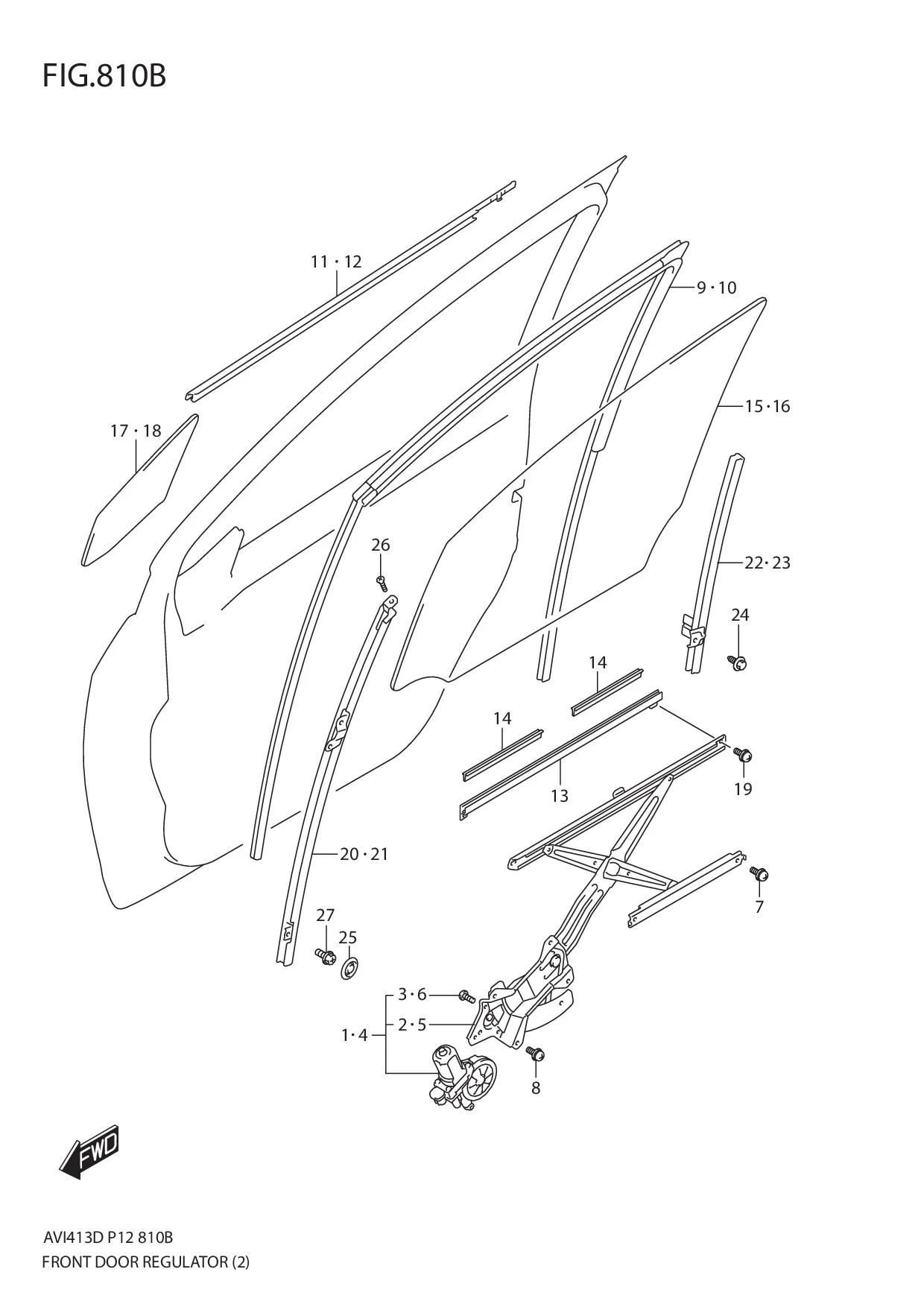

FIG.810B FRONT DOOR REGULATOR (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	83401-77M01-000 SUB: 83401B77M01N000	REGLATOR ASSY,WINDOW RH	1	Rp875.500
2	83410-77M00-000 SUB: 83410B77M00N000	•REGLATOR,WINDOW RH	1	Rp378.500
3	09139-05063-000	•SCREW (5X11)	3	Rp16.000
4	83402-77M01-000 SUB: 83402B77M01N000	REGLATOR ASSY,WINDOW LH	1	Rp875.500
5	83440-77M00-000 SUB: 83440B77M00N000	•REGLATOR,WINDOW LH	1	Rp378.500
6	09139-05063-000	•SCREW (5X11)	3	Rp16.000
7	02112M7610A-000	SCREW	4	Rp5.500
8	02112M7610A-000	SCREW	4	Rp5.500
9	83661-77M00-000 SUB: 83661B77M00N000	RUN,FRONT DOOR GLASS RH	1	Rp251.000
10	83665-77M00-000 SUB: 83665B77M00N000	RUN,FRONT DOOR GLASS LH	1	Rp251.000
11	83811-77M00-000 SUB: 83811B77M00N000	WEATHERSTRIP,DOOR OUT RH	1	Rp58.000
12	83821-77M00-000 SUB: 83821B77M00N000	WEATHERSTRIP,DOOR OUT LH	1	Rp58.000
13	83610-62B00-000	CHANNEL,FR GLASS BOTTOM	2	Rp152.500
14	83691M76G00-000	RUBBER,FR CLASS BOTTOM CHANNEL	4	Rp8.000
15	84501-77M00-000 SUB: 84501B77M00N000	GLASS,FRONT DOOR WINDOW RH	1	Rp243.000
16	84502-77M00-000 SUB: 84502B77M00N000	GLASS,FRONT DOOR WINDOW LH	1	Rp243.000
17	84521-77M00-000 SUB: 84521B77M00N000	GLASS,FRONT DOOR FR WINDOW RH	1	Rp47.500
18	84526-77M00-000 SUB: 84526B77M00N000	GLASS,FRONT DOOR FR WINDOW LH	1	Rp47.500
19	02112M7610A-000	SCREW	4	Rp5.500
20	81710-77M10-000	SASH,FRONT DOOR FRONT RH	1	Rp515.500
21	81720-77M10-000	SASH,FRONT DOOR FRONT LH	1	Rp515.500
22	81730-77M00-000	SASH,FR DOOR RR RH	1	Rp177.500
23	81740-77M00-000	SASH,FR DOOR RR LH	1	Rp177.500
24	09122-76003-000	SCREW (6X16)	2	Rp15.000
25	09250-25007-000	CAP (OD:33.5)	2	Rp10.500
26	02122M0512A-000	SCREW	2	Rp3.500
27	02162-0612A-000	SCREW	2	Rp11.000
