ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

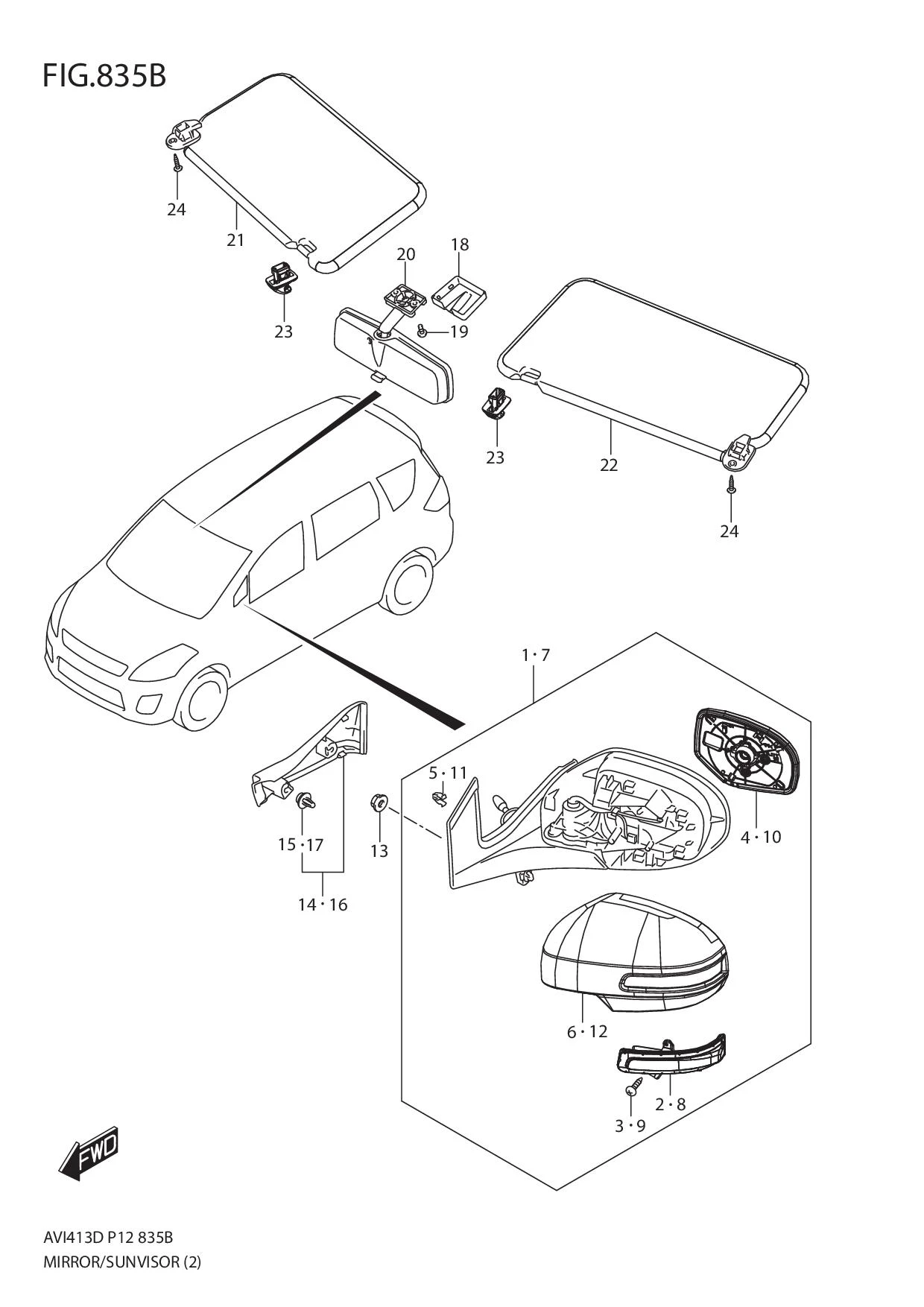

FIG.835B MIRROR/SUNVISOR (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	84701M60MD2-Z2S SUB: 84701M60MD0-Z2S	MIRROR ASSY,OUT RH (SILVER)	1	Rp3.003.500
1-3	DISCONTINUE SUB: 84701M60MD0-26U	MIRROR ASSY,OUT RH (WHITE)	1	-
1-1	84701M60MD2-ZTN SUB: 84701M60MD0-ZTN	MIRROR ASSY,OUT RH (GRAY)	1	Rp3.159.500
2	36410M72M10-000	•LAMP ASSY,SIDE TURN SIG RH	1	Rp754.000
3	84717M74LA0-000	•SCREW	2	Rp4.500
4	84730-77MB1-000 SUB: 84730-77MB0-000	•GLASS,OUT REAR VIEW RH	1	Rp145.500
5	09409-06324-000	•CLIP	2	Rp13.500
6	84718-77M00-000	•COVER,MIRROR VISOR RH	1	Rp182.000	PAINT TO MATCH
7-1	84702M60MD2-ZTN SUB: 84702M60MD0-ZTN	MIRROR ASSY,OUT LH (GRAY)	1	Rp3.159.500
7-2	84702M60MD2-Z2S SUB: 84702M60MD0-Z2S	MIRROR ASSY,OUT LH (SILVER)	1	Rp3.003.500
7-3	DISCONTINUE SUB: 84702M60MD0-26U	MIRROR ASSY,OUT LH (WHITE)	1	-
8	36430M72M10-000	•LAMP ASSY,SIDE TURN SIG LH	1	Rp754.000
9	84717M74LA0-000	•SCREW	2	Rp4.500
10	84740M60MB0-000	•GLASS,OUT REAR VIEW LH	1	-
11	09409-06324-000	•CLIP	2	Rp13.500
12	84728-77M00-000	•COVER,MIRROR VISOR LH	1	Rp182.000	PAINT TO MATCH
13	08316-1006A-000	NUT	6	Rp2.000
14	84750-59R10-5PK	GARNISH,SASH BRACKET INNER RH (BLACK)	1	Rp31.000
15	09409-10327-000	•CLIP	2	Rp5.000
16	84790-59R10-5PK	GARNISH,SASH BRACKET INNER LH (BLACK)	1	Rp31.000
17	09409-10327-000	•CLIP	2	Rp5.000
18	84781-77M00-V6N SUB: 84781B77M00NV6N	COVER,INSIDE MIRROR STAY (BEIGE)	1	Rp11.500
19	02142-0516A-000 SUB: 02142B0516AN000	SCREW	2	Rp3.500
20	84703M75J11-V6N	MIRROR ASSY,INSIDE REAR VIEW (BEIGE)	1	Rp223.500
21	84801M75L02-V6N	SUNVISOR ASSY,RH (BEIGE)	1	Rp156.500
22	84802M75L43-V6N	SUNVISOR ASSY,LH (BEIGE)	1	Rp263.500
23	84851-85K00-V6N	HOLDER,SUNVISOR (BEIGE)	2	Rp51.500
24	09139-05061-000	SCREW (5X13)	2	Rp11.500
