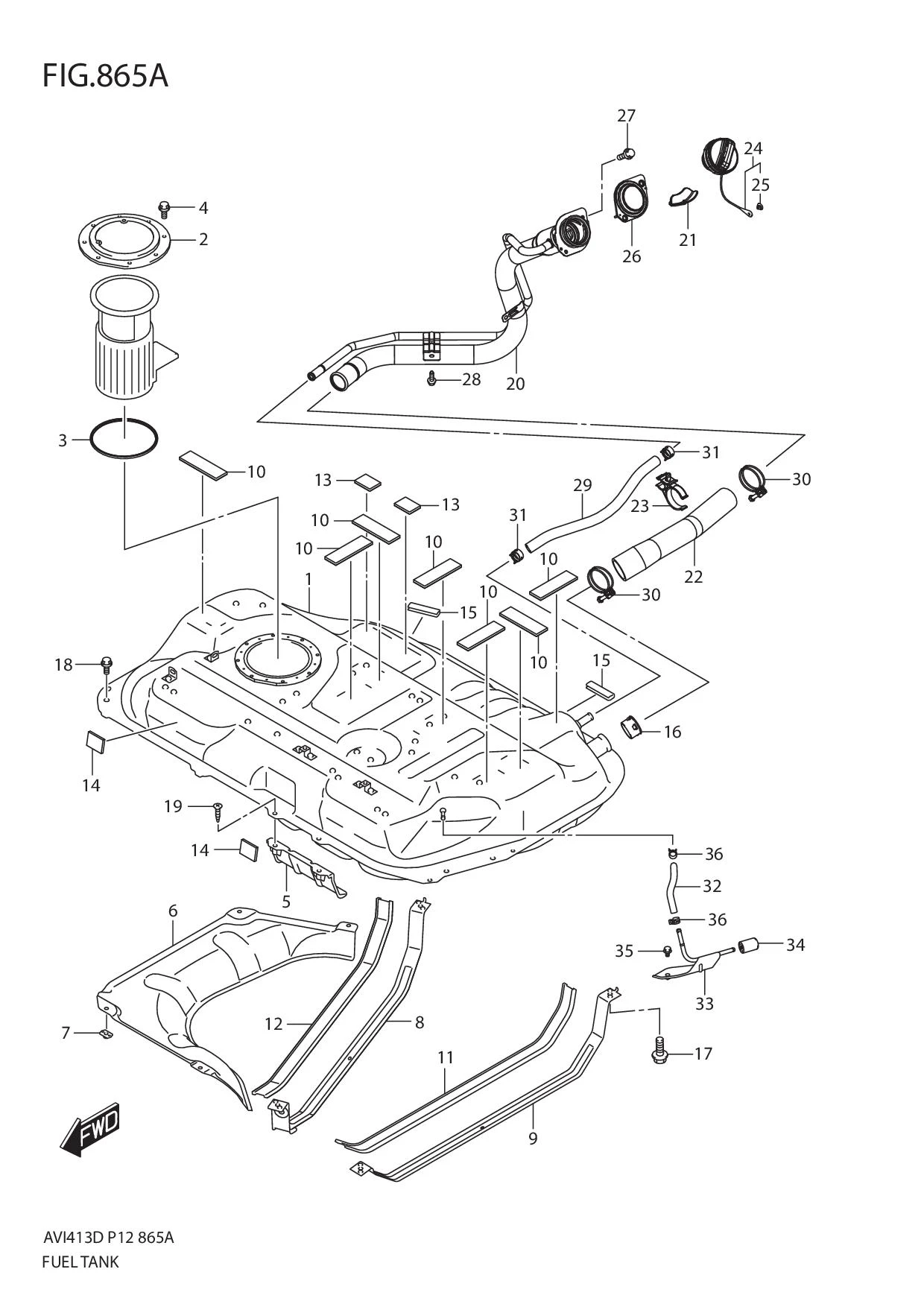

FIG.865A FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs
1	89101M60M11-000 SUB: 89101M60M10-000	TANK,ASSY FUEL	1	Rp3.020.500
2	15121M61J00-000	PLATE,FUEL PUMP	1	Rp23.500
3	15111-77M00-000 SUB: 15111B77M00N000	GASKET,FUEL PUMP	1	Rp34.000
4	01550-0610B-000 SUB: 01550B0610AN000	BOLT	8	Rp3.000
5	89191-60M00-000 SUB: 89191B60M00N000	COVER,FUEL TANK	1	Rp15.500
6	89311-60M00-000 SUB: 89311B60M00N000	PROTECTOR,FUEL TANK	1	Rp94.000
7	09146M06003-000	•NUT	4	Rp7.500
8	89370M60M00-000	BELT,FUEL TANK FIXER RH	1	Rp70.500
9	89381-60M00-000 SUB: 89381B60M00N000	BELT,FUEL TANK FIXER LH	1	Rp15.000
10	89385M60M00-000	PAD,FUEL TANK	7	Rp67.500
11	89385M57L00-000	PAD,FUEL TANK BELT	1	Rp67.500
12	89385M60M00-000	PAD,FUEL TANK BELT	1	Rp67.500
13	89382-60M00-000 SUB: 89382B60M00N000	PAD,FUEL TANK	2	Rp9.000
14	89383-60M00-000 SUB: 89383B60M00N000	PAD,FUEL TANK	2	Rp9.000
15	89445-60G10-000 SUB: 89445B60G10N000	PROTECTOR,TANK FLANGE	2	Rp10.000
16	89280-77A00-000	VALVE,FUEL TANK INLET	1	Rp107.000
17	09118-10078-000 SUB: 09118-10073-000	BOLT (10X30)	4	Rp19.000
18	02162-0610A-000	SCREW	4	Rp5.000
19	03541-0616A-000	SCREW	2	Rp13.500
20	89210M74L20-000	NECK ASSY,FUEL FILLER	1	Rp743.000
21	89232M74L00-000	COVER,FUEL FILLER NECK	1	Rp11.000
22	89241-77M00-000 SUB: 89241M60M00-000	HOSE,FUEL TANK FILLER	1	Rp195.500
23	89242-68L00-000	CLAMP,FILLER & BREATHE	1	Rp40.000
24	89260M60MA0-000	CAP ASSY,FUEL FILLER	1	Rp599.500
25	89267-77K00-000	•CLIP,CAP TETHER	1	Rp36.500
26	89285M58J00-000	PACKING,FUEL FILLER	1	Rp13.500
27	09116-05023-000	BOLT (5X20)	2	Rp18.500
28	DISCONTINUE SUB: 09116-06205-000	BOLT (6X16)	1	-
29	09355-13L03-340 SUB: 09355B13L03N340	HOSE (13X19.8X340)	1	Rp143.500
30	09400-45411-000	CLAMP	2	Rp41.500
31	09401-18406-000 SUB: 09401B18406N000	CLIP	2	Rp18.500
32	18888M75J00-120	HOSE,PURGE	1	Rp13.500
33	89420M60M00-000	PIPE,AIR SUCTION	1	Rp44.500
34	89481M75J00-000	CAP,AIR OUTLET	1	Rp6.500
35	01550-0610B-000 SUB: 01550B0610BN000	BOLT	1	Rp3.000
36	09401-10409-000 SUB: 09401M11415-000	CLIP	2	Rp7.500
