ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73AA HEATER CONTROL FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDING FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEAT FIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANK FIG.893A TOOL FIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNIT FIG.990A COMPRESSOR

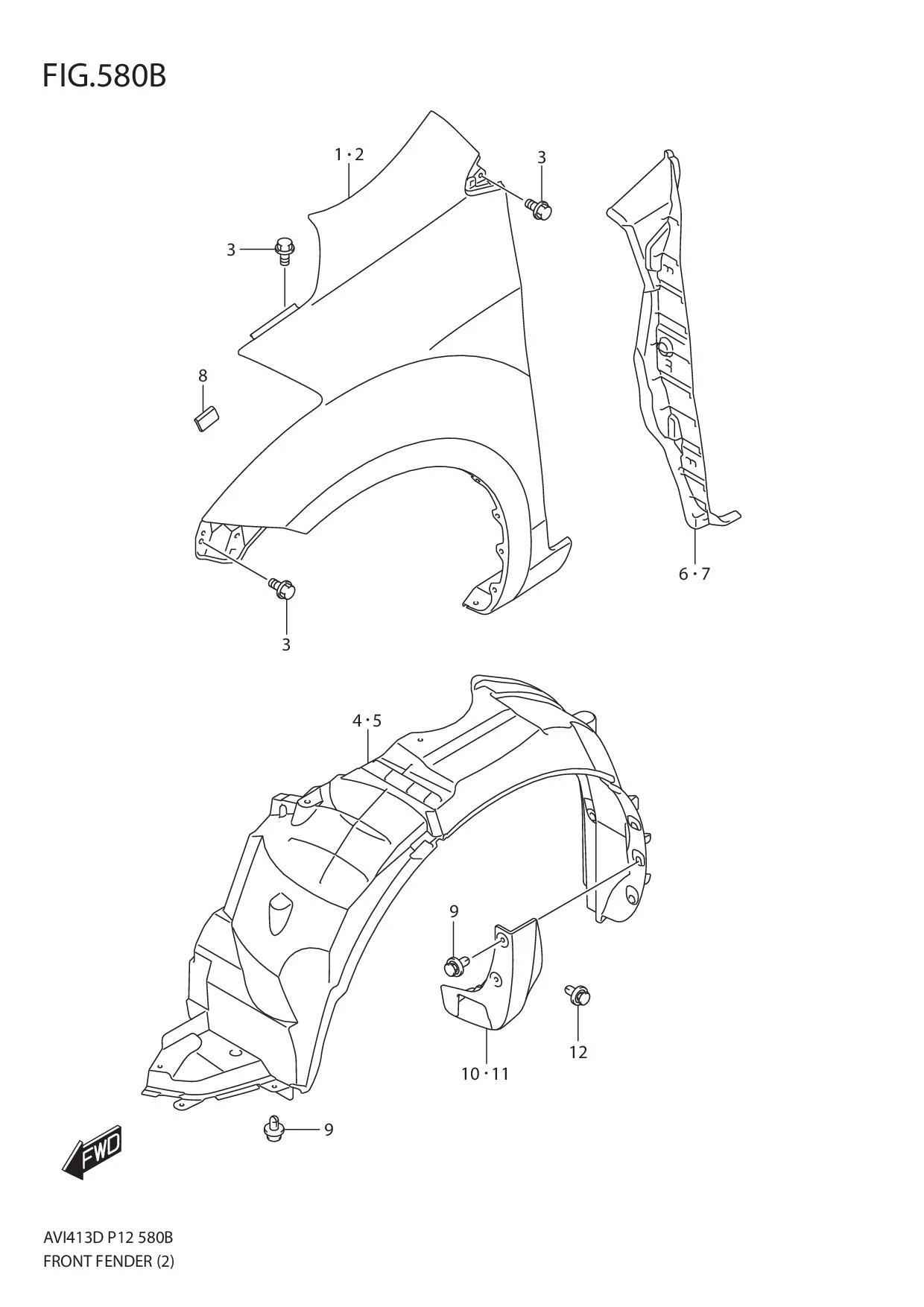

FIG.580B FRONT FENDER (GL,GLX)

FIG.580B FRONT FENDER (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57611-77M10-000	PANEL,FRONT FENDER RH	1	Rp973.000
2	57711-77M10-000	PANEL,FRONT FENDER LH	1	Rp973.000
3	01550-0612B-000	SCREW	12	Rp16.500
4	72321-58R00-000	LINING,FRONT FENDER RH	1	Rp375.000
5	72322-60M00-000 SUB: 72322B60M00N000	LINING,FRONT FENDER LH	1	Rp375.000
6	72351-60M00-000 SUB: 72351B60M00N000	COVER,FRONT FENDER RH	1	Rp22.000
7	72352-60M00-000 SUB: 72352B60M00N000	COVER,FRONT FENDER LH	1	Rp22.000
8	72377-71L00-000 SUB: 72377B71L00N000	CUSHION,FR FENDER	2	Rp11.500
9	09409M07L01-000	CLIP	26	Rp5.000
10	72211-60M10-5PK SUB: 72211B60M00N5PK	FLAP,MAD FRONT RH (BLACK)	1	Rp336.000
11	72221-60M10-5PK SUB: 72221B60M00N5PK	FLAP,MAD FRONT LH (BLACK)	1	Rp336.000
12	09409M07L01-000	CLIP	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
