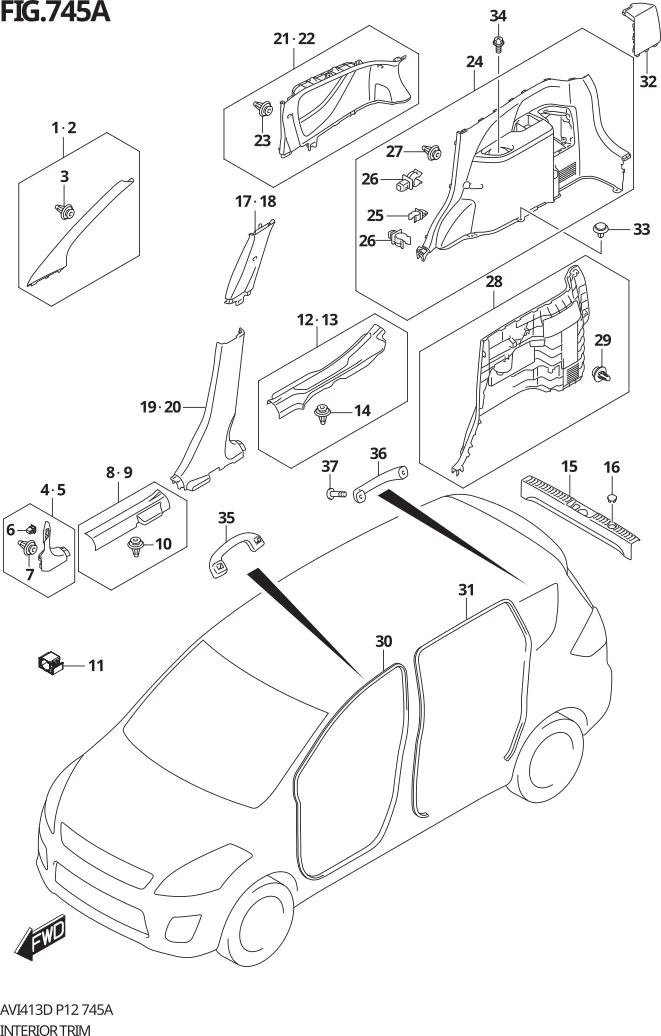

FIG.745A INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	76110-77M00-V6N SUB: 76110B77M00NV6N	TRIM,FRONT PILLAR RH (BEIGE)	1	Rp195.500
2	76120-77M00-V6N SUB: 76120B77M00NV6N	TRIM,FRONT PILLAR LH (BEIGE)	1	Rp195.500
3	09409-10327-000	•CLIP	4	Rp5.000
4	76130-77M00-V6N	TRIM,DASH SIDE RH (BEIGE)	1	Rp103.000
5	76140-77M00-V6N	TRIM,DASH SIDE LH (BEIGE)	1	Rp103.000
6	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
7	09409-10327-000	•CLIP	2	Rp5.000
8	76150-77M00-V6N	SCUFF,SIDE SILL FR RH (BEIGE)	1	Rp44.500
9	76160-77M00-V6N	SCUFF,SIDE SILL FR LH (BEIGE)	1	Rp44.500
10	09409-10327-000	•CLIP	2	Rp5.000
11	76158-71L00-000	CLAMP,SIDE SILL SCUFF	12	Rp34.500
12	76170-77M00-V6N	SCUFF,SIDE SILL REAR RH (BEIGE)	1	Rp59.000
13	76180-77M00-V6N	SCUFF,SIDE SILL REAR LH (BEIGE)	1	Rp59.000
14	09409-10327-000	•CLIP	2	Rp5.000
15	76191-60M10-V6N SUB: 76191B60M10NV6N	TRIM,TAIL END (BEIGE)	1	Rp48.500	GL,GLX
16	76192-60M00-V6N SUB: 76192B60M00NV6N	CAP,TAIL END TRIM	1	Rp5.500
17	76210-77M30-V6N SUB: 76210B77M30NV6N	TRIM,CTR PILLAR UPR RH (BEIGE)	1	Rp133.500	GL,GLX
18	76220-77M30-V6N SUB: 76220B77M30NV6N	TRIM,CTR PILLAR UPR LH (BEIGE)	1	Rp133.500	GL,GLX
19	76231-60M10-V6N SUB: 76231B60M10NV6N	TRIM,CTR PILLAR LOWER RH (BEIGE)	1	Rp222.500	GL,GLX
20	76241-60M10-V6N SUB: 76241B60M10NV6N	TRIM,CTR PILLAR LOWER RH (BEIGE)	1	Rp222.500	GL,GLX
21	76250-77M00-V6N SUB: 76250B77M00NV6N	TRIM,QTR INNER UPR RH (BEIGE)	1	Rp539.500
22	76260-77M00-V6N SUB: 76260B77M00NV6N	TRIM,QTR INNER UPR LH (BEIGE)	1	Rp539.500
23	09409-10327-000	•CLIP	18	Rp5.000
24	76270-77M00-V6N SUB: 76270B77M00NV6N	TRIM,QTR INNER LOWER RH (BEIGE)	1	Rp817.000	GL,GLX
25	09403-08326-000	•CLAMP	2	Rp19.500
26	09403-13317-000	•CLAMP	2	Rp9.000
27	09409-10327-000	•CLIP	4	Rp5.000
28	76280-77M00-V6N SUB: 76280B77M00NV6N	TRIM,QTR INNER LOWER LH (BEIGE)	1	Rp817.000	GL,GLX
29	09409-10327-000	•CLIP	4	Rp5.000
30	76291-77M00-000 SUB: 76291B77M00N000	TRIM,FRONT DOOR OPENING	2	Rp210.000
31	76295-77M00-000 SUB: 76295B77M00N000	TRIM,REAR DOOR OPENING	2	Rp180.000
32	76310-60M00-V6N SUB: 76310B60M00NV6N	LID COMP,JACK (BEIGE)	1	Rp104.500
33	09409-07332-V6N	CLIP (BEIGE)	6	Rp19.000
34	02142-0612A-000 SUB: 02142B0612BN000	SCREW	2	Rp4.000
35	76410-55G02-V6N	GRIP,ASSISTANT (BEIGE)	3	Rp272.500
36	76411-70G00-V6N	GRIP,ASSISTANT (BEIGE)	2	Rp158.000
37	09125-06041-000	SCREW	4	Rp9.500
