ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

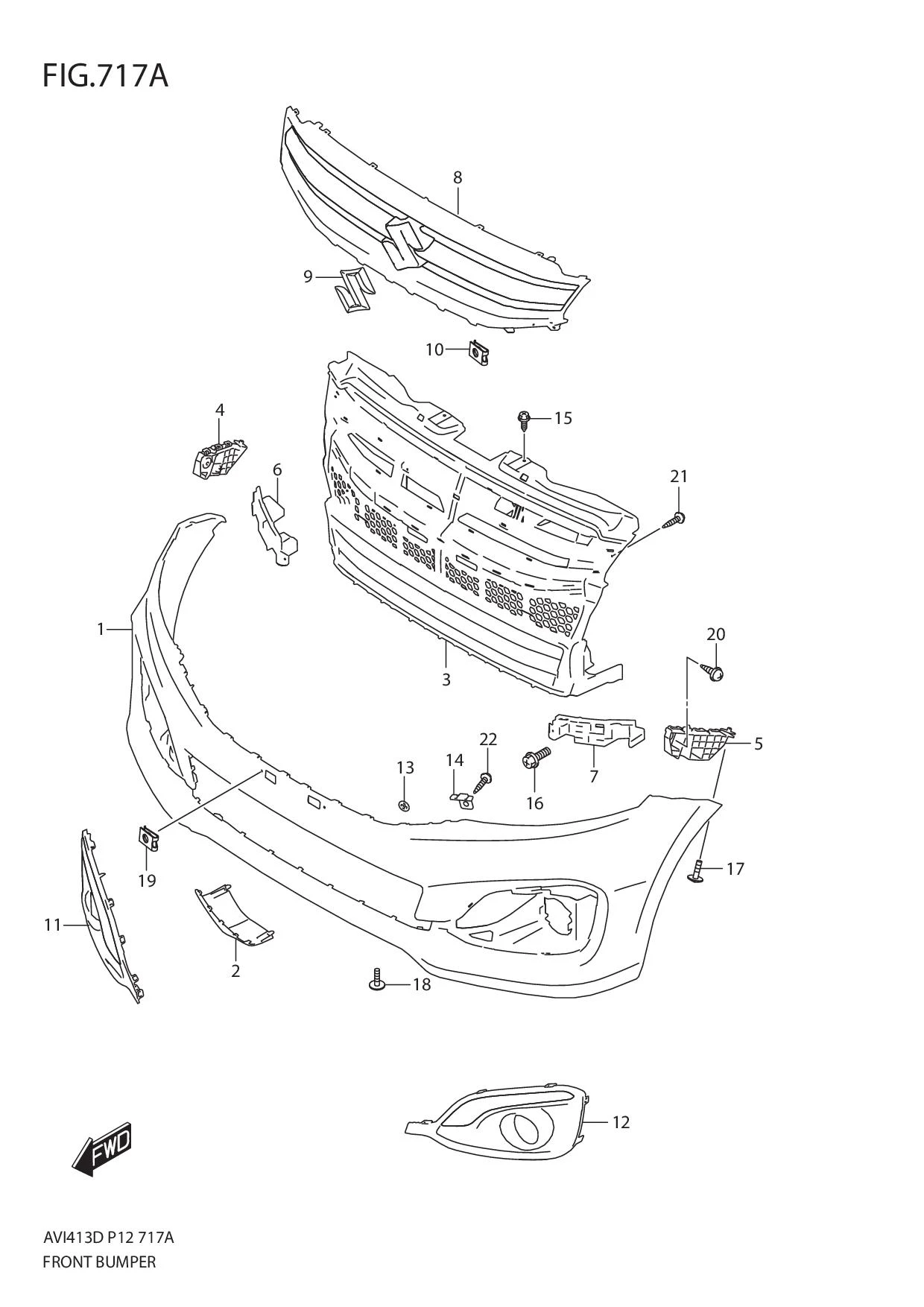

FIG.717A FRONT BUMPER

FIG.717A FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-77MJ0-799 BUMPER,FRONT (LOCAL) 1 Rp1.026.500
2 71712-59R00-799 CAP,FRONT BUMPER (BLACK) 1 Rp18.500
3 71721-77MJ0-5PK GRILLE,RADIATOR LOWER (BLACK) 1 Rp226.500
4 71731-77M10-000
SUB: 71731B77M10N000		 HOLDER,FR BUMPER SIDE RH 1 Rp26.500
5 71732-77M10-000
SUB: 71732B77M10N000		 HOLDER,FR BUMPER SIDE LH 1 Rp26.500
6 71733-60MA0-000 HOLDER,FR BUMPER FR RH 1 Rp45.500
7 71734-60MA0-000 HOLDER,FR BUMPER FR LH 1 Rp45.500
8 71740-59R00-C48 GRILLE,RADIATOR UPPER (CHROME/BLACK) 1 Rp1.060.500 GL,GLX
9 77811-65J00-0PG •EMBLEM,S (CHROME) 1 Rp131.500
10 09148-05047-000
SUB: 09148B05047N000		 •NUT 2 Rp3.500
11 71750-60MC0-C48 BEZEL,FRONT FOG LAMP RH (CHROME/BLACK) 1 Rp123.500 GLX
12 71750-60MC0-C48 BEZEL,FRONT FOG LAMP LH (CHROME/BLACK) 1 Rp123.500 GLX
13 71717-81A01-000 NUT,FR BUMPER NET 2 Rp25.000
14 71746M58R00-000 BRACKET,RADIATOR UPPER GRILLE 2 Rp7.500
15 09122-76006-000 SCREW (6X16) 4 Rp13.000
16 09122-76006-000 SCREW (6X16) 6 Rp13.000
17 09136-05068-000 SCREW (5X20) 2 Rp15.000
18 09136-05068-000 SCREW (5X20) 3 Rp15.000
19 09148-06021-000 NUT 2 Rp27.500
20 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 4 Rp4.000
21 03541-0516A-000 SCREW 3 Rp3.500
22 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
