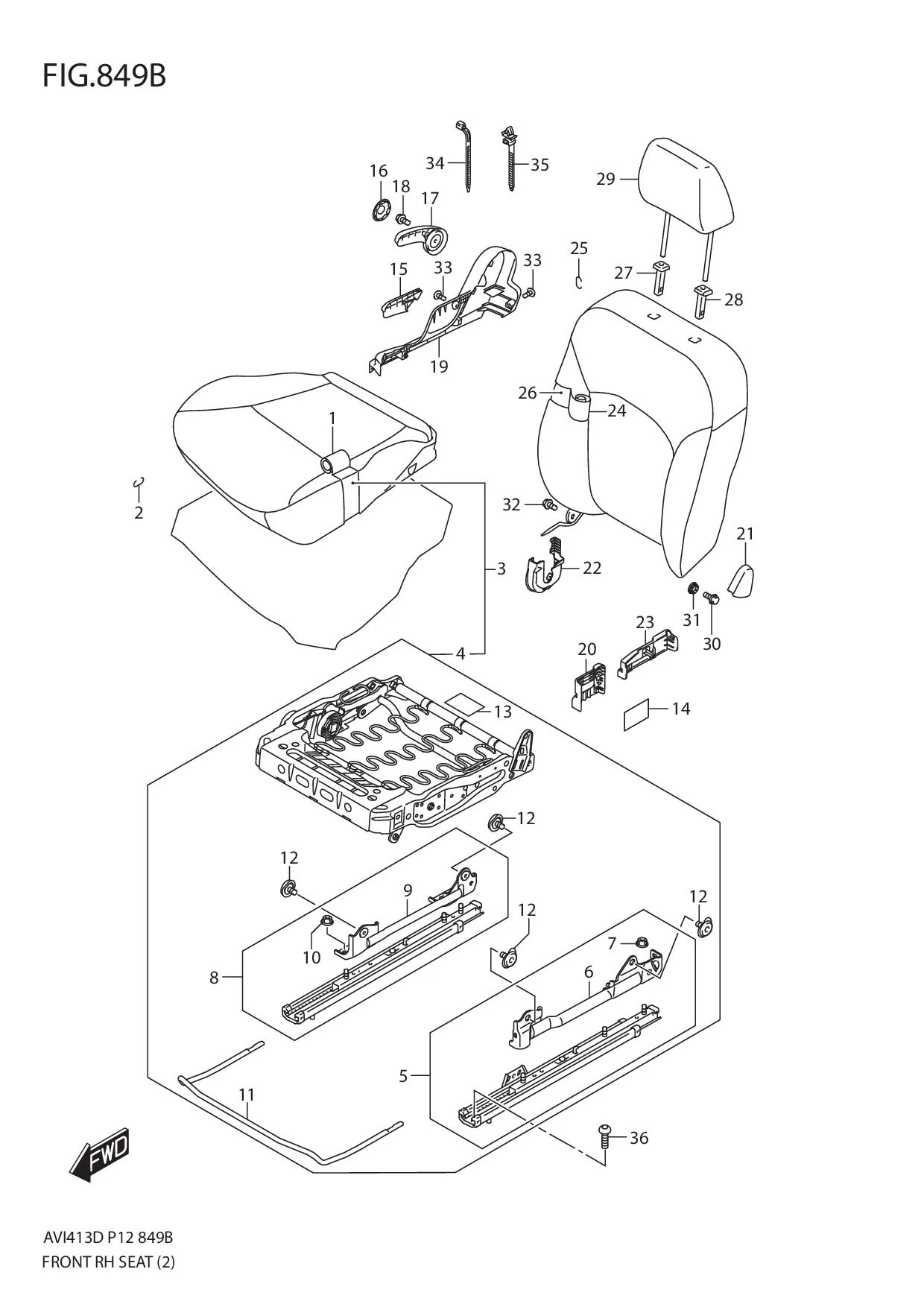

FIG.849B FRONT RH SEAT (GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	85180M60M20-BUZ	TRIM,FR CUSHION RH (BEIGE)	1	Rp687.500
2	09387-19001-000	RING	11	Rp9.000
3	85105M60M20-000	CUSHION SUB ASSY,FR RH	1	Rp4.648.500
4	85103M60M21-000	•FRAME ASSY,FR CUSHION RH	1	Rp4.428.500
5	86601M60M20-000	••ADJUSTER SUB ASSY,INSIDE RH	1	Rp789.000
6	86710M60M20-000	•••RISER,INSIDE RH	1	Rp200.000
7	08316-1008A-000	•••NUT	3	Rp3.500
8	86603M60M20-000	••ADJUSTER SUB ASSY,OUTSIDE RH	1	Rp660.000
9	86730M60M20-000	•••RISER,OUTSIDE RH	1	Rp176.500
10	08316-1008A-000	•••NUT	3	Rp3.500
11	86691M60M20-000	••HANDLE,FR SEAT ADJUSTER	1	Rp173.000
12	86717-63J40-000	••BOLT	4	Rp74.000
13	85169M60M00-000	•SILENCER,FR CUSHION	2	Rp38.000
14	85169M60MA0-000	TAPE,FR CUSHION SIDE	2	Rp12.500
15	85211M68K00-V6N	KNOB,RECLINING RH (BEIGE)	1	Rp13.500
16	85214M63J20-V6N	CAP,LIFTER LEVER (BEIGE)	1	Rp11.000
17	85213M62J20-V6N	LEVER,SEAT LIFTER (BEIGE)	1	Rp54.500
18	01570-0820B-000	BOLT	1	Rp31.000
19	85221M60M00-V6N	COVER,OUTSIDE RH (BEIGE)	1	Rp93.500
20	85224M60M00-V6N	COVER,FR RISER INSIDE RH (BEIGE)	1	Rp14.500
21	85241M75L00-V6N	COVER,FR HINGE OUTSIDE (BEIGE)	1	Rp13.000
22	85222M75L00-V6N	COVER,FR BACK FRAME RH (BEIGE)	1	Rp17.000
23	85243M60M20-V6N	COVER,RISER INSIDE RH (BEIGE)	1	Rp15.000
24	85380M60M10-BUZ	TRIM,FR BACK RH (BEIGE)	1	Rp680.000
25	09387-19001-000	RING	6	Rp9.000
26	85305M60M20-000	BACK SUB ASSY,FR RH	1	Rp1.817.000
27	85341M75J00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp6.500
28	85840M75J00-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp6.500
29	86401M83K00-BU1	HEADRESTRAINT ASSY (BEIGE)	1	Rp277.500
30	85295M58J01-000	BOLT,FR BACK FIX	1	Rp9.000
31	87286M58J10-000	BUSH,CUSHION STAY FIX	1	Rp5.500
32	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
33	03241-0510A-000	SCREW	2	Rp8.000
34	09407M14403-000	CLAMP	2	Rp5.000
35	85191M74L00-000	CLAMP	1	Rp9.000
36	09119-08102-000	BOLT	4	Rp33.000
