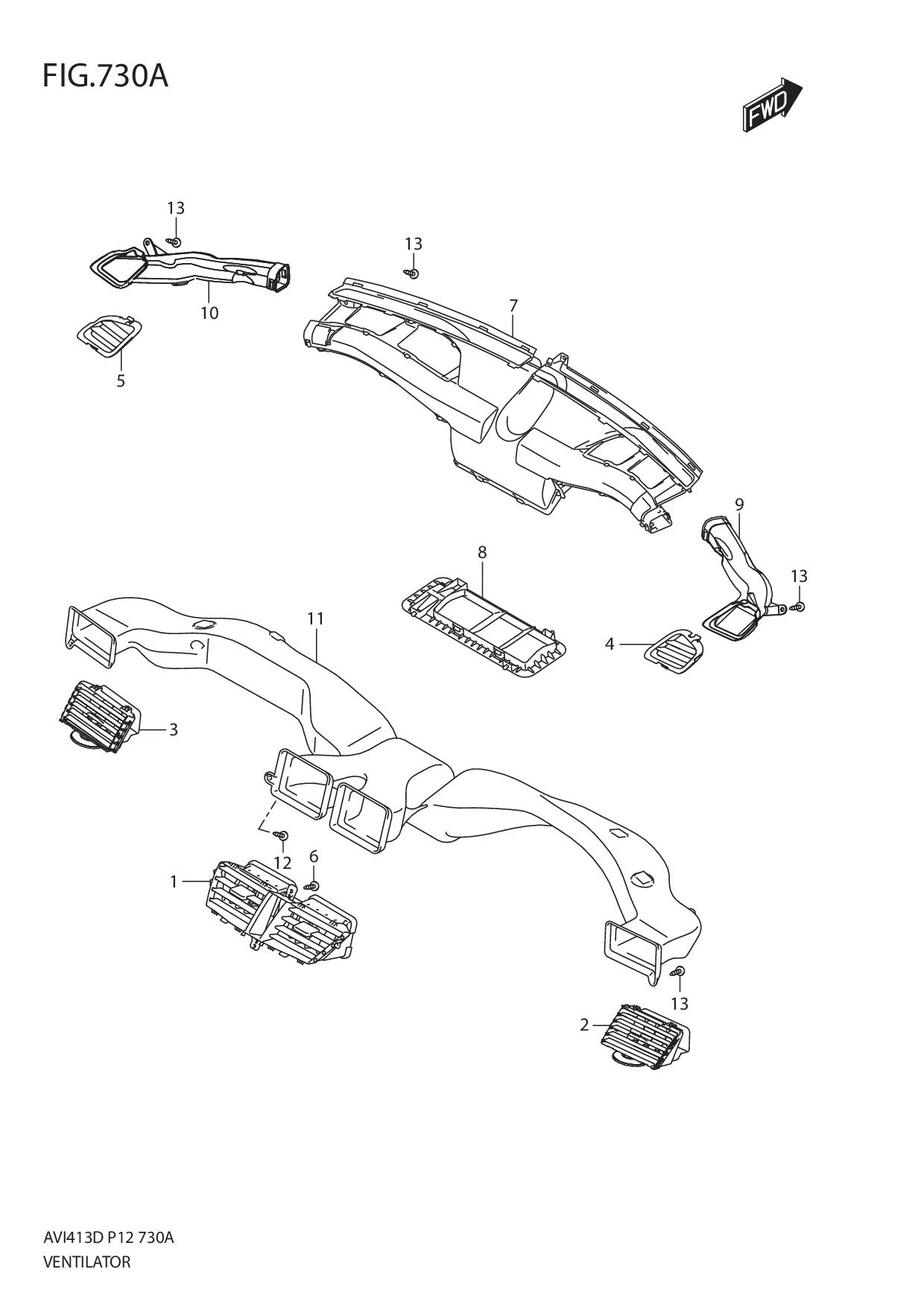

FIG.730A VENTILATOR

FIG.730A VENTILATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610-77M00-R8R SUB: 73610B77M00NR8R	LOUVER,CTR VENT (BROWN)	1	Rp116.000
2	73630-77M00-R8R SUB: 73630B77M00NR8R	LOUVER,SIDE VENT RH (BROWN)	1	Rp92.000
3	73640-77M00-R8R SUB: 73640B77M00NR8R	LOUVER,SIDE VENT LH (BROWN)	1	Rp93.000
4	73651-77M00-R8R SUB: 73651B77M00NR8R	NOZZLE,SIDE DEMISTER RH (BROWN)	1	Rp5.500
5	73652-77M00-R8R SUB: 73652B77M00NR8R	NOZZLE,SIDE DEMISTER LH (BROWN)	1	Rp5.500
6	03541-0412A-000 SUB: 03541B0412AN000	SCREW	2	Rp3.500
7	73661-77M00-000 SUB: 73661B77M00N000	NOZZLE,DFR	1	Rp75.500
8	73662-77M00-000 SUB: 73662B77M00N000	ADAPTER,DFR NOZZLE	1	Rp19.000
9	73681-77M00-000 SUB: 73681B77M00N000	DUCT,DEMISTER RH	1	Rp25.500
10	73691-77M00-000 SUB: 73691B77M00N000	DUCT,DEMISTER LH	1	Rp25.500
11	74620-60M00-000 SUB: 74620B77M00N000	DUCT,VENT	1	Rp149.500
12	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
13	03541-0516A-000	SCREW	7	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
