ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580B FRONT FENDER (GL,GLX)FIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660B ROOF PANEL (GL,GLX)FIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73AA HEATER CONTROLFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.760B ROOF LINING (GL,GLX)FIG.772A ROOF MOLDINGFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800B FRONT DOOR PANEL (GL,GLX)FIG.801B REAR DOOR PANEL (GL,GLX)FIG.805C BACK DOOR PANEL (GLX)FIG.810B FRONT DOOR REGULATOR (GL,GLX)FIG.811B REAR DOOR REGULATOR (GL,GLX)FIG.820B FRONT DOOR LOCK (GL,GLX)FIG.821B REAR DOOR LOCK (GL,GLX)FIG.824B BACK DOOR LOCK (GL,GLX)FIG.835B MIRROR/SUNVISOR (GL,GLX)FIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849B FRONT RH SEAT (GLX)FIG.854B 2ND RH SEAT (GL,GLX)FIG.855A 2ND LH SEATFIG.857A 3RD RH SEAT (GL,GLX)FIG.858A 3RD LH SEAT (GL,GLX)FIG.865A FUEL TANKFIG.893A TOOLFIG.952B AIR CONDITIONER (W_REAR AIR CONDITIONER)FIG.972A COOLING UNITFIG.990A COMPRESSOR

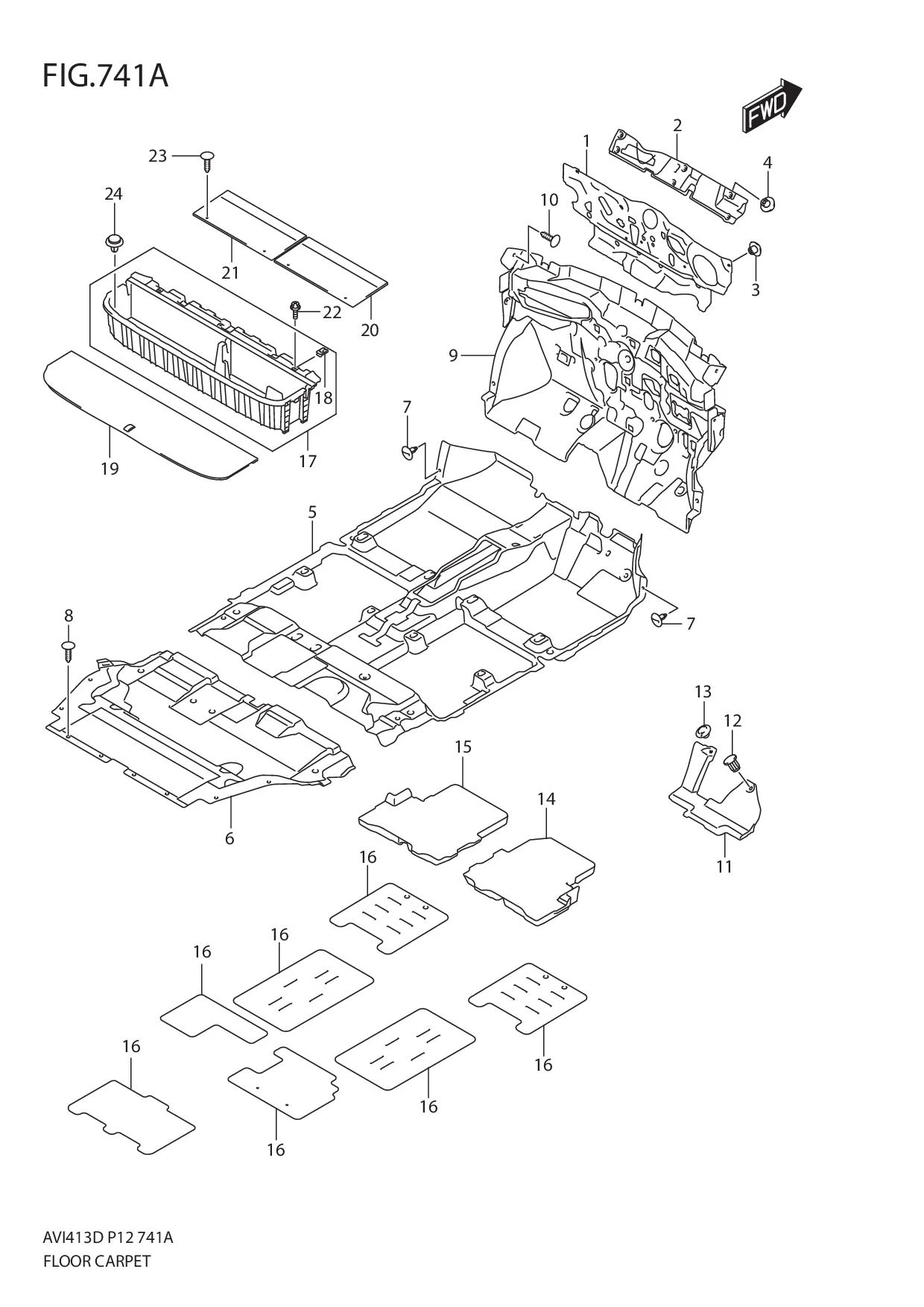

FIG.741A FLOOR CARPET

FIG.741A FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 75280B74L00N000		 SILENCER,DASH OUTER 1 -
2 DISCONTINUE
SUB: 72490B60M00N000		 SILENCER,COWL FRONT 1 -
3 09148-05037-000 CLIP 2 Rp18.000
4 09148-05037-000 CLIP 6 Rp18.000
5 75110M60M32-V6P CARPET,FLOOR (BEIGE) 1 Rp1.642.000 GL,GLX
6 75120M58R00-V6P CARPET REAR FLOOR (BEIGE) 1 Rp550.000 GL,GLX
7 09148-05037-000 CLIP 3 Rp18.000
8 09409-10302-V6N CLIP (BEIGE) 5 Rp18.000
9 75220-77M00-000
SUB: 75220B77M00N000		 SILENCER,DASH PANEL 1 Rp833.000
10 09409-10302-5PK CLIP,DASH SIDE (BLACK) 4 Rp18.500
11 75411-68L00-000
SUB: 75411B68L00N000		 PAD,DASH LOWER RH 1 Rp416.000
12 75412-68L00-000
SUB: 75412B68L00N000		 STOPPER,ACCEL PEDAL 1 Rp420.500
13 09148-05037-000 GROMMET 2 Rp18.000
14 75531-60M00-000
SUB: 75531B60M00N000		 PAD,MAIN FLOOR UPPER RR RH 1 Rp1.228.500
15 75541-60M00-000
SUB: 75541B60M00N000		 PAD,MAIN FLOOR UPPER RR LH 1 Rp1.228.500
16 99611-60A01-000 SHEET,SILENCER,800X1000X3 0 Rp1.210.000 CUT AS REQUIRED
17 75420-77M00-V6N
SUB: 75420B77M00NV6N		 BOX,LUGGAGE FLOOR (BEIGE) 1 Rp584.000 GL,GLX
18 09148-06021-000 •NUT 4 Rp27.500 GL,GLX
19 75440-77M00-GMW
SUB: 75440B77M00NGMW		 COVER,LUGGAGE FLOOR (BEIGE) 1 Rp292.500 GL,GLX
20 75450M58R00-V6P FLAP,LUGGAGE BOX RH (BEIGE) 1 Rp227.500 GL,GLX
21 75460M58R00-V6P FLAP,LUGGAGE BOX LH (BEIGE) 1 Rp229.500 GL,GLX
22 09122-76006-000 SCREW (6X16) 2 Rp13.000 GL,GLX
23 09409-06315-V6N CLIP,LUGGAGE BOX FLAP (BEIGE) 4 Rp16.000 GL,GLX
24 09409-07332-V6N CLIP,LUGGAGE BOX (BEIGE) 4 Rp19.000 GL,GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
