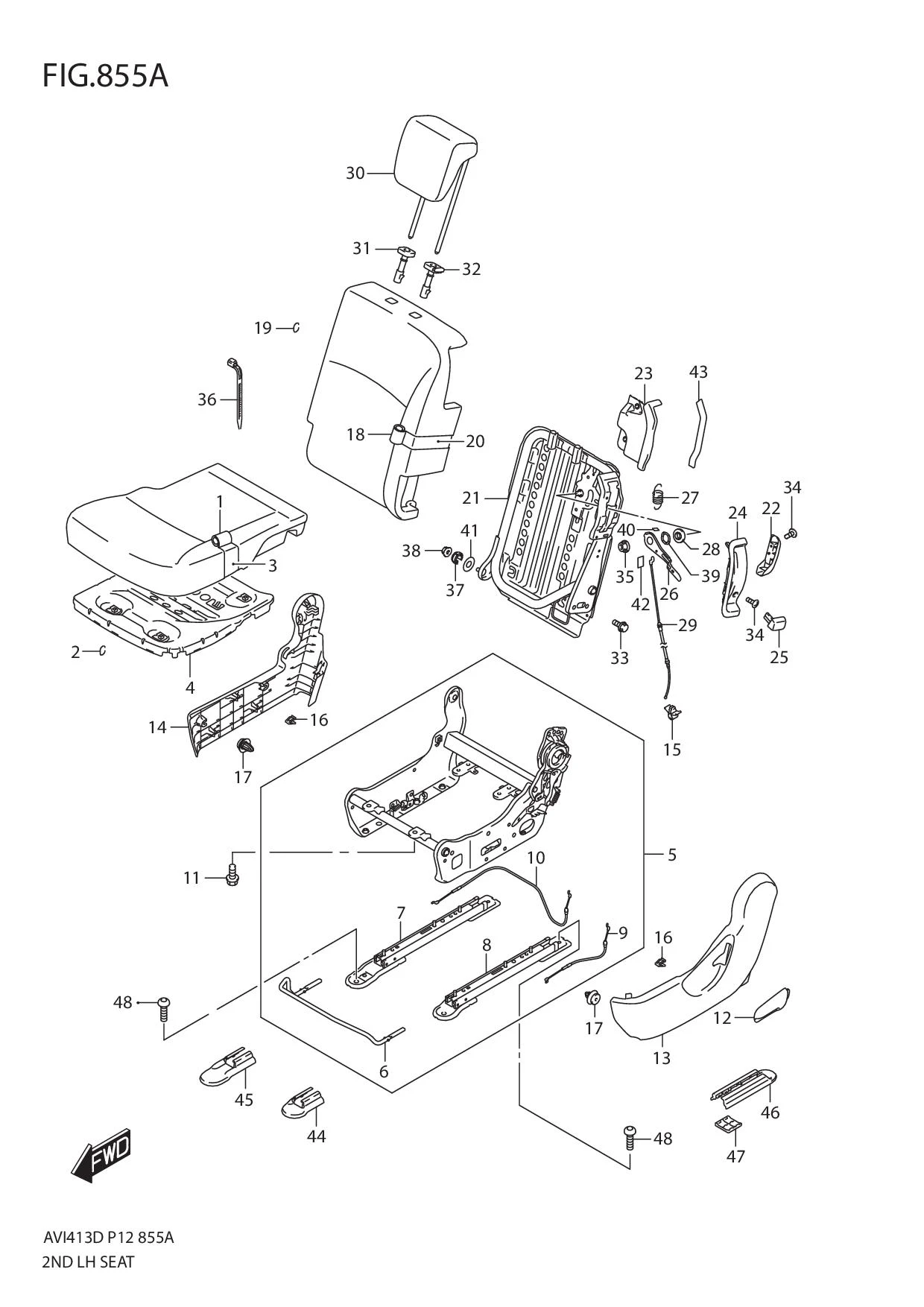

FIG.855A 2ND LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	87680M60M20-BUZ	TRIM,RR CUSHION LH (BEIGE)	1	Rp624.000	GL,GLX
2	09387-19001-000	RING	3	Rp9.000
3	87660-60M00-000 SUB: 87660B60M00N000	PAD,RR CUSHION LH	1	Rp467.500
4	87610-60M00-000 SUB: 87610B60M00N000	PANEL,RR CUSHION LH	1	Rp559.000
5	86806-60M10-000	ADJUSTER ASSY,RR LH	1	Rp3.769.000	GL,GLX
6	86782-60M20-000	•HANDLE,RR SEAT ADJUSTER LH	1	Rp175.000
7	86820-60M00-000	•ADJUSTER ASSY,RR INSIDE LH	1	Rp454.000
8	86840-60M00-000	•ADJUSTER ASSY,RR OUTSIDE LH	1	Rp422.000
9	87131-60M00-000	•CABLE,SLIDE RELEASE OUTSIDE	1	Rp53.500
10	87632-60M00-000	•CABLE,SLIDE RELEASE INSIDE LH	1	Rp75.000
11	01550-0812A-000	BOLT	4	Rp3.500
12	85711-58RA0-V6N SUB: 85711B68K00NV6N	KNOB,RECLINING LH (BEIGE)	1	Rp10.000
13	87721-60M00-V6N SUB: 87721B60M00NV6N	COVER,RCLNG OUTSIDE LH	1	Rp62.500
14	87741-60MA0-V6N SUB: 87741B60MA0NV6N	COVER,RCLNG INSIDE LH (BEIGE)	1	Rp64.500
15	09403M04401-000	CLAMP,RELEASE CABLE FR	1	Rp4.500
16	09409-10308-000 SUB: 09409B10308N000	CLIP	2	Rp6.500
17	09409-10314-000	CLIP	4	Rp17.000
18	87880M60M10-BUZ	TRIM,RR BACK LH (BEIGE)	1	Rp689.000	GL,GLX
19	09387-19001-000	RING	3	Rp9.000
20	87860-60M10-000 SUB: 87860B60M10N000	PAD,RR BACK LH	1	Rp467.500
21	87810-60MB0-000 SUB: 87810B60MB0N000	FRAME,RR BACK LH	1	Rp954.000	GL,GLX
22	87833-60M00-V6N SUB: 87833B60M00NV6N	COVER,RR BACK LH (BEIGE)	1	Rp8.000
23	87819-60M00-000 SUB: 87819B60M00N000	COVER,WALKIN LEVER LH	1	Rp19.500
24	87831M60M00-V6N SUB: 87831B60MA0NV6N	BEZEL,WALKIN LH (BEIGE)	1	Rp18.500
25	87832-60M00-V6N SUB: 87832B60M00NV6N	KNOB,WALKIN LH (BEIGE)	1	Rp5.500
26	87822-60M00-000 SUB: 87822B60M00N000	LEVER,WALKIN LH	1	Rp16.000
27	87323-60M00-000 SUB: 87323B60M00N000	SPRING,WALKIN LEVER	1	Rp5.500
28	87326-60M00-000 SUB: 87326B60M00N000	BUSH,WALKIN LEVER	1	Rp6.500
29	87133-60M00-000	CABLE,WALKIN	1	Rp82.000
30	86401M60M10-BU1	HEADRESTRAINT ASSY,RR	1	Rp273.000	GL,GLX
31	DISCONTINUE SUB: 85341-63J10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	-	GL,GLX
32	85840-63J10-V6N	GUIDE,HEADRESTRAINT (BEIGE)	1	Rp87.000	GL,GLX
33	01550-1020A-000	BOLT	2	Rp21.000
34	03241-0508A-000	SCREW	2	Rp10.500
35	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
36	36990-25G00-000 SUB: 09407-14403L000	CLAMP	1	Rp13.000
37	87327-60M00-000 SUB: 87327B60M00N000	BUSH,RR HINGE	1	Rp5.500
38	09159-08119-000	NUT	1	Rp20.000
39	09164-22012-000	WASHER	1	Rp28.500
40	87329M60M00-000	SILENCER,RR BACK	1	Rp11.500
41	87336-60M10-000 SUB: 87336B60M10N000	PLATE,RR BACK	1	Rp18.500
42	87337M60M00-000	SILENCER,RR BACK NO.2	1	Rp10.500
43	88327M60M10-000	PAD,2ND BACK SILENCER	1	Rp35.500
44	87491-60M00-V6N SUB: 87491B60M00NV6N	COVER,RR MTG OUTSIDE (BEIGE)	1	Rp117.500
45	87492-60M00-V6N SUB: 87492B60M00NV6N	COVER,RR MTG INSIDE (BEIGE)	1	Rp118.500
46	87494-60M00-V6N SUB: 87494B60M00NV6N	COVER,RR MTG (BEIGE)	2	Rp108.500
47	87495-60M00-V6N SUB: 87495B60M00NV6N	COVER,RR MTG LOWER (BEIGE)	2	Rp87.000
48	87493-60M00-000	BOLT,RR MTG	4	Rp23.000
