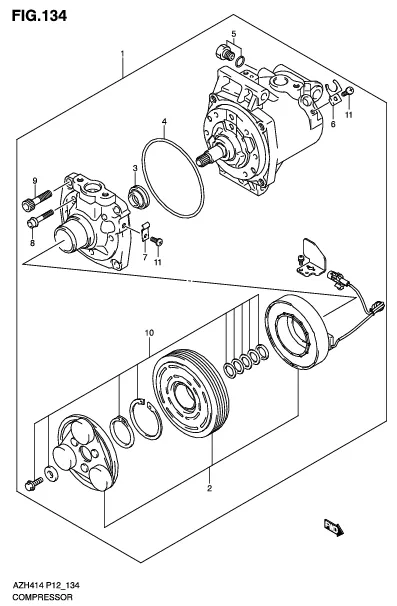

FIG.134 COMPRESSOR

FIG.134 COMPRESSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95200-58MB0-000	COMPRESSOR ASSY	1	Rp6.060.000
2	95210M83KC1-000 SUB: 95210M83KA0-000	•MAGNET CLUCH	1	Rp3.116.000
3	95261M70B00-000 SUB: 95261-70B00-000	•SEAL, LIP	1	Rp191.000
4	95262M70B00-000	•O RING	1	Rp37.000
5	95271M72B01-000	•VALVE, RELIEF	1	Rp122.500
6	95291-58J00-000	•CLAMP, WIRE	1	Rp80.000
7	95291-70B00-000	•CLAMP, WIRE	1	Rp75.500
8	95296-58J00-000	•BOLT	6	Rp47.000
9	DISCONTINUE SUB: 95297-72B20-000	•BOLT	4	-
10	95298M72B20-000 SUB: 95298-72B20-000	•CLIP KIT	1	Rp40.000
11	02112-3408A-000	•SCREW	2	Rp19.000
11	02112-3408A-000	•SCREW	2	Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
