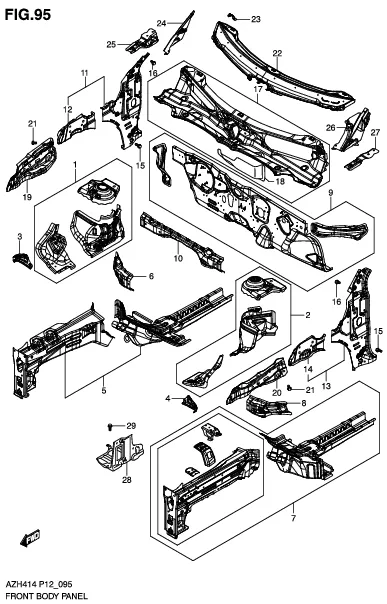

FIG.95 FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58300-58M01-000 SUB: 58300-74L00-000	PANEL, FENDER APRON RH	1	Rp913.500
2	58400-58M00-000	PANEL, FENDER APRON LH	1	Rp913.500
3	58312-74L00-000	BRACKET, FR FENDER LOWER RH	1	Rp131.000
4	58412-74L00-000	BRACKET, FR FENDER LOWER LH	1	Rp131.000
5	58600-74L00-000 SUB: 58600B74L00N000	MEMBER, FRONT SIDE RH	1	Rp3.630.000
6	58641-74L00-000 SUB: 58641B74L00N000	CROSSMEMBER, DASH UPPER RH	1	Rp114.500
7	58700-74L00-000 SUB: 58700B74L00N000	MEMBER, FRONT SIDE LH	1	Rp3.630.000
8	58741-74L00-000 SUB: 58741B74L00N000	CROSSMEMBER, DASH UPPER LH	1	Rp114.500
9-1	59100-58M00-000	PANEL, DASH MT	1	Rp6.697.500	MT
9-2	59100-58M20-000	PANEL, DASH AT	1	Rp6.697.500	AT
10	59220-74L00-000 SUB: 59220B74L00N000	CROSSMEMBER, DASH UPPER	1	Rp361.000
11	59230-74L00-000	PANEL, DASH SIDE RH	1	Rp896.000
12	59232-74L00-000	•PANEL,DASH SIDE FRONT RH	1	Rp233.000
13	59280-74L00-000	PANEL, DASH SIDE LH	1	Rp896.000
14	59282-74L00-000	•PANEL, DASH SIDE FRONT LH	1	Rp233.000
15	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
16	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
17-1	59300-74L00-000	PANEL, COWL UPPER MT	1	Rp1.438.500	MT
17-2	59300-74L20-000	PANEL, COWL UPPER AT	1	Rp1.385.000	AT
18	DISCONTINUE SUB: 59312B75J00N000	•SEALING, COWL VENTILATOR	1	-
19	59411-74L00-000	MEMBER, COWL SIDE OUTER RH	1	Rp345.000
20	59461-74L00-000	MEMBER, COWL SIDE OUTER RH	1	Rp340.000
21	01551-0820A-000	BOLT	4	Rp17.500
22	59711-74L00-000	PANEL, COWL TOP	1	Rp1.887.000
23	59712-71L00-000	BRACKET, I/P UPPER	3	Rp1.174.000
24	59731-74L00-000	PANEL, COWL TOP SIDE RH	1	Rp1.479.000
25	59740-58M00-000	PANEL, COWL TOP SIDE FR RH	1	Rp276.500
26	59781-74L00-000	PANEL, COWL TOP SIDE LH	1	Rp1.479.000
27	59790-58M00-000	PANEL, COWL TOP SIDE FR LH	1	Rp1.392.500
28	72520-74L00-000 SUB: 72520B74L00N000	TRAY, BATTERY	1	Rp188.000
29	02162-0612A-000	SCREW	4	Rp11.000
