ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANEL FIG.94 FRONT FENDER FIG.95 FRONT BODY PANEL FIG.96 FLOOR PANEL FIG.97 SIDE BODY PANEL FIG.98 ROOF PANEL FIG.99 FRONT BUMPER FIG.100 REAR BUMPER FIG.101 INSTRUMENT PANEL FIG.102 VENTILATOR FIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOX FIG.107 FLOOR CARPET FIG.108 INTERIOR TRIM FIG.109 COVER/CAP FIG.110 FUEL LID OPENER FIG.111 ROOF LINING FIG.112 ROOF MOLDING FIG.113 EMBLEM FIG.114 WINDSHIELD FIG.115 FRONT DOOR PANEL FIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCK FIG.118 REAR DOOR PANEL FIG.119 REAR DOOR REGULATOR FIG.120 REAR DOOR LOCK FIG.121 BACK DOOR PANEL FIG.122 BACK DOOR LOCK FIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELT FIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEAT FIG.129 REAR SEAT FIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANK FIG.132 TOOL FIG.133 AIR CONDITIONER FIG.134 COMPRESSOR

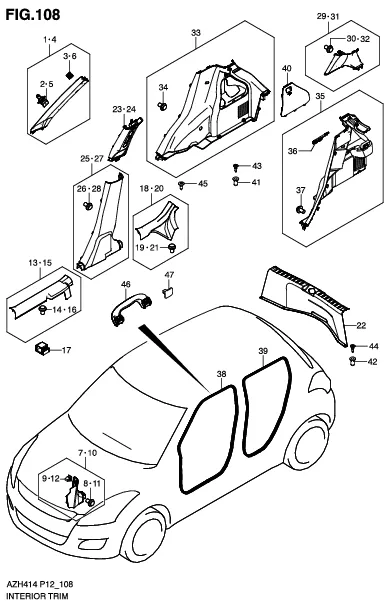

FIG.108 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76110-58M00-6GS SUB: 76110-68L00-6GS	TRIM, FRONT PILLAR (GRAY)	1	Rp188.000
2	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
3	09409-07335-000	•CLIP	1	Rp17.500
4	76120-58M00-6GS SUB: 76120-68L00-6GS	TRIM, FRONT PILLAR (GRAY)	1	Rp188.000
5	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
6	09409-07335-000	•CLIP	1	Rp17.500
7	76130-68L00-5PK	TRIM, DASH SIDE RH (BLACK)	1	Rp230.000
8	09409-08349-000 SUB: 09409B08342N000	•CLIP	1	Rp4.500
9	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
10	76140-68L00-5PK	TRIM, DASH SIDE LH (BLACK)	1	Rp230.000
11	09409-08349-000 SUB: 09409B08342N000	•CLIP	1	Rp4.500
12	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
13	76150-68L00-5PK	SCUFF, SIDE SILL FR RH (BLACK)	1	Rp266.000
14	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
15	76160-68L00-5PK	SCUFF, SIDE SILL FR LH (BLACK)	1	Rp266.000
16	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
17	76158-71L00-000	CLAMP, SIDE SILL SCUFF	12	Rp34.500
18	76170-58M00-5PK	SCUFF, SIDE SILL REAR RH (BLACK)	1	Rp277.000
19	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
20	76180-58M00-5PK	SCUFF, SIDE SILL REAR LH(BLACK)	1	Rp277.000
21	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
22	76191-68L00-5PK	TRIM, TAIL END (BLACK)	1	Rp495.500
23	76210-74L10-6GS	TRIM, CTR PILLAR UPR RH (GRAY)	1	Rp210.500
24	76220-74L10-6GS	TRIM, CTR PILLAR UPR LH (GRAY)	1	Rp210.500
25	76230-68L00-5PK	TRIM, CTR PILLAR LOWER RH(BLACK)	1	Rp368.000
26	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
27	76240-68L00-5PK	TRIM, CTR PILLAR LOWER LH (BLACK)	1	Rp368.000
28	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
29	76250-58M00-6GS	TRIM, QTR INNER UPR RH (GRAY)	1	Rp199.500
30	09409-10327-000 SUB: 09409M10312-000	•CLIP	4	Rp5.000
31	76260-58M00-6GS	TRIM, QTR INNER UPR LH (GRAY)	1	Rp199.500
32	09409-10327-000 SUB: 09409M10312-000	•CLIP	4	Rp5.000
33	76270-68L00-5PK	TRIM, QTR INNER LOWER RH (BLACK)	1	Rp1.012.500
34	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
35	76280-58M00-5PK	TRIM, QTR INNER LOWER LH (BLACK)	1	Rp1.012.500
36	76282-68L00-5PK	•CAP, QTR INNER LOWER (BLACK)	1	Rp135.000
37	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
38	76291-58M00-000	TRIM, FRONT DOOR OPENING	2	Rp440.500
39	76295-58M00-000	TRIM, REAR DOOR OPENING	2	Rp303.000
40	76311-68L00-5PK	LID, JACK (BLACK)	1	Rp216.500
41	83751-75G00-000	SEAL, QTR INNER LOWER TRIM	2	Rp32.000
42	83751-75G00-000	SEAL, TAIL END TRIM	2	Rp32.000
43	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
44	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
45	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (BLACK)	2	Rp7.500
46	76410-55G02-6GS	GRIP, ASSISTANT (GRAY)	3	Rp255.500
47	76412-55G00-6GS	CAP, ROOF LINING (GRAY)	1	Rp31.000
