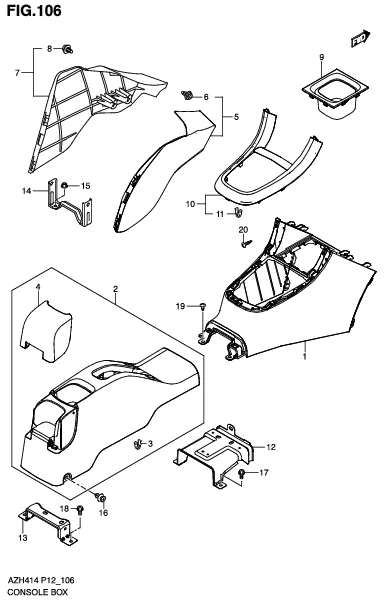

FIG.106 CONSOLE BOX

FIG.106 CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75811-58M00-5PK BOX, FLOOR CONSOLE FRONT (BLACK) 1 Rp460.500
2 75820-58M00-5PK BOX, FLOOR CONSOLE (BLACK) 1 Rp574.000
3 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
4 75822-68L00-5PK •LID, FLOOR CONSOLE BOX(BLACK) 1 Rp115.500
5 75831-58M00-5PK COVER, FLOOR CONSOLE SIDE RH (BLACK) 1 Rp186.000
6 09409-10327-000
SUB: 09409M10312-000		 •CLIP UPPER 1 Rp5.000
7 75841-58M00-5PK COVER, FLOOR CONSOLE SIDE LH (BLACK) 1 Rp190.500
8 09409-10327-000
SUB: 09409M10312-000		 •CLIP 1 Rp5.000
9 75851-71L00-5PK HOLDER, CUP (BLACK) 1 Rp93.000
10 75861-68L01-5PK
SUB: 75861-68L00-5PK		 GARNISH, FLOOR CONSOLE BOX FR (BLACK) 1 Rp219.500
11 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
12 75881-68L00-000 BRACKET, FLOOR CONSOLE 1 Rp1.361.000
13 75882-68L00-000
SUB: 75882B68L00N000		 BRACKET, FLOOR CONSOLE 1 Rp11.000
14 75883-74L00-000
SUB: 75883B74L00N000		 BRACKET, FLOOR CONSOLE COVER 1 Rp12.000
15 09159-06076-000 NUT 2 Rp19.500
16 09409-06322-5PK CLIP (BLACK) 2 Rp19.000
17 02162-0612A-000 SCREW 2 Rp11.000
18 02162-0612A-000 SCREW 2 Rp11.000
19 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 2 Rp3.500
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
