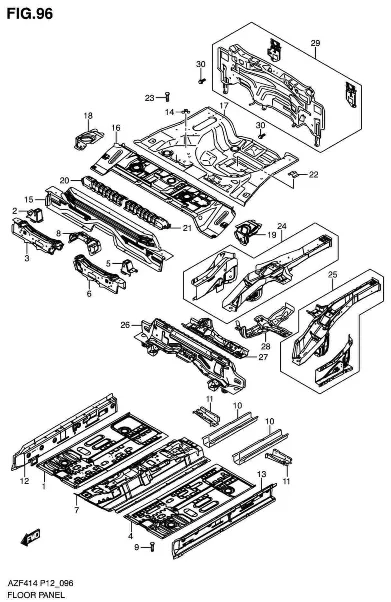

FIG.96 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	61111-74L00-000 SUB: 61111B74L00N000	PAN, MAIN FLOOR RH	1	Rp1.204.500
2	61120-74L00-000	BRACKET, FR SEAT RR OUT RH	1	Rp973.500
3	61130-74L00-000	CROSSMEMBER, FLR PAN UPR RH	1	Rp1.484.500
4	61161-74L00-000 SUB: 61161B74L00N000	PAN, MAIN FLOOR LH	1	Rp1.215.500
5	61170-74L00-000	BRACKET, FR SEAT RR OUT LH	1	Rp973.500
6	61180-74L00-000	CROSSMEMBER, FLR PAN UPR LH	1	Rp1.484.500
7	61210-58M00-000	TUNNEL, MAIN FLOOR	1	Rp4.113.500
8	61230-71L00-000	BRACKET, FR SEAT RR INSIDE	1	Rp1.270.000
9	09119-05018-000	BOLT	6	Rp13.000
10	61241-74L00-000 SUB: 61241B74L00N000	MEMBER, FLOOR SIDE REAR	2	Rp160.000
11	61242-74L00-000	CROSSMEMBER, FLOOR PAN	2	Rp986.000
12	61310-74L00-000	PANEL, SIDE SILL INNER RH	1	Rp2.528.000
13	61320-74L00-000	PANEL, SIDE SILL INNER LH	1	Rp2.528.000
14	58232-60B00-000	BRACKET, TOOL BOX	1	Rp8.500
15	61511-58M00-000	PANEL, RR FLOOR FR	1	Rp3.824.000
16	61512-74L00-000	PANEL, RR FLOOR CTR	1	Rp5.044.000
17	61513-58M00-000	PANEL, RR FLOOR RR	1	Rp3.074.500
18	61514-68L00-000	EXTENSION, RR FLOOR FR SIDE RH	1	Rp899.000
19	61515-68L00-000	EXTENSION, RR FLOOR FR SIDE LH	1	Rp899.000
20	61516-74L00-000	MEMBER, RR SEAT SUPPORT RH	1	Rp1.182.000
21	61517-74L00-000	MEMBER, RR SEAT SUPPORT LH	1	Rp1.182.000
22	61518-68L00-000	BRACKET, SPARE TIRE	1	Rp795.000
23	09119-05018-000	BOLT	4	Rp13.000
24	62100-58M01-000 SUB: 62100-58M00-000	MEMBER, REAR FLOOR SIDE RH	1	Rp4.682.000
25	62300-58M01-000 SUB: 62300-58M00-000	MEMBER, REAR FLOOR SIDE LH	1	Rp4.682.000
26	62600-58M00-000	CROSSMEMBER, REAR	1	Rp2.496.500
27	62700-58M00-000	CROSSMEMBER, RR FLOOR CTR	1	Rp2.185.500
28	62720-58M00-000	MEMBER, TOWING HOOK	1	Rp1.678.500
29	65500-58M00-000	PANEL, BACK	1	Rp2.030.000
30	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
