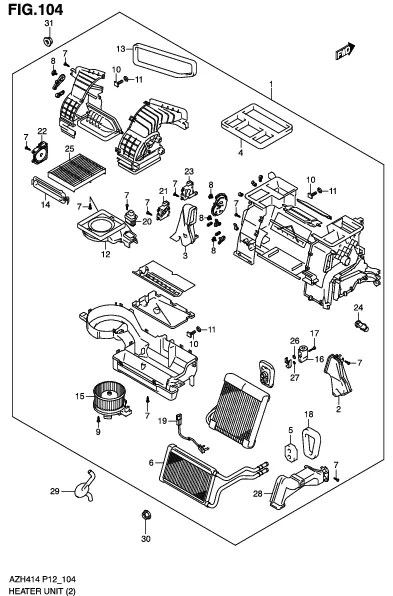

FIG.104 HEATER UNIT (GLX)

FIG.104 HEATER UNIT (GLX)
No No. Part Description Qty Price Per Pcs Remarks
1 74100-58M81-000
SUB: 74100-58M80-000		 HEATER UNIT 1 Rp9.477.000
2 74114-58M00-000 •FOOT DUCT RH 1 Rp234.500
3 74115-58M00-000 •FOOT DUCT LH 1 Rp256.500
4 74116-58M00-000 •PACKING, DUCT 1 Rp120.500
5 74117-58M00-000 •PACKING, HEATER PIPE 1 Rp51.000
6 74120-58M00-000 •CORE ASSY, HEATER 1 Rp3.424.500
7 74192-58M00-000 •SCREW (4X16) 0 Rp23.500
8 74192-71L00-000 •SCREW (4X16) 0 Rp68.000
9 74193-58M00-000 •SCREW (5X14) 3 Rp21.000
10 74195-58M00-000 •STUD BOLT (6X27) 5 Rp34.500
11 74196-82K00-000 •SEAL, RUBBER 5 Rp81.000
12 74211-58M00-000 •CASE, BLOWER UPPER 1 Rp253.000
13 74212-58M00-000 •PACKING, INTAKE 1 Rp43.500
14 74214-58M00-000 •FILTER COVER 1 Rp58.500
15 74250-58M00-000 •MOTOR ASSY, BLOWER 1 Rp1.299.000
16 95431-61P00-000
SUB: 95431-71L00-000		 •TXV ASSY 1 Rp1.388.000
17 95432-82K00-000 •BOLT 2 Rp37.500
18 95464-58M00-000 •PACKING, TXV 1 Rp55.000
19 95541-58M00-000 •THERMISTOR ASSY 1 Rp526.500
20 95626-71L20-000 •FAN, DRIVER 1 Rp1.414.500
21 95651-58M00-000 •AIR MIXTURE ASSY 1 Rp399.500
22 95652-58M00-000 •INTAKE, AIR MIXTURE 1 Rp461.000
23 95653-58M00-000 •MODE, AIR MIXTURE 1 Rp448.500
24 95656-58M00-000 •ASPIRATOR 1 Rp90.500
25 95861-58M00-000 •FILTER, AIR 1 Rp169.500
26 95895-68H00-000 •O RING 1 Rp43.500
27 95897-68H00-000 •O RING 1 Rp43.500
28 74132-58M00-000 •HEATER PIPE COVER 1 Rp228.500
29 95481M74L00-000 HOSE, DRAIN 1 Rp60.000
30 09159-06081-000 NUT 1 Rp14.500
31 09159-06086-000 NUT 5 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
