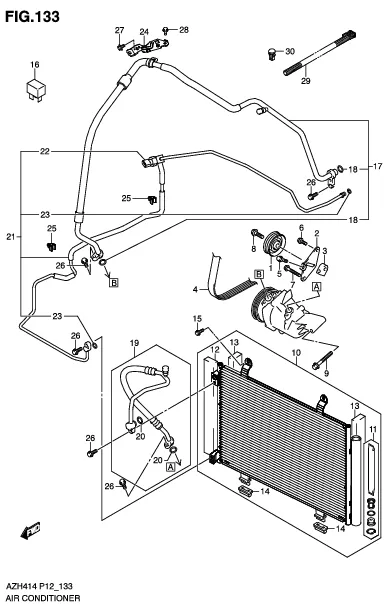

FIG.133 AIR CONDITIONER

FIG.133 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 95130-58M00-000 PULLEY, BELT IDLER 1 Rp563.500
2 95123-51K00-000 BRACKET, TENSION PULLEY 1 Rp196.500
3 95125M68K00-000 TENSIONER, COMPRESSOR 1 Rp55.000
4 95141-58M00-000 V-BELT (4PK 765) 1 Rp188.000
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT (8X75) 1 Rp48.500
6 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
7 01550-0860A-000 BOLT 1 Rp5.500
8 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
9 01550-0875A-000 BOLT 3 Rp6.000
10 95310-58M01-000
SUB: 95310-58M00-000		 CONDENSER ASSY 1 Rp3.918.500
11 95339-71L00-000 •DRYER KIT 1 Rp1.048.000
12 95811-58M00-000 •PACKING 1 Rp204.500
13 95812-58M00-000 •PACKING 2 Rp236.000
14 95851-71L00-000 •BUSH 2 Rp92.000
15 02162-0612A-000 SCREW 2 Rp11.000
16 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, A/C 1 Rp47.000
17 95710-58M00-000 HOSE, SUCTION 1 Rp770.000
18 95896-50G00-000
SUB: 95896B50G00N000		 •O RING (D:2.4,ID:13.4) 2 Rp19.000
19 95720-58M10-000 HOSE, DISCHARGE 1 Rp651.500
20 95895-50G00-000
SUB: 95895B50G00N000		 •O RING (D:2.4,ID:10.8) 2 Rp12.500
21 95731-58M00-000 PIPE, LIQUID 1 Rp980.000
22 95546-58J00-000
SUB: 95546B58J00N000		 •SENSOR, PRESSURE 1 Rp326.000
23 95891-50G00-000
SUB: 95891B50G00N000		 •O RING (D:1.8,ID:6.7) 2 Rp12.500
24 95781-58M00-000 STAY, SUCT HOSE 1 Rp120.500
25 95761-58M00-000 CLAMP 2 Rp384.500
26 01550-0620C-000 BOLT 5 Rp5.500
27 02162-0612A-000 SCREW 1 Rp11.000
28 02162-0612A-000 SCREW 1 Rp11.000
29 95640-71L20-000 SENSOR ASSY, ROOM TEMP GLX 1 Rp790.500 GLX
30 95642-64G20-000 SENSOR, SUN LIGHTGLX 1 Rp578.000 GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
