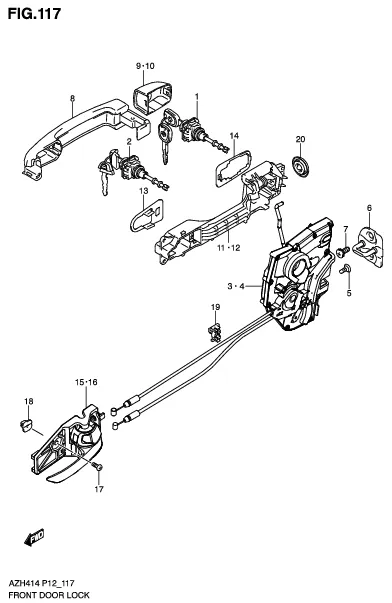

FIG.117 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82270-58840-000	CYLINDER, FRONT DOOR LOCK RH GL	1	Rp3.021.000	GL
2	82270-58850-000	CYLINDER, FRONT DOOR LOCK RH GLX	1	Rp2.064.500	GLX
3-1	82201-58MA1-000	LATCH ASSY, FRONT DOOR RH GL	1	Rp1.607.500	GL
3-2	82201-58MC4-000 SUB: 82201-58MC1-000	LATCH ASSY, FRONT DOOR RH GLX	1	Rp1.125.500	GLX
4-1	82202-58MA1-000	LATCH ASSY, FRONT DOOR LHGL	1	Rp1.591.500	GL
4-2	82202-58MC1-000	LATCH ASSY, FRONT DOOR LH GLX	1	Rp1.136.000	GLX
5	DISCONTINUE SUB: 09137-06031-000	SCREW (6X16.5)	6	-
6	82610-63J00-000	STRIKER, DOOR LATCH	2	Rp174.500
7	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
8-5	82812-57L00-ZTV	HANDLE, DOOR OUT (BLUE) GL	2	Rp632.000	GL
8-14	82810-57821-ZTZ SUB: 82810-57820-ZTZ	HANDLE, DOOR OUT (COPPER)GLX	2	Rp1.413.500	GLX
8-13	82810-57821-ZTW SUB: 82810-57820-ZTW	HANDLE, DOOR OUT (RED) GLX	2	Rp1.262.500	GLX
8-12	82810-57821-ZTV SUB: 82810-57820-ZTV	HANDLE, DOOR OUT (BLUE) GLX	2	Rp1.262.500	GLX
8-11	82810-57821-ZTU SUB: 82810-57820-ZTU	HANDLE, DOOR OUT (GRAY) GLX	2	Rp1.252.500	GLX
8-10	82810-57821-ZTT SUB: 82810-57820-ZTT	HANDLE, DOOR OUT (BLACK) GLX	2	Rp1.252.500	GLX
8-9	82810-57810-ZTS SUB: 82810-57820-ZTS	HANDLE, DOOR OUT (SILVER) GLX	2	Rp2.368.000	GLX
8-8	82810-57810-ZTR SUB: 82810-57820-ZTR	HANDLE, DOOR OUT (WHITE)GLX	2	Rp2.254.500	GLX
8-7	82812-57L00-ZTZ	HANDLE, DOOR OUT (COPPER) GL	2	Rp559.500	GL
8-6	82812-57L00-ZTW	HANDLE, DOOR OUT (RED) GL	2	Rp632.000	GL
8-4	82812-57L00-ZTU	HANDLE, DOOR OUT (GRAY)GL	2	Rp627.000	GL
8-3	82812-57L00-ZTT	HANDLE, DOOR OUT (BLACK) GL	2	Rp620.500	GL
8-2	82812-57L00-ZTS	HANDLE, DOOR OUT (SILVER) GL	2	Rp620.500	GL
8-1	82812-57L00-ZTR	HANDLE, DOOR OUT (WHITE) GL	2	Rp620.500	GL
9-2	82813-57L00-ZTS	CAP, DOOR OUT RH (SILVER)	1	Rp210.500
9-7	82813-57L00-ZTZ	CAP, DOOR OUT RH (COPPER)	1	Rp248.000
9-6	82813-57L00-ZTW	CAP, DOOR OUT RH (RED)	1	Rp215.500
9-5	82813-57L00-ZTV	CAP, DOOR OUT RH (BLUE)	1	Rp215.500
9-3	82813-57L00-ZTT	CAP, DOOR OUT RH (BLACK)	1	Rp209.000
9-1	82813-57L00-ZTR	CAP, DOOR OUT RH (WHITE)	1	Rp214.000
9-4	82813-57L00-ZTU	CAP, DOOR OUT RH (GRAY)	1	Rp215.500
10-1	82813-57L10-ZTR	CAP, DOOR OUT LH (WHITE)	1	Rp214.000
10-2	82813-57L10-ZTS	CAP, DOOR OUT LH (SILVER)	1	Rp215.500
10-3	82813-57L10-ZTT	CAP, DOOR OUT LH (BLACK)	1	Rp209.000
10-4	82813-57L10-ZTU	CAP, DOOR OUT LH (GRAY)	1	Rp215.500
10-5	82813-57L10-ZTV	CAP, DOOR OUT LH (BLUE)	1	Rp215.500
10-6	82813-57L10-ZTW	CAP, DOOR OUT LH (RED)	1	Rp215.500
10-7	82813-57L10-ZTZ	CAP, DOOR OUT LH (COPPER)	1	Rp277.000
11-2	82811-63J10-000	FRAME, DOOR OUT RH GLX	1	Rp408.000	GLX
11-1	82811-63J00-000	FRAME, DOOR OUT RH GL	1	Rp452.500	GL
12-1	82821-63J00-000	FRAME, DOOR OUT LH GL	1	Rp452.500	GL
12-2	82821-63J10-000	FRAME, DOOR OUT LH GLX	1	Rp408.000	GLX
13	82814-63J00-000	PAD, DOOR OUT	2	Rp46.500
14	82815-63J00-000	CUSHION, SIDE DOOR OUT	2	Rp48.500
15	83110M74L10-C48	HANDLE ASSY, DOOR INSIDE RH(BLACK/CHROME)	1	Rp111.000
16	83130M74L10-C48	HANDLE ASSY, DOOR INSIDE LH(BLACK/CHROME)	1	Rp111.000
17	09132-05058-000	SCREW (5X12)	2	Rp14.000
18	09148-05031-000	NUT	2	Rp18.000
19	83271-58M00-000	CLIP	2	Rp30.500
20	09250-25007-000	CAP (OD:25.0)	2	Rp10.500
