ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANEL FIG.94 FRONT FENDER FIG.95 FRONT BODY PANEL FIG.96 FLOOR PANEL FIG.97 SIDE BODY PANEL FIG.98 ROOF PANEL FIG.99 FRONT BUMPER FIG.100 REAR BUMPER FIG.101 INSTRUMENT PANEL FIG.102 VENTILATOR FIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOX FIG.107 FLOOR CARPET FIG.108 INTERIOR TRIM FIG.109 COVER/CAP FIG.110 FUEL LID OPENER FIG.111 ROOF LINING FIG.112 ROOF MOLDING FIG.113 EMBLEM FIG.114 WINDSHIELD FIG.115 FRONT DOOR PANEL FIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCK FIG.118 REAR DOOR PANEL FIG.119 REAR DOOR REGULATOR FIG.120 REAR DOOR LOCK FIG.121 BACK DOOR PANEL FIG.122 BACK DOOR LOCK FIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELT FIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEAT FIG.129 REAR SEAT FIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANK FIG.132 TOOL FIG.133 AIR CONDITIONER FIG.134 COMPRESSOR

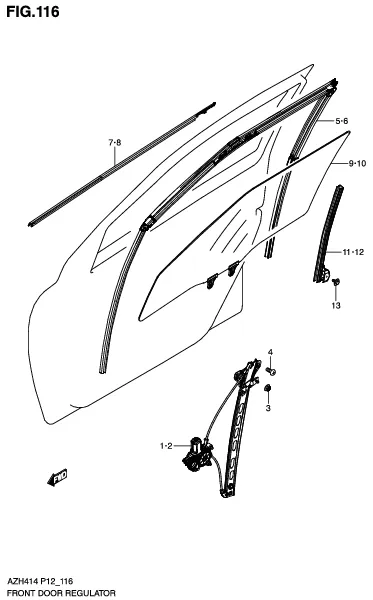

FIG.116 FRONT DOOR REGULATOR

FIG.116 FRONT DOOR REGULATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	83401-58MA1-000	REGULATOR ASSY, WINDOW RH	1	Rp1.615.500
2	83402-58MA1-000	REGULATOR ASSY, WINDOW LH	1	Rp1.615.500
3	09159-06096-000	NUT	12	Rp25.000
4	02112M7612A-000 SUB: 02112-7612A-000	SCREW	4	Rp5.500
5	83661-58M00-000	RUN, FRONT DOOR GLASS RH	1	Rp452.000
6	83665-58M00-000	RUN, FRONT DOOR GLASS LH	1	Rp452.000
7	83811-58M00-000	WEATHERSTRIP, DOOR OUT RH	1	Rp355.000
8	83821-58M00-000	WEATHERSTRIP, DOOR OUT LH	1	Rp355.000
9	84501-58M02-000 SUB: 84501-58M00-000	GLASS, FRONT DOOR WINDOW RH	1	Rp1.027.500
10	84502-58M02-000 SUB: 84502-58M00-000	GLASS, FRONT DOOR WINDOW LH	1	Rp1.027.500
11-1	81730-71L00-000	SASH, FR DOOR RR RHGL	1	Rp442.500	GL
11-2	81730-71L10-000	SASH, FR DOOR RR RH GLX	1	Rp448.500	GLX
12-1	81740-71L00-000	SASH, FR DOOR RR LH GL	1	Rp442.500	GL
12-2	81740-71L10-000	SASH, FR DOOR RR LHGLX	1	Rp448.500	GLX
13	09122-76003-000	SCREW (6X16)	2	Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
