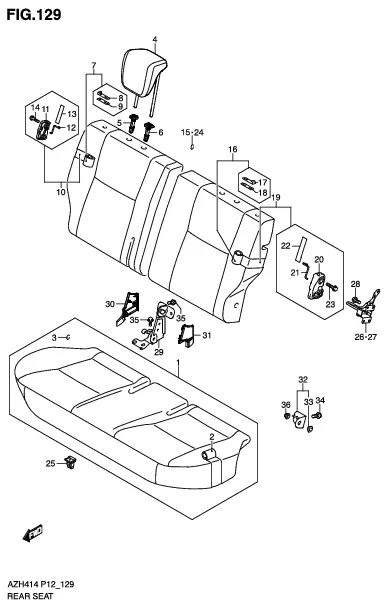

FIG.129 REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	87101-58M00-KBR	CUSHION ASSY, RR (BLACK/GRAY)	1	Rp5.453.000
2	87180-71L00-KBR	•TRIM COMP, RR CUSHION (BLACK/GRAY)	1	Rp1.998.000
3	09387-19001-000 SUB: 09387B19001N000	•RING	35	Rp9.000
4	86401-58M40-KBP SUB: 86401-58M10-KBP	HEADRESTRAINT ASSY, RR (BLACK)	2	Rp1.078.000
5	85341-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	Rp240.000
6	85840-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	Rp235.000
7	87380-58M00-KBR	TRIM, RR BACK RH (BLACK/GRAY)	1	Rp1.767.000
8	87381-74L00-5PK	•GUIDE, RR BELT UPPER (BLACK)	1	Rp938.000
9	87382-74L00-000	•GUIDE, RR BELT LOWER	1	Rp910.000
10	87305-58M00-000	BACK SUB ASSY, RR RH	1	Rp9.948.500
11	DISCONTINUE SUB: 87980-62J02-000	•LOCK ASSY, RR BACK RH	1	-
12	87485-74L00-000	•WIRE, RR BACK LOCK RH	1	Rp874.000
13	87486-74L00-000	•BAND, RR BACK LOCK	1	Rp233.000
14	01550-0835A-000 SUB: 01550B0835AN000	•BOLT	2	Rp3.500
15	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
16	87880-58M00-KBR	TRIM, RR BACK LH (BLACK/GRAY)	1	Rp1.767.000
17	87381-74L00-5PK	•GUIDE, RR BELT UPPER (BLACK)	1	Rp938.000
18	87382-74L00-000	•GUIDE, RR BELT LOWER	1	Rp910.000
19	87306-58M00-000	BACK SUB ASSY, RR LH	1	Rp10.598.000
20	87480M62J02-000 SUB: 87480-62J02-000	•LOCK ASSY, RR BACK RH	1	Rp396.000
21	87985-74L00-000	•WIRE, RR BACK LOCK RH	1	Rp874.000
22	87486-74L00-000	•BAND, RR BACK LOCK	1	Rp233.000
23	01550-0835A-000 SUB: 01550B0835AN000	•BOLT	2	Rp3.500
24	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
25	87460-76G11-000 SUB: 87460-76G10-000	HOOK, CUSHION	2	Rp39.000
26	87470-74L00-000	STRIKER COMP, RR BACK RH	1	Rp173.000
27	87870-74L00-000	STRIKER COMP, RR BACK LH	1	Rp208.000
28	01551-0820A-000	BOLT	8	Rp17.500
29	87950-58M00-5PK	HINGE, RR SEAT CENTER (BLACK)	1	-
30	87991-71L00-5PK	•COVER, SEAT HINGE RH (BLACK)	1	Rp39.500
31	87992-71L00-5PK	•COVER, SEAT HINGE LH (BLACK)	1	Rp35.500
32	87930-58M00-000	HINGE ASSY, RR SIDE	2	Rp43.000
33	87912-71L00-000	•BUSH, RR BACK HINGE	2	Rp40.500
34	01551-1025A-000	BOLT	2	Rp29.000
35	01551-1025A-000	BOLT	4	Rp29.000
36	08313-2010A-000	NUT	2	Rp20.500
