ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANELFIG.94 FRONT FENDERFIG.95 FRONT BODY PANELFIG.96 FLOOR PANELFIG.97 SIDE BODY PANELFIG.98 ROOF PANELFIG.99 FRONT BUMPERFIG.100 REAR BUMPERFIG.101 INSTRUMENT PANELFIG.102 VENTILATORFIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOXFIG.107 FLOOR CARPETFIG.108 INTERIOR TRIMFIG.109 COVER/CAPFIG.110 FUEL LID OPENERFIG.111 ROOF LININGFIG.112 ROOF MOLDINGFIG.113 EMBLEMFIG.114 WINDSHIELDFIG.115 FRONT DOOR PANELFIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCKFIG.118 REAR DOOR PANELFIG.119 REAR DOOR REGULATORFIG.120 REAR DOOR LOCKFIG.121 BACK DOOR PANELFIG.122 BACK DOOR LOCKFIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELTFIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEATFIG.129 REAR SEATFIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANKFIG.132 TOOLFIG.133 AIR CONDITIONERFIG.134 COMPRESSOR

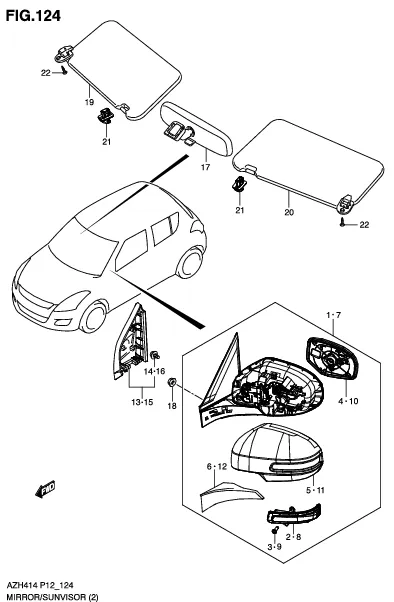

FIG.124 MIRROR/SUNVISOR (GLX)

FIG.124 MIRROR/SUNVISOR (GLX)
No No. Part Description Qty Price Per Pcs Remarks
1-2 84701-58MB2-ZTS
SUB: 84701-58MB0-ZTS		 MIRROR ASSY, OUT REAR VIEW RH (SILVER) 1 Rp2.471.500
1-3 84701-58MB2-ZTT
SUB: 84701-58MB0-ZTT		 MIRROR ASSY, OUT REAR VIEW RH (BLACK) 1 Rp2.471.500
1-4 84701-58MB1-ZTU
SUB: 84701-58MB0-ZTU		 MIRROR ASSY, OUT REAR VIEW RH (GRAY) 1 Rp2.529.000
1-5 84701-58MB1-ZTV
SUB: 84701-58MB0-ZTV		 MIRROR ASSY, OUT REAR VIEW RH (BLUE) 1 Rp2.539.000
1-6 84701-58MB1-ZTW
SUB: 84701-58MB0-ZTW		 MIRROR ASSY, OUT REAR VIEW RH (RED) 1 Rp2.529.000
1-7 84701-58MB1-ZTZ
SUB: 84701-58MB0-ZTZ		 MIRROR ASSY, OUT REAR VIEW RH (COPPER) 1 Rp2.987.000
1-1 84701-58MB2-ZTR
SUB: 84701-58MB0-ZTR		 MIRROR ASSY, OUT REAR VIEW RH (WHITE) 1 Rp2.414.500
2 36410-72M01-000
SUB: 36410B82K00N000		 •LAMP ASSY, SIDE TURN SIGNAL 1 Rp781.000
3 84717-82K00-000
SUB: 84717B82K00N000		 •SCREW, TURN SIGNAL LAMP 2 Rp17.500
4 84730-77M00-000
SUB: 84730B58M00N000		 •GLASS, OUT REAR VIEW RH 1 Rp153.000
5-4 84718-58MA0-ZTU •COVER, MIRROR VISOR RH (GRAY) 1 Rp376.500
5-7 84718-58MA0-ZTZ •COVER, MIRROR VISOR RH (COPPER) 1 Rp396.000
5-6 84718-58MA0-ZTW •COVER, MIRROR VISOR RH (RED) 1 Rp376.500
5-5 84718-58MA0-ZTV •COVER, MIRROR VISOR RH (BLUE) 1 Rp376.500
5-3 84718-58MA0-ZTT •COVER, MIRROR VISOR RH(BLACK) 1 Rp372.000
5-2 84718-58MA0-ZTS •COVER, MIRROR VISOR RH (SILVER) 1 Rp372.000
5-1 84718-58MA0-ZTR •COVER, MIRROR VISOR RH (WHITE) 1 Rp372.000
6-1 84719-58M00-ZTR •COVER, MIRROR BASE RH (WHITE) 1 Rp253.000
6-2 84719-58M00-ZTS •COVER, MIRROR BASE RH (SILVER) 1 Rp253.000
6-3 84719-58M00-ZTT •COVER, MIRROR BASE RH (BLACK) 1 Rp253.000
6-4 84719-58M00-ZTU •COVER, MIRROR BASE RH (GRAY) 1 Rp253.000
6-5 84719-58M00-ZTV •COVER, MIRROR BASE RH (BLUE) 1 Rp253.000
6-6 84719-58M00-ZTW •COVER, MIRROR BASE RH (RED) 1 Rp253.000
6-7 84719-58M00-ZTZ •COVER, MIRROR BASE RH (COPPER) 1 Rp268.000
7-6 84702-58MB1-ZTW
SUB: 84702-58MB0-ZTW		 MIRROR ASSY, OUT REAR VIEW LH (RED) 1 Rp2.529.000
7-7 84702-58MB1-ZTZ
SUB: 84702-58MB0-ZTZ		 MIRROR ASSY, OUT REAR VIEW LH (COPPER) 1 Rp2.987.000
7-5 84702-58MB1-ZTV
SUB: 84702-58MB0-ZTV		 MIRROR ASSY, OUT REAR VIEW LH (BLUE) 1 Rp2.539.000
7-3 84702-58MB2-ZTT
SUB: 84702-58MB0-ZTT		 MIRROR ASSY, OUT REAR VIEW LH (BLACK) 1 Rp2.471.500
7-2 84702-58MB1-ZTS
SUB: 84702-58MB0-ZTS		 MIRROR ASSY, OUT REAR VIEW LH (SILVER) 1 Rp2.471.500
7-1 84702-58MB2-ZTR
SUB: 84702-58MB0-ZTR		 MIRROR ASSY, OUT REAR VIEW LH (WHITE) 1 Rp2.414.500
7-4 84702-58MB1-ZTU
SUB: 84702-58MB0-ZTU		 MIRROR ASSY, OUT REAR VIEW LH (GRAY) 1 Rp2.529.000
8 36430-82K00-000
SUB: 36430B82K00N000		 •LAMP ASSY, SIDE TURN 1 Rp531.500
9 84717-82K00-000
SUB: 84717B82K00N000		 •SCREW, TURN SIGNAL LAMP 2 Rp17.500
10 84740-58M00-000
SUB: 84740B58M00N000		 •GLASS, OUT REAR VIEW LH 1 Rp153.000
11-3 84728-58MA0-ZTT •COVER, MIRROR VISOR LH (BLACK) 1 Rp372.000
11-7 84728-58MA0-ZTZ •COVER, MIRROR VISOR LH(COPPER) 1 Rp396.000
11-6 84728-58MA0-ZTW •COVER, MIRROR VISOR LH (RED) 1 Rp376.500
11-5 84728-58MA0-ZTV •COVER, MIRROR VISOR LH (BLUE) 1 Rp376.500
11-4 84728-58MA0-ZTU •COVER, MIRROR VISOR LH (GRAY) 1 Rp376.500
11-2 84728-58MA0-ZTS •COVER, MIRROR VISOR LH (SILVER) 1 Rp372.000
11-1 84728-58MA0-ZTR •COVER, MIRROR VISOR LH (WHITE) 1 Rp372.000
12-2 84729-58M00-ZTS •COVER, MIRROR BASE LH (GRAY) (SILVER) 1 Rp253.000
12-7 84729-58M00-ZTZ •COVER, MIRROR BASE LH(COPPER) 1 Rp268.000
12-6 84729-58M00-ZTW •COVER, MIRROR BASE LH (RED) 1 Rp253.000
12-5 84729-58M00-ZTV •COVER, MIRROR BASE LH (BLUE) 1 Rp253.000
12-4 84729-58M00-ZTU •COVER, MIRROR BASE LH (GRAY) 1 Rp253.000
12-3 84729-58M00-ZTT •COVER, MIRROR BASE LH (BLACK) 1 Rp253.000
12-1 84729-58M00-ZTR •COVER, MIRROR BASE LH (WHITE) 1 Rp253.000
13 84750-68L10-5PK GARNISH, SASH BRACKET INNER RH (BLACK) 1 Rp89.500
14 09409-10327-000
SUB: 09409M10312-000		 •CLIP 1 Rp5.000
15 84790-68L10-5PK GARNISH, SASH BRACKET INNER LH (BLACK) 1 Rp89.500
16 09409-10312-000 •CLIP 1 Rp10.000
17 84703-65J00-000
SUB: 84703B65J00N000		 MIRROR ASSY, INSIDE REAR VIEW 1 Rp334.000
18 08316-1006A-000
SUB: 08316B1006AN000		 NUT 6 Rp2.000
19 84801-58M00-6GS SUNVISOR ASSY, RH (GRAY) 1 Rp267.000
20 84802-58M20-6GS SUNVISOR ASSY, LH (GRAY) 1 Rp323.500
21 84851-85K00-6GS HOLDER, SUNVISOR (GRAY) 2 Rp55.500
22 09139-05061-000 SCREW (5X16) 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
