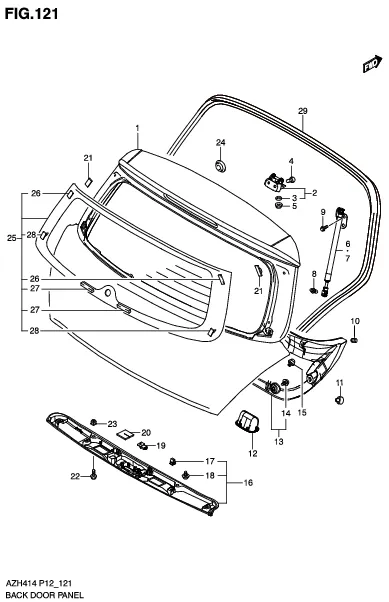

FIG.121 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-58M02-000 SUB: 69100-58M00-000	PANEL ASSY, BACK DOOR	1	Rp3.378.500
2	69510-64LA2-000 SUB: 69510-64LA0-000	HINGE, BACK DOOR	2	Rp206.500
3	69571M76G00-000	•PACKING, HINGE	2	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M74L00-000	BALANCER, BACK DOOR RH	1	Rp294.000
7	81860M74L00-000	BALANCER, BACK DOOR LH	1	Rp294.000
8	81871-79J01-000 SUB: 81871M83K01-000	BALLSTUD, BACK DOOR BALANCER	2	Rp71.000
9	09113-08002-000	BOLT (8X12)	4	Rp25.500
10	82683-70K00-000	CUSHION, BACK DOOR SIDE	2	Rp40.000
11	09321-10041-000	CUSHION	2	Rp21.000
12	82841-82G02-000 SUB: 82841B82G02N000	HANDLE, BACK DOOR INNER	1	Rp7.000
13	83770-68L00-5PK	TRIM, BACK DOOR (BLACK)	1	Rp694.500
14	09409-10327-000 SUB: 09409M10312-000	•CLIP	4	Rp5.000
15	09409-07L04-000	CLIP	6	Rp27.000
16-1	83940-68L40-000 SUB: 83940-68L10-000	GARNISH, BACK DOOR LOWERGL	1	Rp395.000	GL
16-2	83940-68L50-000 SUB: 83940-68L20-000	GARNISH, BACK DOOR LOWERGLX	1	Rp528.000	GLX
17	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
18	09409-10327-000 SUB: 09409M10312-000	•CLIP	4	Rp5.000
19	83944-68L00-000	HOLDER, BACK DOOR SWITCH GLX	1	Rp55.500	GLX
20	83945-68L00-000	SEAL, BACK DOOR LOWER GARNISH	1	Rp48.500
21	84515-65D00-000	FEMALE, GLASS FASTENER NO.2	2	Rp45.500
22	09132-06022-000	SCREW (6X20)	2	Rp23.000
23	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
24	09250M20031-000 SUB: 09250-20L02-000	CAP (OD:25.8)	1	Rp4.500
25-1	84570-58M01-000 SUB: 84570-58M00-000	GLASS, BACK DOOR WINDOW GLX	1	Rp2.913.000	GLX
25-2	84570-58M11-000 SUB: 84570-58M10-000	GLASS, BACK DOOR WINDOWGL	1	Rp2.751.500	GL
26	84513-76F00-000	•MALE, GLASS FASTENER NO.2	2	Rp38.500
27	84617-76F00-000	•SPACER	2	Rp45.000
28	84575-71L00-000	•CLIP, GLASS FASTNER	2	Rp99.000
29	84681-58M01-000 SUB: 84681-58M00-000	WEATHERSTRIP, DOOR OPENING	1	Rp433.500
