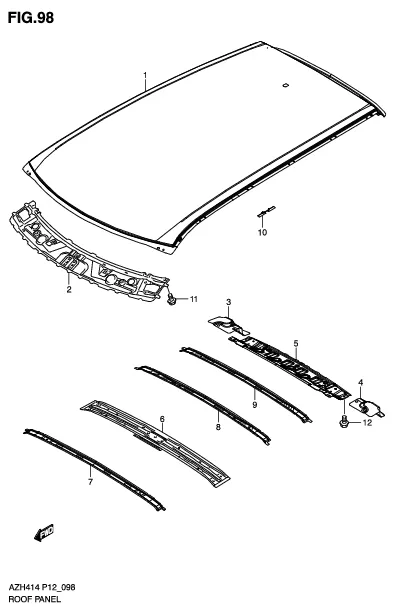

FIG.98 ROOF PANEL

FIG.98 ROOF PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65111-74L00-000	PANEL, ROOF	1	Rp4.886.500
2	65121-58M00-000	RAIL, ROOF FRONT INNER	1	Rp471.000
3	65132-74L00-000	REINF, ROOF REAR SIDE RH	1	Rp33.500
4	65133-74L00-000	REINF, ROOF REAR SIDE LH	1	Rp33.500
5	65140-74L00-000	REINF, BACK DOOR HINGE	1	Rp476.000
6	65150-74L00-000	MEMBER, ROOF PANEL CTR	1	Rp750.500
7	65161-74L00-000	MEMBER, ROOF PANEL CTR NO.2	1	Rp235.000
8	65162-74L00-000	MEMBER, ROOF PANEL CTR NO.3	1	Rp235.000
9	65163-74L00-000	MEMBER, ROOF PANEL CTR NO.4	1	Rp195.500
10	65171-63J00-000	BRACKET, ROOF CARRIER	4	Rp114.500
11	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
12	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
