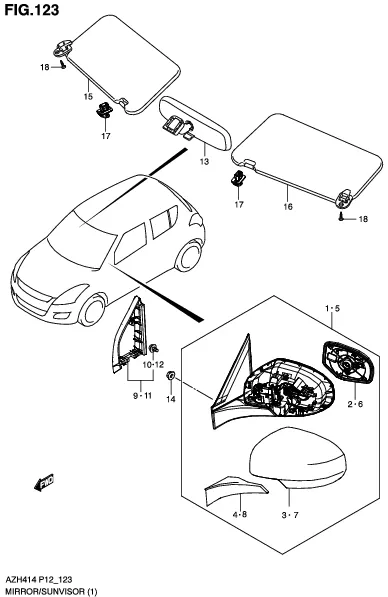

FIG.123 MIRROR/SUNVISOR (GL)

No	No. Part	Description	Qty	Price Per Pcs
1-2	84701-58M00-ZTS	MIRROR ASSY, OUT REAR VIEW RH (SILVER)	1	Rp1.970.000
1-3	84701-58M00-ZTT	MIRROR ASSY, OUT REAR VIEW RH (BLACK)	1	Rp1.970.000
1-4	84701-58M00-ZTU	MIRROR ASSY, OUT REAR VIEW RH (GRAY)	1	Rp1.988.500
1-5	84701-58M00-ZTV	MIRROR ASSY, OUT REAR VIEW RH (BLUE)	1	Rp1.988.500
1-6	84701-58M00-ZTW	MIRROR ASSY, OUT REAR VIEW RH (RED)	1	Rp2.192.500
1-7	84701-58M00-ZTZ	MIRROR ASSY, OUT REAR VIEW RH (COPPER)	1	Rp2.171.500
1-1	84701-58M00-ZTR	MIRROR ASSY, OUT REAR VIEW RH (WHITE)	1	Rp1.751.000
2	84730-77M00-000 SUB: 84730B58M00N000	•GLASS, OUT REAR VIEW RH	1	Rp153.000
3-5	84718-58M00-ZTV	•COVER, MIRROR VISOR RH (BLUE)	1	Rp376.500
3-7	84718-58M00-ZTZ	•COVER, MIRROR VISOR RH (COPPER)	1	Rp396.000
3-6	84718-58M00-ZTW	•COVER, MIRROR VISOR RH (RED)	1	Rp376.500
3-4	84718-58M00-ZTU	•COVER, MIRROR VISOR RH (GRAY)	1	Rp376.500
3-3	84718-58M00-ZTT	•COVER, MIRROR VISOR RH (BLACK)	1	Rp376.500
3-2	84718-58M00-ZTS	•COVER, MIRROR VISOR RH (SILVER)	1	Rp372.000
3-1	84718-58M00-ZTR	•COVER, MIRROR VISOR RH(WHITE)	1	Rp372.000
4-1	84719-58M00-ZTR	•COVER, MIRROR BASE RH (WHITE)	1	Rp253.000
4-2	84719-58M00-ZTS	•COVER, MIRROR BASE RH (SILVER)	1	Rp253.000
4-3	84719-58M00-ZTT	•COVER, MIRROR BASE RH (BLACK)	1	Rp253.000
4-4	84719-58M00-ZTU	•COVER, MIRROR BASE RH (GRAY)	1	Rp253.000
4-5	84719-58M00-ZTV	•COVER, MIRROR BASE RH (BLUE)	1	Rp253.000
4-6	84719-58M00-ZTW	•COVER, MIRROR BASE RH (RED)	1	Rp253.000
4-7	84719-58M00-ZTZ	•COVER, MIRROR BASE RH (COPPER)	1	Rp268.000
5-6	84702-58M00-ZTW	MIRROR ASSY, OUT REAR VIEW LH (RED)	1	Rp2.192.500
5-7	84702-58M00-ZTZ	MIRROR ASSY, OUT REAR VIEW LH (COPPER)	1	Rp2.171.500
5-5	84702-58M00-ZTV	MIRROR ASSY, OUT REAR VIEW LH (BLUE)	1	Rp1.988.500
5-3	84702-58M00-ZTT	MIRROR ASSY, OUT REAR VIEW LH (BLACK)	1	Rp1.970.000
5-2	84702-58M00-ZTS	MIRROR ASSY, OUT REAR VIEW LH (SILVER)	1	Rp1.970.000
5-1	84702-58M00-ZTR	MIRROR ASSY, OUT REAR VIEW LH (WHITE)	1	Rp1.751.000
5-4	84702-58M00-ZTU	MIRROR ASSY, OUT REAR VIEW LH (GRAY)	1	Rp1.988.500
6	84740-58M00-000 SUB: 84740B58M00N000	•GLASS, OUT REAR VIEW LH	1	Rp153.000
7-1	84728-58M00-ZTR	•COVER, MIRROR VISOR LH (WHITE)	1	Rp372.000
7-2	84728-58M00-ZTS	•COVER, MIRROR VISOR LH(SILVER)	1	Rp372.000
7-3	84728-58M00-ZTT	•COVER, MIRROR VISOR LH (BLACK)	1	Rp376.500
7-4	84728-58M00-ZTU	•COVER, MIRROR VISOR LH (GRAY)	1	Rp376.500
7-5	84728-58M00-ZTV	•COVER, MIRROR VISOR LH (BLUE)	1	Rp376.500
7-6	84728-58M00-ZTW	•COVER, MIRROR VISOR LH (RED)	1	Rp376.500
7-7	84728-58M00-ZTZ	•COVER, MIRROR VISOR LH (COPPER)	1	Rp396.000
8-3	84729-58M00-ZTT	•COVER, MIRROR BASE LH (BLACK)	1	Rp253.000
8-7	84729-58M00-ZTZ	•COVER, MIRROR BASE LH (COPPER)	1	Rp268.000
8-6	84729-58M00-ZTW	•COVER, MIRROR BASE LH (RED)	1	Rp253.000
8-5	84729-58M00-ZTV	•COVER, MIRROR BASE LH (BLUE)	1	Rp253.000
8-4	84729-58M00-ZTU	•COVER, MIRROR BASE LH (GRAY)	1	Rp253.000
8-2	84729-58M00-ZTS	•COVER, MIRROR BASE LH(SILVER)	1	Rp253.000
8-1	84729-58M00-ZTR	•COVER, MIRROR BASE LH (WHITE)	1	Rp253.000
9	84750-71L00-5PK	GARNISH, SASH BRACKET INNER RH (BLACK)	1	Rp154.000
10	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
11	84790-71L00-5PK	GARNISH, SASH BRACKET INNER LH (BLACK)	1	Rp154.000
12	09409-10327-000 SUB: 09409M10312-000	•CLIP	1	Rp5.000
13	84703-65J00-000 SUB: 84703B65J00N000	MIRROR ASSY, INSIDE REAR VIEW	1	Rp334.000
14	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
15	84801-58M00-6GS	SUNVISOR ASSY, RH (GRAY)	1	Rp267.000
16	84802-58M00-6GS	SUNVISOR ASSY, LH (GRAY)	1	Rp267.000
17	84851-85K00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp55.500
18	09139-05061-000	SCREW (5X16)	2	Rp15.000
