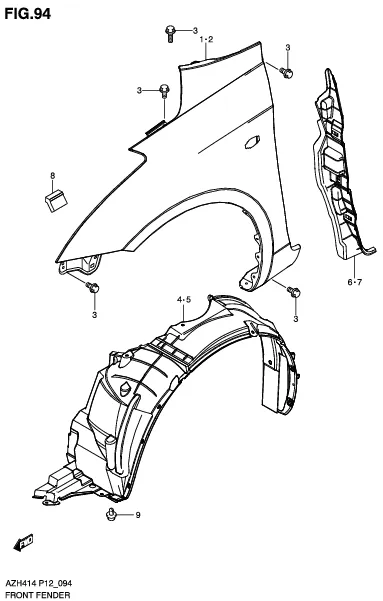

FIG.94 FRONT FENDER

FIG.94 FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	57611-58MA0-000 SUB: 57611-74L00-000	PANEL, FRONT FENDER RHGL	1	Rp1.690.000	GL
1-2	57611-58MB0-000 SUB: 57611-74L10-000	PANEL, FRONT FENDER RHGLX	1	Rp2.118.000	GLX
2-1	57711-58MA0-000 SUB: 57711-74L00-000	PANEL, FRONT FENDER LHGL	1	Rp1.690.000	GL
2-2	57711-58MB0-000 SUB: 57711-74L10-000	PANEL, FRONT FENDER LH GLX	1	Rp2.118.000	GLX
3	DISCONTINUE SUB: 01550B0612AN000	BOLT	10	-
4	72321-58M00-000	LINING, FRONT FENDER RH	1	Rp392.000
5	72322-58M00-000	LINING, FRONT FENDER LH	1	Rp392.000
6	72351-74L00-000	COVER, FRONT FENDER RH	1	Rp262.000
7	72352-74L00-000	COVER, FRONT FENDER LH	1	Rp262.000
8	72377-71L00-000 SUB: 72377B71L00N000	CUSHION, FR FENDER	4	Rp11.500
9	09409-07L04-000	CLIP	24	Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
